| Prod Model: |
Y3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R410A |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
UR |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

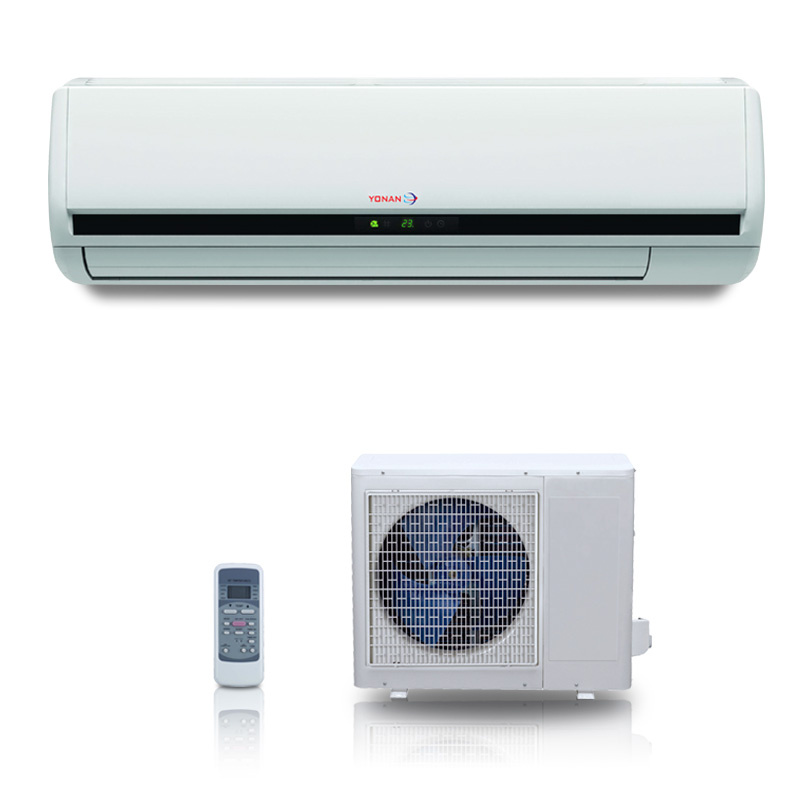

Split Wall-Mounted Type Air Conditioner ERP3.8 Inverter Air Conditioner
Feature
1) Streamlined design
2) Anion generator, thorough dust elimination
3) Multi-layer air filter and TI02 cleaning apparatus,
4) Keeps indoor air fresh
5) LED motion display, easy to check its run
6) Air flows in four directions by adjusting air duct louvers
7) Humanized control way, combination with sound signal
8) Electric lock function
9) Big airflow, four way airflow
10) High cooling/ heating rate, energy-saving
11) Low noise fan motor
12) Low temperature start, electricity heating
13) English LCD remote control, compact and handy
14) Two control ways: Manual control and remote control
Specification
| SEER | W/W | 5.5 |
| Energy Efficiency Class |
| A |
| SCOP | W/W | 3.8 |
| Energy Efficiency Class |
| A |
| Power Supply | Ph-V-Hz | 220~240V~50Hz, 1 Ph |
| Cooling | Capacity | Btu/h | 9000 |
| Input | W | 810 |
| Rated Current | A | 3.5 |
| EER | W/W | 3.25 |
| Heating | Capacity | Btu/h | 9000 |
| Input | W | 720 |
| Rated Current | A | 3.1 |
| COP | W/W | 3.66 |
| Moisture Removal | L/h | 1 |
| Indoor Air flow(Hi/Mi/Lo) | m3/h | 400/330/270 |
| Indoor Sound Power Level(Hi) | dB(A) | 55 |
| Indoor Unit | Dimension(W*D*H) | mm | 710*190*250 |
| Packing(W*D*H) | mm | 770*265*318 |
| Net / Gross Weight | kg | 6.5 / 8.5 |
| Outdoor Air Flow | m3/h | 1800 |
| Outdoor Noise Level | dB(A) | 63 |
| Outdoor Unit | Dimension(W*D*H) | mm | 780*250*540 |
| Packing(W*D*H) | mm | 910*335*585 |
| Net / Gross Weight | kg | 29.5 / 31.5 |
| Application Area | m2 | 13-22 |
