| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Capacity: |
9000BTU~24000BTU |
| Type: |
Split Wall Mounted Air Conditioner |
Product Description

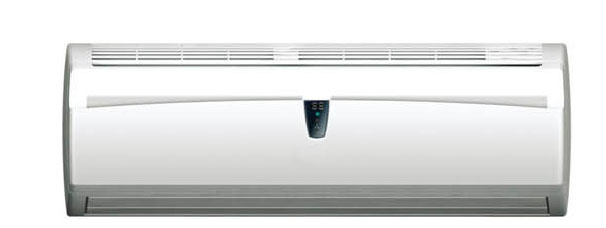

Split Wall Mounted Air Conditioner(C type)
Feature:
Quiet design;
Remote control;
Anti-Frost system;
Style and deluxe design;
Use multi-fold evaporator;
Protection against high temperature.
| Technical Specification of Split Wall Air Conditioner |
| ModeL | KF(R)-25GW | KF(R)-35GW | KF(R)-50GW | KF(R)-70GW | KF(R)-90GW | KF(R)-1000GW |
| Power supply | 220V/50 60Hz | 220V/50 60Hz | 220V/50 60Hz | 220V/50 60Hz | 220V/50 60Hz | 220V/50 60Hz |
| Refrigerant | R22R407cR410a | R22R407cR410a | R22R407cR410a | R22R407cR410a | R22R407cR410a | R22R407cR410a |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 24000 | 31500 | 35000 |
| | W | 2500 | 3500 | 5000 | 7000 | 900 | 10000 |
| Heating | Btu/h | 9000 | 12000 | 18000 | 24000 | 31500 | 35000 |
| | W | 2500 | 3500 | 5000 | 7000 | 900 | 10000 |
| Rated input | Cooling | w | 900 | 1250 | 1900 | 2500 | 3400 | 4000 |
| Heating | w | 800 | 1100 | 1850 | 2400 | 3160 | 4100 |
| Rated current | Cooling | A | 4.1 | 5.7 | 8.9 | 11.4 | 15.4 | 18.1 |
| Heating | A | 3.6 | 5 | 8.4 | 10.9 | 14.3 | 18.6 |
| Noise | Indoor | dB(A) | ≤42 | ≤42 | ≤52 | ≤52 | ≤58 | ≤55 |
| Outdoor | dB(A) | ≤53 | ≤53 | ≤60 | ≤60 | ≤62 | ≤65 |
| Air circulation | m3/h | 400 | 450 | 550 | 780 | 1250 | 1400 |
| Moisture removal | L/h | 0.9 | 1.4 | 1.9 | 2.1 | 3.3 | 3.5 |
| Dimensions | Net(mm) | Indoor | 705X180X270 | 800X180X270 | 890X185X290 | 960X200X288 | 1230X235X330 | 1300X235X340 |
| | Outdoor | 600X235X506 | 670X255X540 | 740X255X540 | 845X290X600 | 1020X425X850 | 980X425X1250 |
| Shipping(mm) | Indoor | 770X240X335 | 860X240X335 | 950X245X350 | 1030X275X360 | 1275X285X370 | 1390X318X403 |
| | Outdoor | 725X325X575 | 795X345X615 | 865X360X610 | 975X385X670 | 1085X487X924 | 1090X470X1290 |
| Weight | Net(Kg) | Indoor | 6 | 8 | 11 | 12 | 18 | 18 |
| | Outdoor | 23 | 27 | 37 | 43 | 78 | 95 |
| Shipping(mm) | Indoor | 8 | 10 | 13 | 14 | 20 | 20 |
| | Outdoor | 28 | 32 | 43 | 50 | 81 | 105 |
| Loading Qty | 20/40/40HQ | Sets | 135/285/340 | 110/220/280 | 95/190/220 | 70/140/180 | 45/90/96 | 25/52/52 |
Always Group Co., Ltd., located in Nanjing, Jiangsu, China, is group company consist of several sub factories focusing on different products and business ranges. We are focus on providing PV system integration service in China for industrial and residential applications. We are also a value-added global reseller for SMA inverters by providing sales and technical advisory for end market across countries. We also engage ourself in in designing and manufacturing various kinds of home appliances as well as new products fit for the market. Our main product lines are:
1.1) Providing SI (system integration) service for roof-top PV projects, especially for industrial and residential applications. 2) Providing stand-alone solar power system for specific applications, such as solar electricity for rural areas, solar emergency supply, hybrid power systems and back-up systems. 3) Developing PV monitoring software for small PV projects and large-scale PV plants, as well as delivering customization for different PV applications.
2. White home appliance (Air conditioners, Refrigerators, Chest Freezers, Ice machines, Showcases, Supermarket Freezer/Showcase/Cabinet ), most of them are concerning on cooling and refrigeration technology.
Welcome to contact us for more information!
