| Prod Model: |
DAO-11HAS |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Western Europe |
| Compressosanyor Type: |
11.52 |
| Cooling Nominal Capacity: |
2.67 |
| Cop: |
10.29 |
| Eer: |
3.55 |
| Max Leaving Water Temperatruee: |
58 |
| Compressor Type: |
Scroll |
| Compressor Brand: |
SANYO |
| Packing (Mm): |
1100*1105*420 |
| G. W. (Kg): |
103 |
| Noise: |
51 dB(a) |
| Water Storage Mode: |
Instant Heating Type |
| Capacity: |
50L |
| Pressure: |
Pressurized |
| Bearing Or Not: |
Closed |
| Control Mode: |
Digital Display |
| Interior Material: |
Stainless Steel |
| Housing Material: |
Stainless Steel |
| Usage: |
Bathroom |
| Certification: |
CE |
Product Description

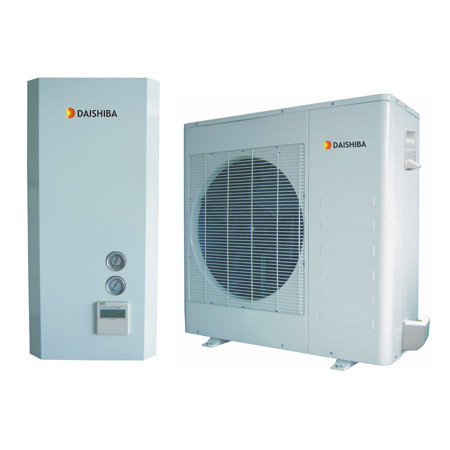

Model: DAO-11HAS
Residential Heat Pump
Product Description:
Heating capacity: 11.52kW COP: 3.55
Cooling capacity: 10.29kW EER: 2.67
Dimensions (HxWxD): Indoor: 1047x508x406mm outdoor: 960x990x360mm
All hydraulic parts are located within the indoor unit. Water pump, expansion vessel, buffer tank and safety equipment have already been fitted inside the indoor unit. The heat is transferred to the indoor unit by cooling agent pipes, the additional advantage is that the pipes can never be freezed.
Total solution for home and light commercial use:
1) Domestic hot water all year round
2) Space heating in winter
3) Space cooling in summer
Flexible configuration
Daishiba heat pump can be installed in both new and renewal applications. If you already have the heating system there is no need to change it. Daishiba heat pump could be compatible with:
1) Floor heating and cooling
2) Fan-coils
3) Mixed installation for floor heating and fan-coils
4) Standard low temperature radiators
5) Thermal solar energy
Daishiba Luxury air source residential heat pump provides energy-efficient space heating, cooling and domestic hot water for residential and small commercial application. Using free renewable energy from the air the units are highly efficient with low running costs, low carbon emission and are able to be integrated with energy systems such as solar heater and boiler.
| Luxury split air to water heat pump | DAO-11HAS | R410A, 220V, 50Hz, 1ph | 11 Kw |
| DAO-14HAS | R410A, 220V, 50Hz, 1ph | 14 Kw |
| DAO-16HAS/3 | R410A, 380V, 50Hz, 3ph | 16 Kw |
