Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Angle: |
45 Degree |
Outer Tank: |
Color Coated Sheet |
Vacuum Tubes: |
High Borosilicate Glass |
Inner Tank: |
Sus304-2b Stainless Steel |
Inner Tank Thickness: |
1.2-2.0mm |
Outer Tank Thickness: |
0.4mm |
Frame: |
Aluminum Alloy |
Capacity: |
100-500L |
Collector: |
Vacuum Tubes |
Insulation Layer: |
50mm |
Structure: |
Compact Type |
Pressure: |
Pressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Certification: |
CE, SRCC, ISO, Solar Key Mark |
Product Description

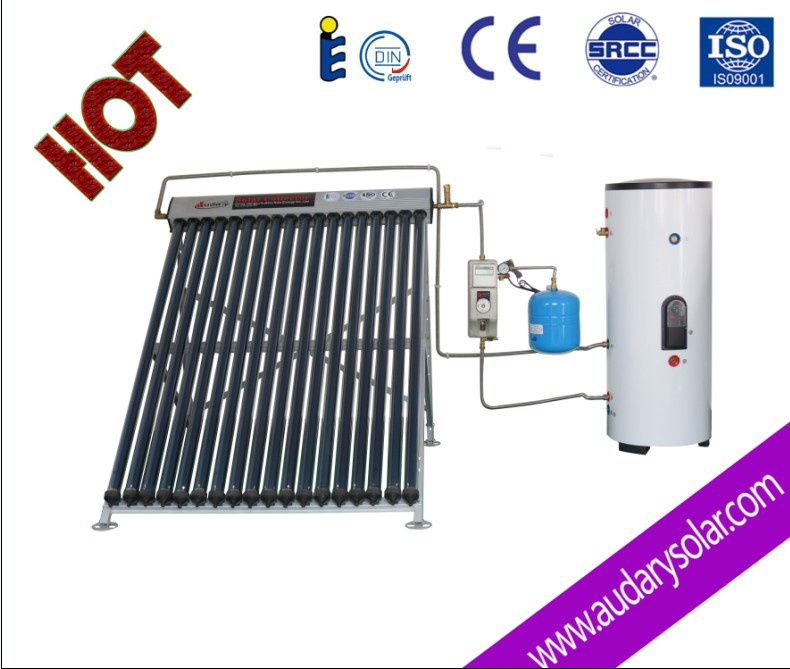

Details product description of new style split pressurized solar water heater:
Tested and certified as Solar keymark European standard, high efficient, stable performance, It is widely used in hot water for family bathing and washing.
with CE, ISO, SRCC and Solar Keymark certificates
The pipeline is made of all the red copper and conducted by heat transfer medium liquid. Water
Can't flow in vacuum Tubes and operated when confined. The crust uses aluminum-alloy and mould material of high strength with air flow design. It is furnished in good style.
Working principle:
It used with heat preservation water tank, solar power workstation and the pipe. The solar collector is consisted of super conducting vacuum heat collecting tube and header, so it's more than 94%. In the sunny days of spring or autumn, each collecting tube could make the water up to 90 degrees centigrade only in 2.5 hours
Model |
RB-58/1800-12 |
RB-58/1800-15 |
RB-58/1800-18 |
RB-58/1800-20 |
RB-58/1800-24 |
RB-58/1800-30 |
Weight for
Manifold (KG) |
6kgs |
8kgs |
9kgs |
10kgs |
12kgs |
15kgs |
Packing Size
for Manifold |
1120*130*150 |
1340*130*150 |
1580*130*150 |
1740*130*150 |
2060*170*190 |
2540*130*150 |
Weight for
Heat pipe (KG) |
31kgs |
38kgs |
48kgs |
53kgs |
62kgs |
79kgs |
Weight for
Frame (KG) |
8kgs |
8kgs |
8kgs |
8kgs |
12kgs |
13kgs |
Packing Size
for Frame |
2040*140
*140 |
2040*140
*140 |
2040*140
*140 |
2040*140
*140 |
2080*140
*140 |
2560*140
*140 |
Weight of the
Collector(KG) |
45kgs |
55kgs |
65kgs |
71kgs |
86kgs |
107kgs |
Size of the
Collector(mm) |
2000*1010*200 |
2000*1250*200 |
2000*1490*200 |
2000*1650
*200 |
2000*1970
*200 |
2000*2450
*200 |
Insulation |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
Rock Wool |
Absorbing Area (square meter) |
1.0152 |
1.269 |
1.5228 |
1.692 |
2.0304 |
2.538 |
Max.Operating Pressure(Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Max.Title
Angle |
60 |
60 |
60 |
60 |
60 |
60 |
Min.Title
Angle |
30 |
30 |
30 |
30 |
30 |
30 |
Hailstone
Resistance |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
≤Φ25mm |
Wind
Resistance |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
≤30m/s |
Snow load |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
470mm thick
snow on record |
Note: The air vent and the expansion tank are needed to prevent the pressure drop. |
