| Prod Model: |
SSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circulation Type: |
Indirect / Closed Loop (Active) |
| Connection Type: |
Split |
| Installation: |
Free Standing/Wall Mounted |
| Volume Of Water Tank: |
100-1000L |
| Water Tank Insulation Layer: |
Polyurethane Foaming |
| Collector Vacuum Tube: |
Heat Pipe Inside,Antifreezing |
| Collector Frame Material: |
Aluminum Alloy |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
Solar Keymark |
| Max. Capacity: |
1000L |
Product Description

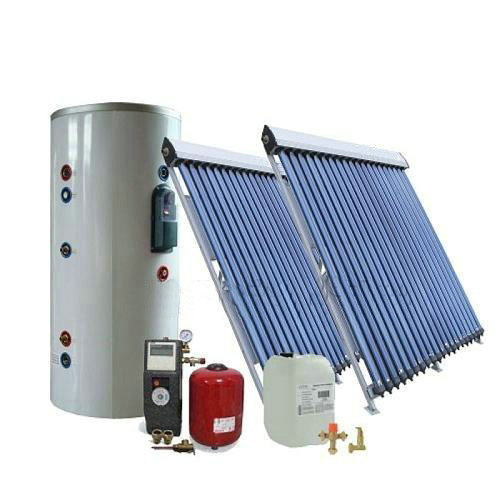

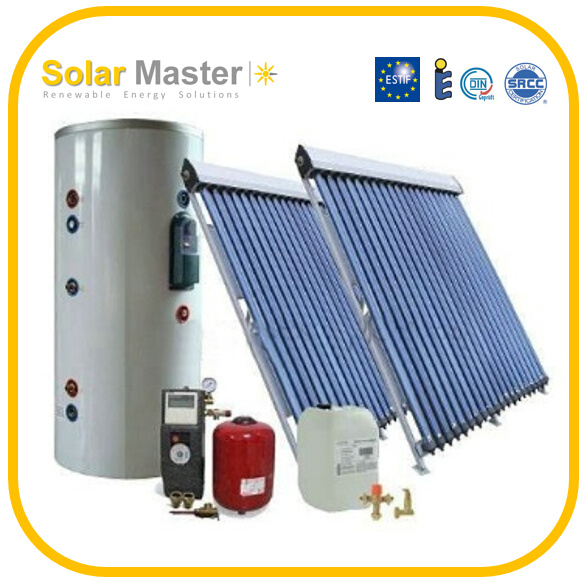

Split Pressurized Solar Water Heater
SolarMaster split pressurized solar water heater which is speciall designed for the villa. The split means that the collector separates from water storage tank. Collector maybe installed either on the roof or wall while water tank may be installed at any place in a villa flexible. Collector harmonizes with villa's outlook and maintains villa's outlook beauty.
Working Principle:
The collector absorbs solar energy and transmits it to the water tank through circulation. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
Feature:
1)Module design, arbitrary combination, harmony with the building perfectly;
2)Intelligent control and automatic operation
3)Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezingfunction, the system can work even at - 40°C
4)Multifunction: Bathing, washing, domestic heating etc
5)Work at anytime and enjoyable
| Length of Glass Tubes | 1800mm |
| Dia of Glass Tubes | 58mm |
| Thickness of Glass Tubes | 1.6mm |
| Heat Pipe | Red copper TU1; Transfer Power >=150W; Working Pressure: 4Mpa; Welding Pressure: 4Mpa; |
| Bracket | Aluminum Alloy, Thickness: 2.00mm |
| System Volume | 100L-1000L |
| Outer Tank | Color Steel Plate , Thickness: 0.6mm |
| Inner Tank | SUS304-2B, Thickness: 1.5mm; Working Pressure: 6kgs; Test Pressure: 12kgs |
| Working Station | SR961/962 |
| Expansion Tank | VAREM from Italy |
