| Prod Model: |
SFCY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Vacuum Tube: |
58mm X 1.8m |
| Material: |
High Efficient Super Heat Pipe |
| Collector Manifold: |
Aluminum Alloy Casing |
| Inner Tank: |
SUS304 Pressurized Storage Tank |
| Outer Tank: |
PVDF, 0.45mm |
| Circulation System: |
Double Pipes Self Filling Working Station |
| Controller: |
Temperature Differential and Timing Circulation |
| Expansion Tank: |
20L |
| Bracket: |
2.0mm Thickness Aluminum Alloy |
| Assistant Function: |
Electric Heater or Gas Boiler |
| Pressure: |
Pressurized |
| Structure: |
Separate Type |
| Interior Material: |
Stainless Steel |
| Certification: |
En12975, Solar Keymark, Bid, SRCC, SABS |
| Collector Components: |
Copper Heat Pipe with Vacuum Tube |
Product Description

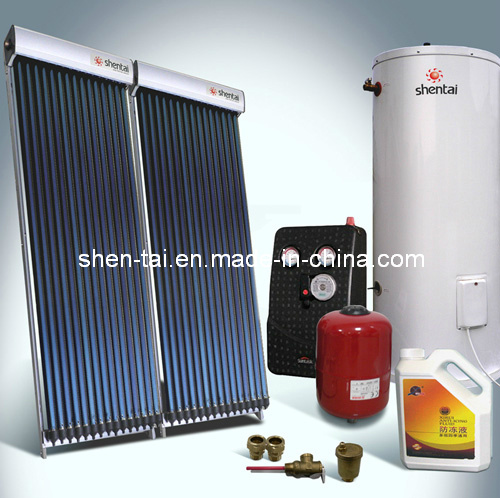

Split Solar Water Heater System SFCY-500-60
Suntask split pressurized solar water heater is speciall designed for the villa. The split means that the collectorseparates from water storage tank. Collector maybe installed either on the roof or wall while water tank may be installed at any place in a villa flexible. Collector harmonizes with villa's outlook and maintains villa's outlook beauty.
SPECIFICATIONS
1. The whole system is mainly combined by pressurized collector, pressurized storage tank, solar working stations, controller.
2. Pressure: 6 Bar
3. Daily efficiency: ≥ 55% (≥ 42% in winter)
4. Heat preservation: 72h - 80h
5. Electric heater: 1.5Kw-3Kw
6. Heat Pipe: Anti-freezing > -35 ° C
WORKING PRINCIPLE
The collector absorbs solar energy and transmits it to the water tank through circulation. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
FEATURE
1. Module design, arbitrary combination, harmony with the building perfectly;
2. Intelligent control and automatic operation
3. Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezingfunction
4. Multifunction: Bathing, washing, domestic heating etc;
5. Work at anytime and enjoyable
Solar keymark certificate types:
SCM12-58/1800
SCM15-58/1800
SCM20-58/1800
SR10-58/1800
SR15-58/1800
SR20-58/1800
SR30-58/1800
*************
New Solar Keymark certificate types:
SHC8
SHC9
SHC10
SHC12
SHC14
SHC15
SHC16
SHC18
SHC20
SHC21
SHC22
SHC24
*************
SRCC certificate types:
SR10-58/1800
SR15-58/1800
SR20-58/1800
SR30-58/1800
|
Descripition |
Separate pressurized solar water heaters |
|
Material of out manifold |
0.55mm thickness color steel/ fluorine carbon steel |
|
Material of inner tank |
Food grade 1.2-2.0 mm thickness SUS304 stainless steel |
|
Tank insulating layer |
45mm 45kg/m³ high-density polyurethane foamed |
|
Inlet and outlet hole |
Male G3/4 |
|
Max pressure |
0.6 Mpa |
|
Solar collector tube |
3.3 Borosilicate glass with N/Al coating |
|
Thickness of glass tube |
1.6mm |
|
Vacuum tube tightness |
P≤ 0.005 Pa |
|
Absorption |
as=0.93-0.96(AM1.5) |
|
Emission ratio |
ε h=0.04-0.06(80C± 5C) |
|
Idle sunning property parameters |
Y=220~260m2. C/KW |
|
Average heat loss coefficient |
ULT=0.6~0.7W/(m2. C) |
|
Bracket: |
2.0mm thickness aluminum alloy |
|
Welding: |
Argon arc welding |
|
Fastening pieces: |
Made of stainless steel screw |
