| Prod Model: |
JLF-SP20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Split Pressure Solar Water Heater for Home |
| Main Parts: |
Solar Collector,Water Tank,Work Station |
| Tank Capacity: |
100L,150L,200L,250L,300L,400L,500L,1000L |
| Solar Collector Manifold: |
Aluminum Alloy 2.0mm Outer, Copper Chanel Inner |
| Solar Collector Vacuum Tube Dimensions: |
58mm X 1800mm, Three Target Vacuum Tube |
| Solar Collector Stand/Support/Bracket: |
SUS201 or Aluminum Alloy 1.2mm |
| Solar Inner Water Tank Material: |
SUS304-2b |
| Solar Outer Water Tank Material: |
Galvanized Steel |
| Copper Coil Size: |
12mm, Thickness1.0mm |
| Solar Pump Station: |
Wilo Pump, Controller, Temperature Sensor |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |
Product Description
Split Pressure Solar Water Heater for Home (JLF-SP20)We manufacturer of solar water heater more then 15years in China.Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc. Circulation type: Indirect/ Closed loop (Active)
Collector material: Aluminum alloy

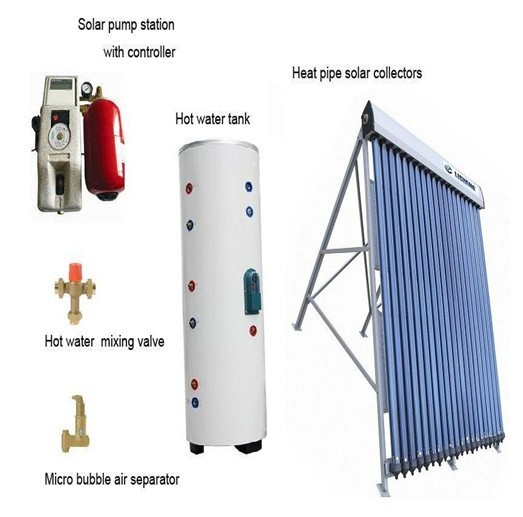

Capacity: 150L to 700L Main Parts: Storage tank + Pump station + Controller + Solar collector
Specifications: 1) Water tank material(inner): Stainless steel SUS 304 2B
2) Manifold casing: Aluminum alloy
3) Manifold: Red copper
4) Collector frame: Aluminum alloy/galvanized steel
5) Vacuum tube: Borosilicate glass 3.3 with tri-element coating
6) Vacuum tube size: 58mm*1.8m / 47mm*1.5m
7) Working station with grundfos pump
8) Working pressure: MAX. 6 bar
Working Principle 1) Vacuum tube is composed of inner and outer glass pipe, inspiratory layer, vacuum space, inspriatory membrane. The surface of inner and outer glass tube is plated with selective absorption layer. The layer absorb the solar energy and turn it into heat energy, aluminum fins pass the heat energy to the heat pipe, the liquid medium in the heat pipe is heated by the heat energy, then turns into the gas medium, the gas medium flows up to the top of the heat pipe (condenser) and transfer the energy to the copper manifold header heat pipe. At the same time the gas medium turns into the liquid when cooled, then flows down. Keep recycling.
Model | Dia of tube | Length of tube | Quantity of tubes | Capacity (L) |
| JLF-1.8M/10P | 58mm | 1800mm | 10 | 100 |
| JLF-1.8M/15P | 58mm | 1800mm | 15 | 150 |
| JLF-1.8M/20P | 58mm | 1800mm | 20 | 200 |
| JLF-1.8M/30P | 58mm | 1800mm | 30 | 300 |
| JLF-1.8M/40P | 58mm | 1800mm | 40 | 400 |
| JLF-1.8M/50P | 58mm | 1800mm | 50 | 500 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
