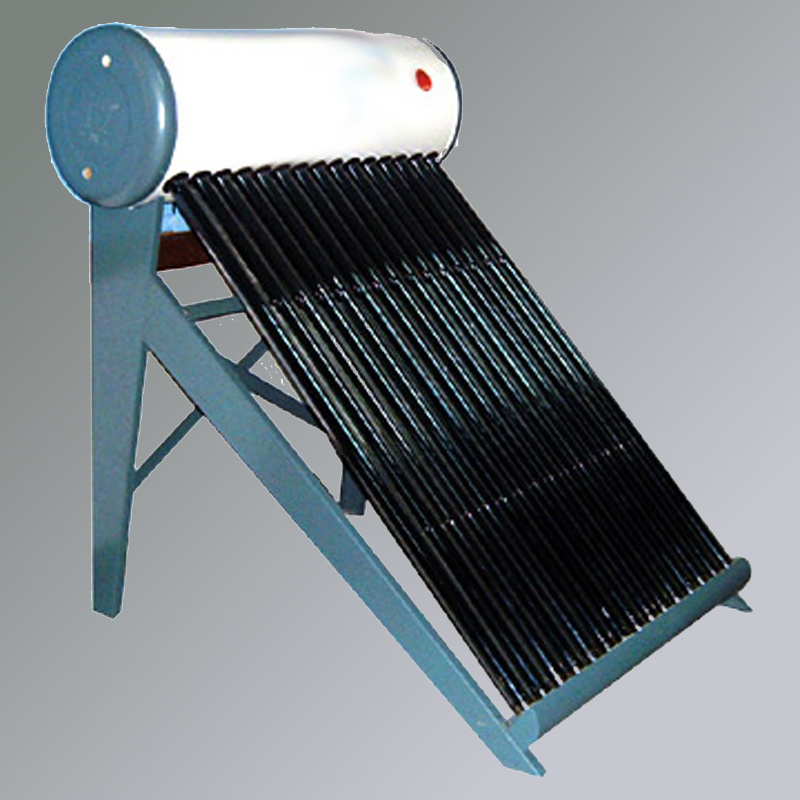

Prod Model: |
RSS-NPC 58/1800-30tube |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inner Tank Material: |
Stainless Steel 3042b Foodgrade |
Outer Tank Material: |
Stailess Steel 304ba |
Outer Tank Dia: |
420mm, 460mm, 470mm, 480mm, 500mm |
Tube Coating: |
Al-N-Al, Heat Pipe, Ss-C/Cu |
Frame Material: |
Stainless Steel |
Structure: |
Compact Type |
Pressure: |
Unpressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Certification: |
CE |
Product Description
1) Inner water tank shell is made of SUS3042B food grade stainless steel plates, welded by argon arc. Water is pure and drinkable
2) Out water tank shell is made of SUS304 2B or SUS304BA
3) Heat insulation of water tanks adopts polyurethane foam and the thickness is 50mm
4) Silicon rings to connect and seal them, leak testing before make insulation
5) The tubes and supports are adjustable. The power bearing is average and can assure the vacuum tubes to use for a long time
6) Whole glass vacuum tubes adopt super hard borax and silica glass
7) Absorption rate: =93%, thermal radiation rate: =6%
8) It resists 25mm hail and the using life can last 15 years
9) Temperature when exposed to sun without water: 250oC, 2.5 hours to boiling point if using single tube
10) If you use electrical appliances to aid heating and to switch off the power supple before bathing
11) Please contact with us if you have more questions
Inner tank material: Stainless Steel 3042B foodgrade
Outer tank material: Stailess Steel 304BA
Outer tank dia 420mm, 460mm, 470mm, 480mm, 500mm
Frame material: Stainless Steel, thickness from1.2mm to 1.5mm
Insulation: 50mm polyurethane total forming with pressure and high density
1. High quality &Factory Price
2. Different sizes and power can be customized
3. Raw material at direct factory price with high quality
4. Discount is offered based on order quantities.
Professtional services:
1. Your company information, products desigh or other confidential information
2. All inquiries related to our products will be replied within 24 hours.
3. OEM is acceptable.
4. Well- trained and experienced sales are ready to service you.
RSS-NPC 47S/1500-420-8 | Φ47mm*1500mm*8 | AL-N-AL | 65L | 140/280/310 | 84.00 |
RSS-NPC 47S/1500-420-15 | Φ47mm*1500mm*15 | AL-N-AL | 120L | 65/136/160 | 113.00 |
RSS-NPC 47S/1500-420-20 | Φ47mm*1500mm*20 | AL-N-AL | 160L | 56/117/138 | 140.00 |
RSS-NPC 47S/1500-420-24 | Φ47mm*1500mm*24 | AL-N-AL | 192L | 48/99/116 | 168.00 |
RSS-NPC 47S/1500-420-30 | Φ47mm*1500mm*30 | AL-N-AL | 240L | 38/80/94 | 210.00 |
| |
RSS-NPC 47S/1800-460-15 | Φ47mm*1800mm*15 | AL-N-AL | 135L | 65/136/160 | 120.00 |
RSS-NPC 47S/1800-460-18 | Φ47mm*1800mm*18 | AL-N-AL | 172L | 58/120/140 | 144.00 |
RSS-NPC 47S/1800-460-20 | Φ47mm*1800mm*20 | AL-N-AL | 180L | 52/107/126 | 160.00 |
RSS-NPC 47S/1800-460-24 | Φ47mm*1800mm*24 | AL-N-AL | 216L | 41/85/100 | 192.00 |
RSS-NPC 47S/1800-460-30 | Φ47mm*1800mm*30 | AL-N-AL | 270L | 35/73/86 | 240.00 |
| |
RSS-NPC 58S/1800-460-15 | Φ58mm*1800mm*15 | AL-N-AL | 160L | 51/106/125 | 143.00 |
RSS-NPC 58S/1800-460-18 | Φ58mm*1800mm*18 | AL-N-AL | 190L | 43/88/104 | 162.00 |
RSS-NPC 58S/1800-460-20 | Φ58mm*1800mm*20 | AL-N-AL | 210L | 37/78/92 | 180.00 |
RSS-NPC 58S/1800-460-24 | Φ58mm*1800mm*24 | AL-N-AL | 252L | 33/70/82 | 216.00 |
RSS-NPC 58S/1800-460-30 | Φ58mm*1800mm*30 | AL-N-AL | 315L | 27/56/66 | 270.00 |
RSS-NPC 58S/1800-460-36 | Φ58mm*1800mm*36 | AL-N-AL | 378L | 20/42/52 | 324.00 |
