| Prod Model: |
K850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Consumption: |
0.4kg~0.85kg |
| Power: |
4~9.5kw |
| Principle: |
Mixing Heat Exchanger |
| Structure Material: |
Metal Material |
| Application: |
Heater |
| Heat Transfer Surface: |
Plate Heat Exchanger |
Product Description

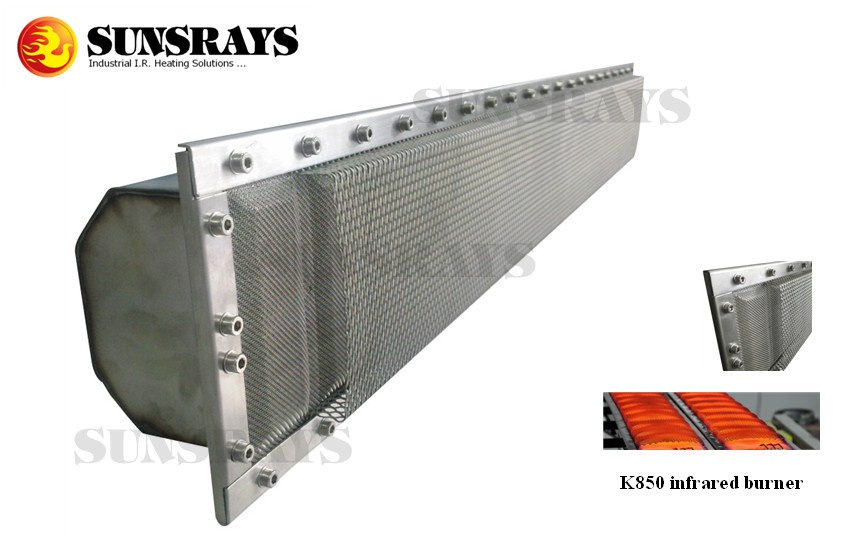

Everywhere where electrical resistance heating is not possible or too extensive but optimum heat distribution at lowest emission is required you can find SUNSRAYS® Infrared gas burners in use. Using high-quality stainless steel for the entire gas burner the whole facility is extremely light and sturdy at the same time.
Available in output ratings of 3500 to 8500 kcal
Natural gas and propane gas supply possible
Version as side or as back operating gas connection
Deliverable with flame control and rapid shut-down which responds if burner extinguishes
Dimension: 580mm x 142mm.
Weight: 4.5kg for K850A, or 5.5kg for K850b.
Gas consumption: 0.4kg~0.85kg
Power: 4~9.5kw
Gas input pressure: 3~50kpa
Features:
Safety: unique patented technology, "the end of the premix", to achieve gas transmission and distribution of air safety. Flameout protection device and tempering can maximize the prevention of accidents in advance.
Efficient: burner surface nickel mesh or 309 stainless steel mesh can ensure that the user is within a radiation wavelength range required has reached the optimum heating effect.
Energy: Artificial accurate plus combustion air to achieve accurate air gas ratio, so as to achieve the lowest power consumption for maximum heat.
Environmental protection: the entire system COX, NOx emissions below international standards related industries.
Wide range of applications: the option of using natural gas, liquefied petroleum gas, artificial gas and other gas.
Accurate control: drive, actuators and butterfly valves, furnace temperature throughout the system, PLC control module, accurate control of combustion.
Beautiful, strong, durable: stainless steel casing, all-metal mesh regenerator, more robust and beautiful and durable.
