Prod Model: |
EW885 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Car DVD GPS: |
Car DVD Player Android4.0 GPS Navi for Corolla |
Application: |
Toyota Corolla |
Screen: |
8 Inch Touch Screen |
System: |
Android 4.0 |
Deliver Time: |
Within 30 Days for One Container |
Shipping Port: |
Guangzhou |
Sample: |
Sample Fee Would Be Return After Place The Order |
Certification: |
SGS |
Video Output: |
Video |
Audio Output: |
L/R Channel |
Voltage: |
12/24V |
Placement: |
Dashboard |
Combination: |
iPod |
Product Description
Product details:

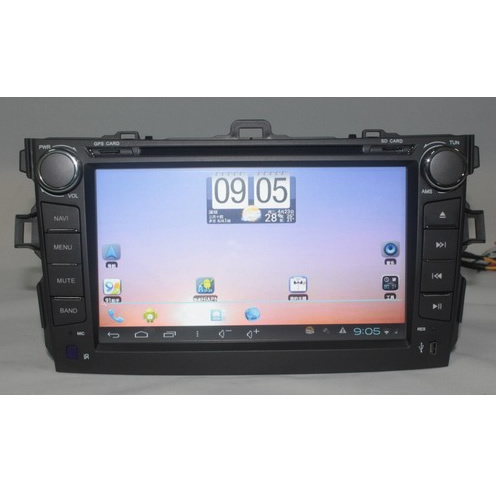

Special Car Stereo DVD Player with Android4.0 GPS Navigation for Toyota Corolla (EW885)
New Android system:
CPU:ARMV6 TCC8925 1200MHZ
Memory:1024M DDR+4096M FLASH
Android system os ver: 4.0
Advantages:
1: high definition display (the same as 776)
2: Boot up faster, just 2 seconds.
3: UI system has many functions,Smart phones can be attached,connect the DVR vehicle traveling data recorder, etc.
4: Better than the ARM system ,more Stabilization, Cheaper than the 776 system DVD.
5: With android 4.0,available to connect the OBDII blue tooth. And the UI system could be customized.
Hardware:
CPU:Intel PXA255 Processor
Main Frequency:533MHZ
SDRAM/FLASH:1GB/128MB
GPS Antenna Frequency:1575.52MHZ
Chipset:SiRF STAR IV
EMS Memory :128MB
Frequency:1.575GHZ
Position Accuracy:10m, 2D RMS 5m, 2D RMS, WAAS enable
Power Spec:DC10-16V, current<600mA
Consumption:4.5W (12V/360mA), normal power consumption 3W (12V/250mA)
Solution:TA123
MCU CPU:Panasonic
operation platform:TA123
Lens:HITACH
Power output IC:ST-7388
Radio IC:6624
Functions:
1.800*480 HD digital TFT. Professional digital image processor makes the detail more modest and elegant
2. 3D operation interface
3.Built-in 4x45W hi-fi amplifier:international professional BBE sound effect processing
to strengthen audio ambience and sound embellishment effects and make music more gentle
4.Build -in AM/FM Stereo Receiver,Support RDS function.
5.Build-in TV
6.Full Function Remote Control
7.USB Port and SD/MMC Card slot For front panel
8.DVB-T/ATSC/ISDB-T/TMC/RMVB,RM Player (optional)
9.Support PIP function
10.DVD,MPEG2/MPEG4,DIVX,VCD,SVCD,CD,MP3,MP4,CD-R/RW And picture playback
11.Play Position memory function/ ignition memory
12.anti-shock housing,advanced electronic shock protection
13.ipod connector for front panel
14.Steering wheel control with Canbus Connector
15.Bluetooth phonebook
16.Change car logo by yourself
