| Prod Model: |
CY-8826 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Video Output: |
2 RCA |
| Audio Output: |
L/R Channel |
| Voltage: |
12/24V |
| Placement: |
Dashboard |
| Combination: |
GPS |
Product Description

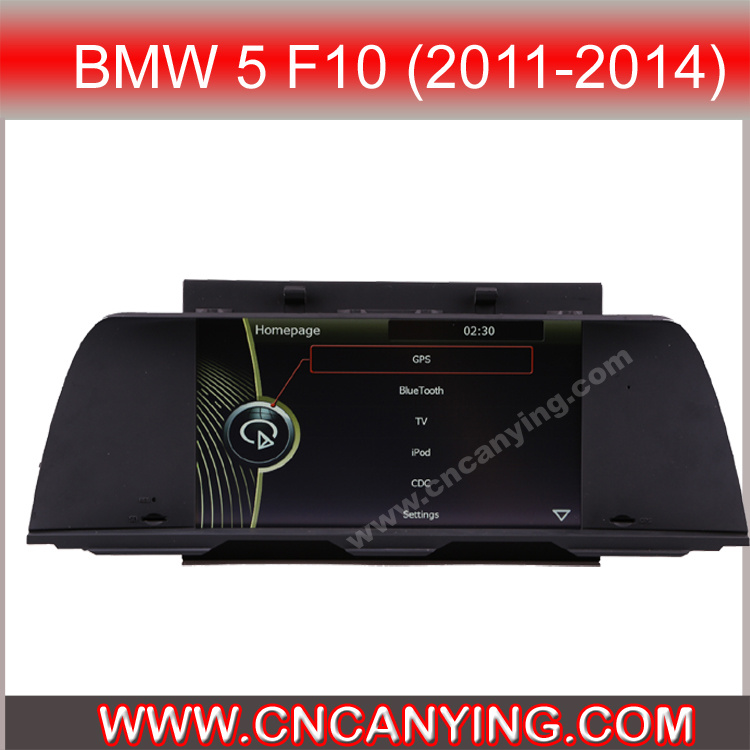

BMW 5 F10 (2011----2014)
Small screen change to big screen:9.5inch screen head unit (do not dismantle origianl CD. without DVD)
(1),Product features:
1,We adopt the latest ARM11 to develop high performance multimedia car dvd with the functions of navigation, audio&video, entertainment and etc.
2,HD video:1080P.
3,RAM 256,Support hard disk 500G and HD map.
4,Support Sanyo 6 disc DVD changer (optional)
5,GPS navigation function:SiRF Prima, CPU: ARM11,800MHZ ,WinCE6.0
6,support original car reverse track(can't support if original car don't have)
7,Support MP5 Multimedia HD video play
8,SD card maximum support:128G
(2),Parameters:
1,DVD player adopt the MTK1389L decoding chip.
2,Support the Bluetooth function, Phone book, A2DP
3,Built-in TDA7703 FM/AM radio module.
4,Bluetooth phone and A2DP function.
5,Built-in 4 X 40W amplifier output.(TDA7388)
6,Two SD slot: GPS navigation map card, multimedia card.
7,Support USB 2.0 high speed OTG, USB1.1 HOST; support the USB SATA hard disk.
8,Support two AV IN (one is front AUX audio and video input, one is rear AUX audio and video input).
9,Two video out output.
10,4.1CH 2Vrms audio output.
11,Support IPOD input (audio).
12,Camera input.
13,Digital television function: CMMB; DVB-T; ATSC; ISDB (optional)
14,RDS function (optional)
15,Support photo browser
16,E-book function
17,Support reversing auxiliary function of original car
18,Support External TV function
19,Support all standard analogy TV
(3),Key parameters:
1,Operating voltage range: DC10.5V~ 16V; Maximum operating current: 10A
2,Operating temperature : -20º~60º
Storage temperature: -30º~70º
3,Standby current: ≤50mA
After power off in 10 minutes: <1mA
4,Shutdown current: <1mA
(4),TWO-Way CAN BUS:Keep the principle of original car steering wheel control system function interlinked with unit(this function can be chose)
1,Backlight adjustment
2,Car/Vehicle speed
3,Driving Computer Information
4,System configuration information
5,Time and date information
6,Steering wheel buttons
7,CDC Playing information
8,CDC Disc Status information
9,Return control information
10,Door information
11,Software Version information
