Prod Model: |
CD-H64 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Speaker Sensitivity: |
128db |
Microphone Size: |
6.0*2.7mm |
Microhone Current: |
100mA |
Impedance: |
2.2k |
Sensitivity: |
-38db@1kHz |
Brand Compaitable: |
All Brand |
Model Number: |
Speaker Microphone CD-H24 |
Speaker Dimension: |
40mm |
Related Power: |
1W |
Function: |
Multimedia |
Wire Material: |
PU |
Microphone: |
With Microphone |
Color: |
Black |
Style: |
Walkie Talkie Speaker |
Type: |
Handheld&Shoulder |
Use: |
All |
Product Description
1. Speaker specification
1)Speaker
Size: 40 mm
Pressure: 128dB
Impedance: 8 Ω
Power: 1 W
2)Microphone:
Dimension: Ø 6.0x2.7mm
Sensitivity: -38dB@1KHz
Impedance: 2.2K
Related Current: 100mA
3)Cable
Coil cable with in 5mm diameter and reinforced 2000D Kevlar
With testing:
1. Elasticity: Free pull 600mm
2. Fatigue: 45times/m, 40000times without short out or disconnection
3. Cable with 5000g hoist for 4hours without short out or disconnection
4) Connector
Life time: 12000times put in and take out
According to radio models, different connectors available.
Main features:
1)Fashion, unique, sturdy plastic housing (2 patent protection);
2) Portable concise, convenience for using, high fidelity;
3) High quality horn and microphone with clear audio communication;
4. )Busy channel which will launch lock;
5)The DTMF code, little errors, compatible to same decoding principle machine;
6) Suitable for patrolman, command center persons, commercial cars and self-driving tourists.
2. Company Profile: Quanzhou Chierda Electronic Telecom Co., Ltd., which is in Quanzhou, Fujian, China. With 20 years development, we have produced, developed & marketed two way radio, walkie talkie, radio transmitter and related accessories. Now we have rich experienced R&D engineers, and skilled technicians and workers!
3. Note:
1) Please contact us at first time for bulk order, Larger discount waits for you.
2) Sample time: If with our logo, within 5 days.
3) OEM serivice is offered, we can design packing box and logo mark as your requirement.
4) Payment term: T/T, Western Union and Paypal.
5) Warranty Information: 12 Month
About us:
We do our best to produce excllent quality products and services. We hope we help you and are glad to become your faithful friends.
Shippment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, and large quantities depend on Customer request.

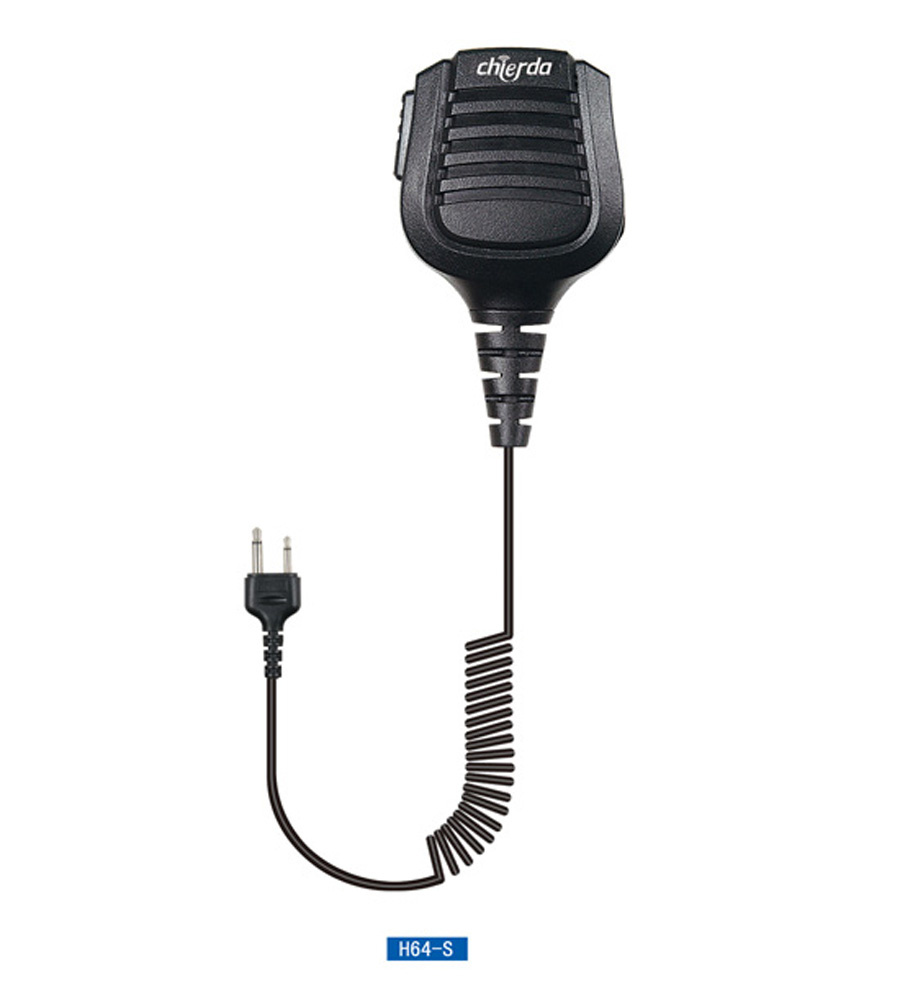

Speaker microphone for interphone two way radio CD-H64
Quanzhou Chierda Electronic Telecom Co., Ltd., the reliable source for professional two-way radio communications. Headquartered in Quanzhou, the homeland of two way radios in China. Since 20 years, we have always produced developed & marketed two way radio and related accessories. Have rich experienced R&D engineers, and skilled technicians and workers! As well as advanced production equipment and accurate/smart inspection & test instrument. We manufacture all the products that we design and sell.
We work with each client to ensure we provide an on-time, cost effective solution that helps your business run more efficiently and ultimately become more profitable. Chierda Communications, "Now You' Re Talkin!
