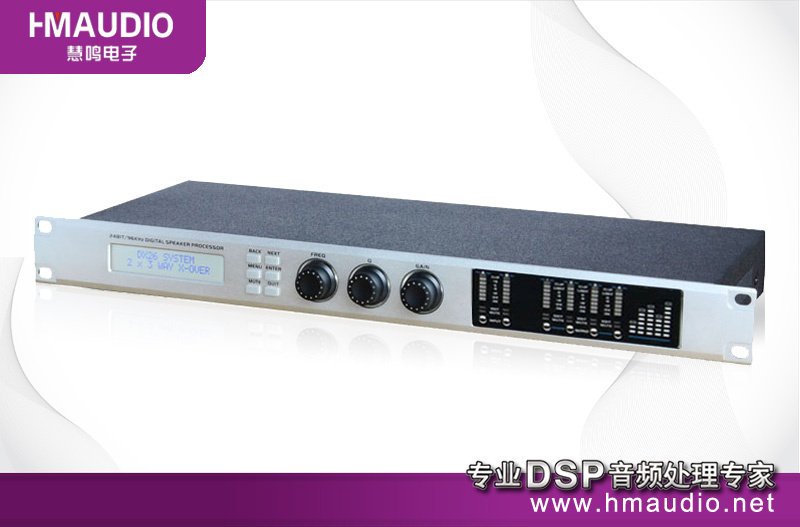

Speaker Management (DX-24)

Prod Model:	DX-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Features

* Input processing section contains gain, mute, noise gate, high-cut, low cut, 8 parametric equalization, phase, delay, etc. 8 processing units
* The output processing section includes sub-frequency, five parameters balance, gain, mute, compressor / limiter, phase, delay, etc. 7 processing units
* Inputs and outputs can be freely between the distribution of matrix
* All parameters balanced frequency, gain and bandwidth adjustable, type option: PEAK, H-SHELVE, L-SHELVE
* All high / low-cut filter, choose the type of divider: Butterworth, Linkwitz-Riley, Bessel, slope The -6dB/oct to -48dB/oct optional. 20Hz-20kHz frequency continuously adjustable
* All the noise gate threshold, start time, recovery time, continuously adjustable
* All compression / limiter threshold, ratio, start-up time, recovery time, continuously adjustable
* All modules have a delay of up to 682ms of delay time
* Any channel can be freely copied between the parameter settings
* 24bit, 48kHz sampling rate, AD / DA conversion, 32-bit DSP chip processing
* Built-in test signal generator, the output mode selectable pink noise, white noise, and 20Hz-20kHz sine wave can be modulators, signal amplitude adjustable
* Equipped with PC operating software, through USB, RS485 or RS232 port for remote real-time control
* Use 2-way balanced inputs, 6 balanced outputs.
