| Prod Model: |
AX-F40A03-B0100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Application: |
Game Player |
| Color: |
Black |
| Type: |
Optical Fiber |
| Certification: |
RoHS |
Product Description

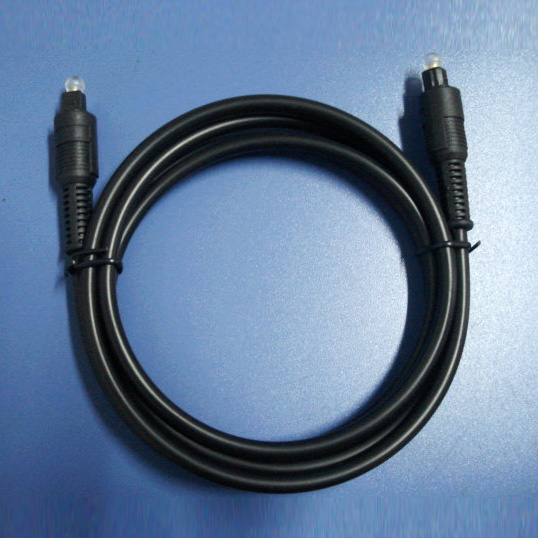

(1. Toslink plug optical fiber cable
(2. Gold plated connector
(3. PVC molding type
(4. OD=4mm
(5. RoHS
Toslink plug optical fiber cable Item No. AX-F40A03- length=1m
Pecifications:
24K Gold plated connectors, Micro convex ends Toslink Male to Male; Precision polished fiber tips for Maximum Signal Transfer (includes tip protectors)
Spring-Loaded Connectors - Spring-loaded connectors ensure accurate signal transfer. Attached Dust-Proof Caps
Fully Molded Contruction with Strain Relief, reduce stress where cable and connetors meet;
Gold-Plated Metal Headshells - These elegant looking gold headshells provide a fabulous look for your professional audio setup.
Gold-plated ferrule prevents corrosion and provides for maximum protection of the Fiber Tip
High-Purity optical grade fibe, Allows to extend optical cable up 300ft;
The Ultra-Flexible PVC JACKET helps prevent cable damage and adds flexibility and durability for years of listening pleasure.
Net Jacket Protection - The sleek net jacket on these cables offers an additional level of protection to help prevent your toslink cables from getting dented, scratched, or damaged.
Using 1mm low-loss core, low-jitter synthetic fiber to dampen vibration, giving you the ultimate listening experience.
Functions:
High-Purity Wide-Band Audio Transmission
Optical cables transfer the signal using light; Immune to electrical noise, thus completely eliminating any chance for RFI, EMI or ground loop interference]
Toslink Digital Audio Cable provides the cleanest possible signal, even at extreme volume levels
Our Toslink cables compatable with following Audio equipments
Sony playstaion 2, xBox, xBox 360, ALESIS;
DVD player, CD player, SACD player, DIVX player, DAT player/recorder, Mini Disc player/recorder, Hard disk driver/recorder, Outboard AD/DA converter, SAT top boxes, cable boxes;
Audio receivers, Dolly Digital DTS Surround sound receiver, Digital receiver, Satallite dish receiver;
Digital signal processor, Digital mixers, Video game consoles, MP3 applications;
Other components use Toslink connectors
|
item |
Parameters |
|
Fiber Diameter |
1MM |
|
Outside Diameter |
4MM |
|
Fiber Material |
PMMA |
|
Application Lighwave |
650nm |
|
Attenuation |
≤ 0.20dB/m |
|
Bend Radius |
5Xcore Diameter |
|
temperture |
-15 - 80 |
Aixin Opto-Electrical Technology Co., Ltd. professionally produces optical toslink, photo link, SPDIF, optic fiber connector, optic fiber jack, data link, toslink and POF cable. All products have no lead, and have passed the evaluation of RoHS certification.
Our 3 major lines
1. Toslink Series (used in DVD, P-DVD, DVB, MP3, and MP4 players and set top boxes), including DLT(R)1111, DLT(R)1120, DLT(R)1130, DLT(R)1150, DLT(R)1160, DLT(R)1180, DLT(R)2140 and DLT(R)2150.
2. Optical Mini Jack Series (used in Audio Equipment, Notebooks, and LCD TVs), including DLT(R)11M1, DLT(R)13M1 and DLT(R)11M3.
3. Optical and Coaxial Series (used in PC and Audio Equipment), including AVG-5, AVG-2 and TX6112 (180 degree, use for LCD TVs).
Our products are used in DVD players, P-DVD players, DVB players, PC, audio equipment, notebooks, set top boxes, mobile phones, MP3 players, MP4 players, and games/toys. We hope you can be our best honorable customer, and welcome you to contact us.
