| Prod Model: |
SPB series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
8mm 10mm 16mm 20mm |
Product Description
Main feature:
Price lower than most factory
High brightness waterproof unti UV

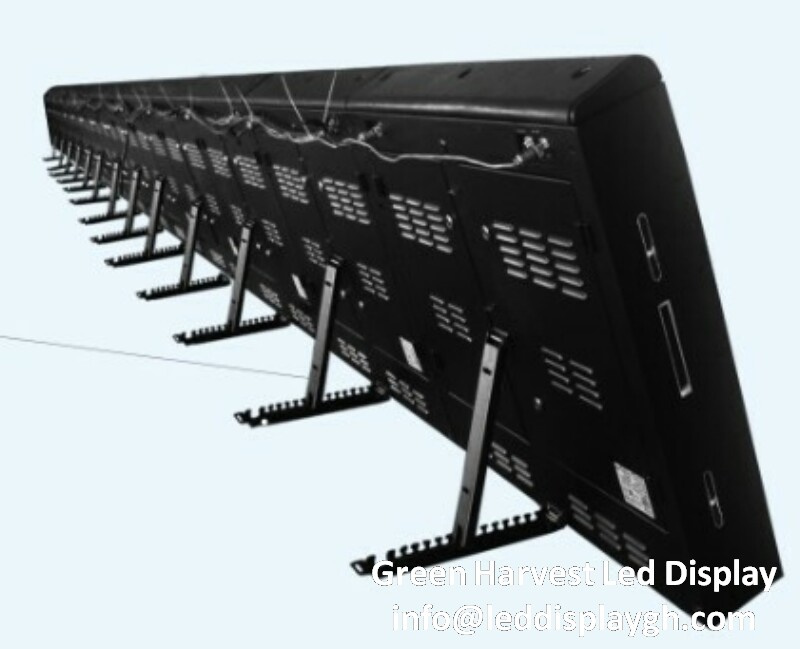

Stable and strong steel cabinet
Easy to installation, special design back support
Suit to all indoor place: Basketball court, football field, tennis stadium, all sports place
Specification
| Type Name | SPB 10 | SPB 12 | SPB 16 | SPB 20 |
| Pixel Pitch | 10mm | 12mm | 16mm | 20mm |
| Pixel density(dot/m2) | 10000 | 6944 | 3906 | 2500 |
| Brightness (nits) | ≥7000 | ≥7000 | ≥7000 | ≥6500 |
| Drive Method | 1/4 | 1 | 1 | 1 |
| Refresh rate (HZ) | ≥1200 |
| Module size (mm) | 160x160 | 192x192 | 256x256 | 320x160 |
| Cabinet size (mm) | Customize, integer multiples of module size |
Cabinet material | Steel or Alumimium |
| Cabinet weight | 55kg/ |
Screen work Voltage (V) | 110~240V/AC |
Screen power consumption (W/) | Max 400 / Average 130 | Max 630 / Average 200 | Max 650 / Average 210 | Max 300 / Average 100 |
| Screen View angle | 120°/ 60° |
| IP Grade | IP65 |
| Operationg Temperature/Humidity | -20~50ºC 10~90% RH |
| Storage Temperature/Humidity | -40~60ºC 10~90% RH |
| Life Time | >50000H |
Standard Certification | CE CCC | CE CCC | CE CCC | CE CCC |
Green Harvest Optoelectronics Co., Ltd. is a professional LED manufacturer that develops, manufactures and markets LED video solutions for multiple indoor and outdoor applications, including Control & Command Center, advertising display solution, media and entertainment events and sports screen solution across the globe. The products field covers standard LED display and customize LED display.
Green Harvest Optoelectronics Co., Ltd. is the Chinese most affordable price with high quality LED display factory, we purchase low margins with high sales volume. But we promise use true materials to keep the high quality and long-term cooperation. Such as some of our clients already have 9 years cooperation.
