| Prod Model: |
EPM8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channels: |
Mixer, 8 Frame Sizes + 2 Stereo Chanels |
| Frequency Response: |
20Hz-20kHz |
| Thd And Noise: |
<0.02% |
| Power Consumption: |
35W |
| Noise: |
<95dB |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Plastic |
| Application: |
Professional Performance |
| Hi-Fi: |
8 Channel Audio Mixer |
| Activity: |
Audio Mixer |
| Speaker System: |
Professional Performance |
| Monitor: |
Non |
Product Description

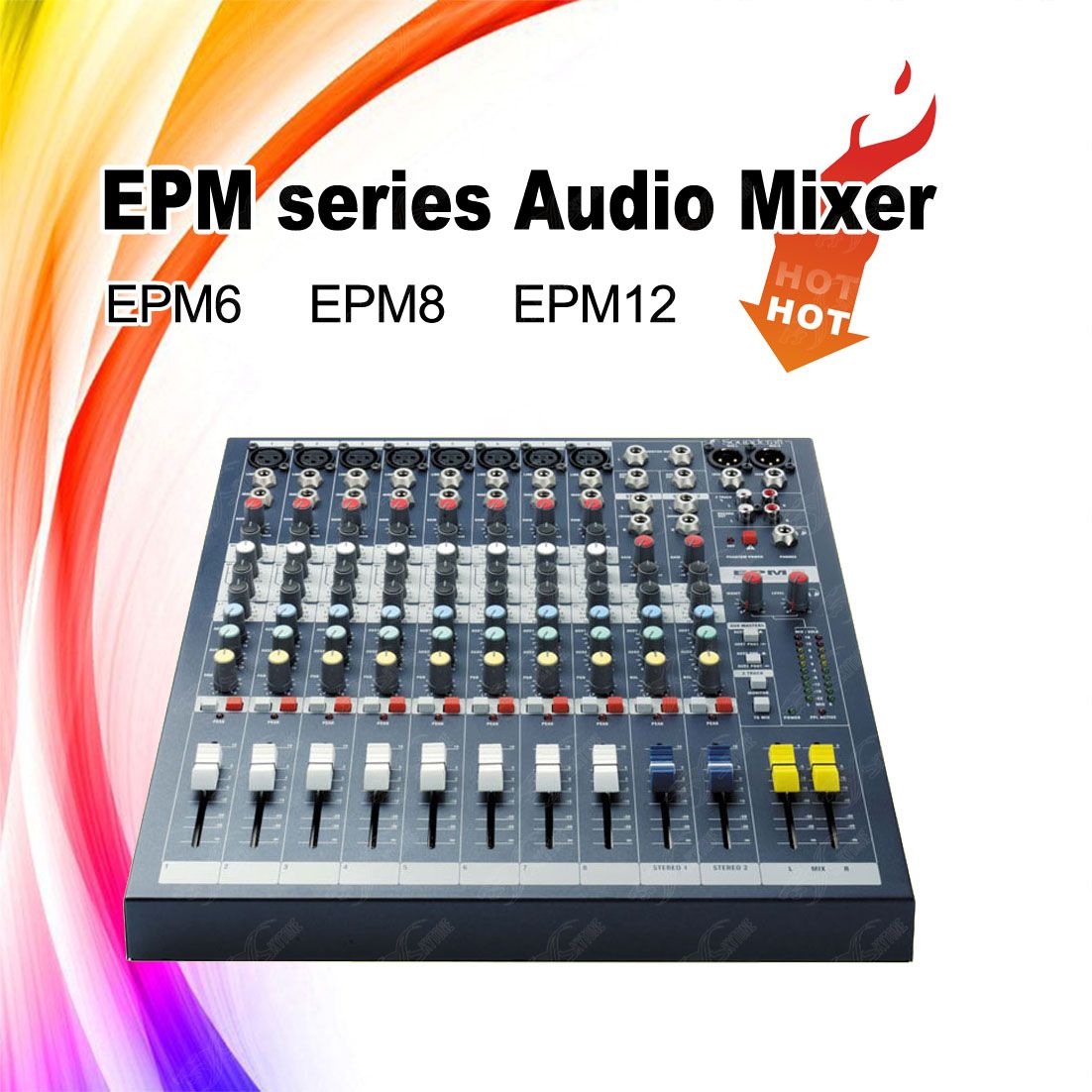

Soundcraft Style Epm8 Audio Mixer
EPM6, EPM8, EPM12
Low-cost high-performance mixers
The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic AMP (designed by Graham Blyth for the company's 30th anniversary, and also used on the larger LX7II and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.
Other Features:
· --Frame sizes 6+2, 8+2 and 12+2
· --2 configurable auxiliary buses
· --XLR-type and ¼ " metal jack connector sockets
· --RCA phono stereo playback inputs and record outputs
· --3-band EQ with a swept MID on mono inputs
· --2-band EQ on stereo inputs
· --TRS insert sockets and inserts on all mono inputs and mix output
· --Ten-segment LED output metering
· --Intuitive and comprehensive solo system
· --Headphone output
· --Easily rack mountable
The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.
| Epm8 Specifications: |
| Frequency response | Mic/ Line Input to any Output.............................. +/-1.5dB, 20Hz – 20kHz |
| T.H.D. & noise | Mic Sensitivity -30dBu, +14dBu @ Mix output.................. < 0.02% @ 1kHz |
| Noise | Mic Input E.I.N. (maximum gain)...................... -127dBu (150Ω source)
Aux, Mix and Masters (@ 0dB, faders down)................................ < -85dBu |
| Crosstalk(@ 1kHz) | Channel Mute................................................................................ > 96dB
Fader Cut-off (rel +10 mark).......................................................... > 96dB
Aux Send Pots Offness................................................................... > 86dB |
EQ
(Mono inputs) | HF ................................................................................... 12kHz, +/-15dB
MF (swept)........................................................ 150Hz – 3.5kHz, +/-15dB
LF...................................................................................... 80Hz, +/-15dB
Q.......................................................................................................... 1.5 |
EQ
(Stereo inputs) | HF ................................................................................... 12kHz, +/-15dB
MF ................................................................................. 720Hz, +/-15dB
LF ..................................................................................... 80Hz, +/-15dB |
| Power Consumption | ........................................................................................... Less than 35W |
| Operating Conditions | Temperature Range............................................................. 5°C to +40°C |
Input & Output
Levels | Mic Input ............................................................................ +15dBu max.
Line Input............................................................................. +30dBu max.
Stereo Input......................................................................... +30dBu max.
Mix Output .......................................................................... +20dBu max.
Headphones (@150Ω) .................................................................. 300mW |
Input & Output
Impedances | Mic Input .......................................................................................... 2kΩ
Line Input ....................................................................................... 10kΩ
Stereo Input ................................................. 65kΩ (stereo), 35Ω (mono)
Outputs ....................................... 150kΩ (balanced), 75Ω (unbalanced) |
