| Prod Model: |
LX7-24(RW5675) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Name: |
Lx7-24 |
| Channel: |
24 |
| Stereo Channels: |
2 |
| Groups: |
4 |
| Package Size: |
97*33*64cm |
| Gross Weight: |
21kg |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker Material: |
Metal |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.005% |
| Speaker System: |
Audio Mixer |
| Monitor: |
No LED |
Product Description
Soundcraft LX7-24 Style Mixer
PROFESSIONAL MIXING CONSOLE
Applications:
--Gigging Bands
--Small installations
--Small venues
--Theatres
--Houses of Worship
--Live and studio recording
Key Features:
--100mm faders
--+48V phantom power
--16, 24 or 32 channel frame sizes
--Up to 40 inputs (including stereo inputs and returns)
--18dB/octave high-pass filter
--6 aux sends, 4 of them pre/post switchable
--Group and mix inserts
--12-segment LED metering
--Integral PSU

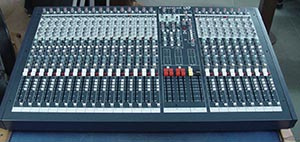

Real photos:
| Lx7-24 specifications: |
| Frequency response | XLR input to any output . . . . . . . . . . . . . . . +0/-1dB, 20Hz-20kHz |
| T.H.D. & noise | All measurements at +10dBu output, 30dB gain.
XLR input to Direct output . . . . . . . . . . . . . . . . . <0.007% @ 1kHz
XLR input to Mix output . . . . . . . . . . . . . . . . . . . <0.008% @ 1kHz |
| Mic input E.I.N. | 22Hz-22kHz bandwidth, unweighted . . . <-128dBu (150Ω source) |
| Mic gain | Min . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5dB
Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60dB |
| Bus noise | Mix output, input faders @ -∞, Mix fader 0dB
32 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-85dBu
16 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-88dBu
Group output, input faders @ -∞, Group fader 0dB
32 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-85dBu
16 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-88dBu
Aux output, input sends @ -∞, Aux master 0dB
32 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-88dBu
16 channels routed . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-91dBu |
| Crosstalk @ 1kHz | Input channel muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . >98dB
Input fader cutoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >98dB
Input pan pot isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . >82dB
Mix routing isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . >98dB
Group routing isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . >98dB
Adjacent channel isolation . . . . . . . . . . . . . . . . . . . . . . . >100dB
Group-Mix crosstalk . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-84dB
Aux send off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <-94dB |
| CMRR | Mono input, measured at max gain . . . . . . . typically 80dB @ 1kHz |
Input & output
levels | Input channel mic input . . . . . . . . . . . . . . . . . . . . . . +15dBu max
Input channel line input . . . . . . . . . . . . . . . . . . . . . . +30dBu max
Stereo inputs & insert returns . . . . . . . . . . . . . . . . . +20dBu max
All outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +20dBu max
Nominal operating level . . . . . . . . . . . . . . . . . . . . . . . . . . . 0dBu
Headphone power . . . . . . . . . . . . . 2 x 250mW into 200Ω phones |
Input & output
impedances | Mic input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2kΩ
impedances
Line inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >10kΩ
Input channel insert return . . . . . . . . . 5kΩ (with EQ in, otherwise
worst case 1.8kΩ)
Mix, Group, Aux outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 150Ω
Insert sends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75Ω
Recommended headphone impedance . . . . . . . . . . . . . 50-600Ω |
High pass filter
(Mono input) | 100Hz, 18dB per octave |
| EQ (Mono input) | HF . . . . . . . . . . . . . . . . . . . . 13kHz, +/-15dB, 2nd order shelving
Hi-Mid . . . . . . . . . . . . . . . . . . . . . . 550Hz-13kHz, +/-15dB, Q=1
Lo-Mid . . . . . . . . . . . . . . . . . . . . . . . 80Hz-1.9kHz, +/-15dB, Q=1
LF . . . . . . . . . . . . . . . . . . . . . 80Hz, +/-15dB, 2nd order shelving |
| Metering | 6 tri-colour 12-segment LED bargraphs |
| Power consumption | AC mains supply (internal PSU) 85V-270V AC,
50/60Hz universal input
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60W |
| Weight | 16 channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18.2kg (40lbs)
24 channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.8kg (48lbs)
32 channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25.4kg (56lbs) |
| Operating conditions | Temperature range . . . . . . . . . . . . . . . . . . . . . . . -10ºC to +30ºC
Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0% to 80% |
