Solar Water Heater

Solar Water Heater
Price: US $ 399/Set
Trade Terms: FOB,CFR,CIF
Min Order: 5/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ADL6038
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used: Household or Small Project
Hot Water By: Solar Energy
Bill Of Charge: Free
Tube Numbers: 10 Tubes-36 Tubes
Hot Water Can Provide: 100L-360L
Working Pressure: Low Pressure
Installation Methods: Compact
Working Temperature: -30 Centidegree to 80 Cent
Frame: 25 Degree to 45 Degree
Warranty Time: 5 Years
Structure: Compact Type
Pressure: Unpressurized
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: CE

Product Description

Solar water heater
(1) CE, ISO, solar keymark
(2) Low pressure, standard SRCC
(3) High Quanlity & Reasonable Price

SPECIFICATION
Solar water heater, non pressure, Economical, Easy installation, household, popular on the worldwide, maintenance free, Al/N/Al-SS/CU

Solar water heater with aluminum-alloy reflector
Solar Water Heater, solar heater, solar geyser

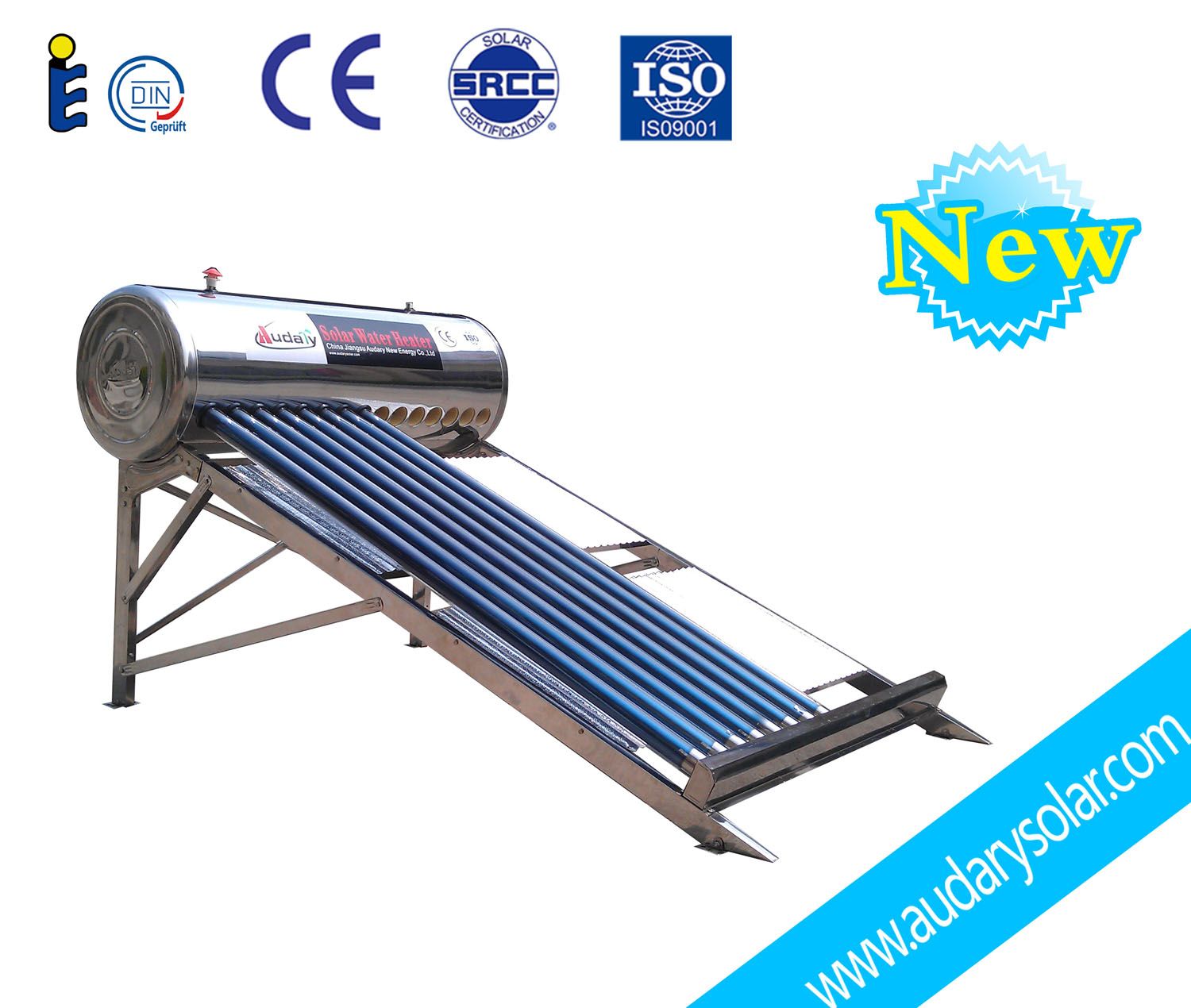

ADL6038 serials is Thermosyphon solar water heater, That is a kind of solar water heating system that solar collector and storage are connected together with the cylinder storage on the top and collector panel on the bottom. There is no need of pump to push the fluid and no need of pipeline between the collector and storage. It is a simple and safe solution to get heat power from the sun

Advance:
1) The material of the outer tank is Color Steel /PVDF. The material of the inner tank is SUS304 2B /SUS316L stainless steel.
2) The life of the vacuum tubes is 20 years.
3) Stable and reliable performance, economy.
4) Temperature when exposed to sun without water: 250° C, 2.5 hours to boiling point if using single tube.
5) It resists no more than 30mm hail.
6) Heat preservation: At least 72 hours. The temperature go down 3~5° C per day
7) Optional accessories: Assistant tank, electric heater, reflector, automatic inlet water valve, Magnesium anode, ect.
Product  Model   Tubes  Qty.   Tank  (L) Absorbing Area (m 2 ) Weight  (KGS)   Dimension    (L× W× H)           Qty. per 20FT/40FT/40HQ
ADL6038-460-1800/58-12           12       120       0.92               52       1920*1100*1250   58 / 123 / 156
ADL6038-460-1800/58-15           15       150       1.15                 64       1920*1340*1250   46  /  98  / 120
ADL6038-460-1800/58-18           18       180       1.37               77       1920*1580*1250   37  / 83  / 102
ADL6038-460-1800/58-20           20       200       1.50               87       1920*1740*1250   34  /  75  /  93
ADL6038-460-1800/58-24           24       240       1.83             107       1920*2060*1250   30    /  63  / 77
ADL6038-460-1800/58-30           30       300       2.29             127       1920*2540*1250   25  /  52  /   65

Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.

Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.

Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.

Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.

Under the leadership of our general manager and engineers, our company will be more prosperity.

Hope we can cooperate with people all over the world. And lead people a Green-energy life.
