| Prod Model: |
WF |
| Markets: |
North America,South America,Southeast Asia |
| Collector Components: |
Glass Vacuum Tube |
Product Description

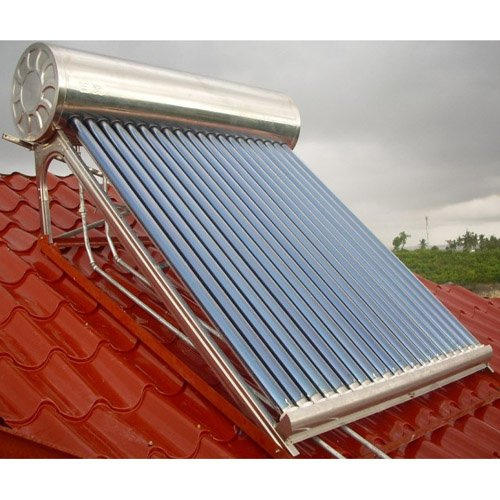

Non-pressurized thermosiphon solar water heater with water tank, it is the economical as a natural circulation system, the water is heated in vacuum tubes directly. The water circulates constantly between water tank and vacuum tubes; The cold water in water tank will be hotter and hotter.
Material of inner tank:
|
SUS 304 2B(food grade)
with 0.4mm thickness
|
Material of outer tank:
|
galvanized steel with 0.4mm thickness
|
Material of Stand part:
|
galvanized steel with 1.5mm thickness
|
Insolation:
|
polyurethane foam thickness: 55-60mm.
|
Rubber seals and rubber ring material:
|
Silicone Rubber
|
Vacuum tube
|
47/1500, 58/1800
|
Heat Preservation ability:
|
72Hours
|
Hailstone resistance:
|
Dia< =25mm
|
Optional installation angle
|
45C
|
|
MODEL |
Absorb area(m2)
|
Vacuum tube
|
Cubage
(L)
|
Qty. per20’ /40’
Container
|
Diameter
|
Length
|
No.
|
WF-HJ-420-47/1500-A18
|
0.9
|
φ 47mm
|
1500mm
|
18
|
100
|
56/115
|
WF-HJ-420-47/1500-A20
|
1.0
|
φ 47mm
|
1500mm
|
20
|
111
|
50/105
|
WF-HJ-420-47/1500-A24
|
1.2
|
φ 47mm
|
1500mm
|
24
|
135
|
44/92
|
WF-HJ-420-47/1500-A30
|
1.5
|
φ 47mm
|
1500mm
|
30
|
166
|
36/75
|
|
|
|
|
|
|
|
WF-HJ-470-58/1800-A18
|
1.44
|
φ 58mm
|
1800mm
|
18
|
150
|
39/81
|
WF-HJ-470-58/1800-A20
|
1.6
|
φ 58mm
|
1800mm
|
20
|
165
|
35/73
|
WF-HJ-470-58/1800-A24
|
1.92
|
φ 58mm
|
1800mm
|
24
|
200
|
30/62
|
WF-HJ-470-58/1800-A30
|
2.4
|
φ 58mm
|
1800mm
|
30
|
250
|
24/50
|
WF-HJ-470-58/1800-A36
|
2.88
|
φ 58mm
|
1800mm
|
36
|
300
|
20/40
|
