| Prod Model: |
ADL-6028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE, SRCC, ISO, Solar Key Mark |
Product Description

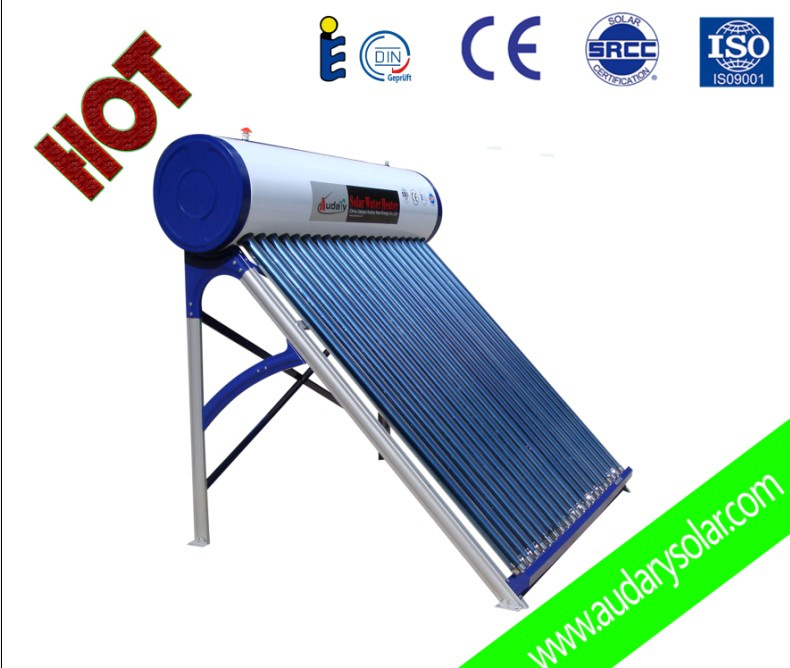

Solar Energy Water Heater
1. Inner water tank: SUS304-2B imported food-grade stainless steel
2. Outer tank material: Galvanized plate, color-coated sheet, SUS304BA stainless steel
3. Vacuum tube: Borosilicate glass, with aluminun absorption layer of magnertron sputteringØ 47× 1500mm/ Ø 58× 1800mm/Ø 70× 2000mm
4. Thickness of insulation layer: 55-65mm computerized pressurizing and foaming of polyurethane
5. Bracket materials: Galvanized sheet with electrostatic plastic-sprayed/stainless steel/aluminum alloy
6. Fasteners: Stainless steel screw
7. Sealing ring: Polymer silicone rubber
8. Reflective angle: 45 golden angle
Testing data of solar energy
The vacuum tube of our solar water heater has high absortion rate and low emission rate
1. Abosortion rate: 0.90-0.93(AM1.5)
2. Emission rate: 0.05-0.075
3. Vacuum tightness: P≤ 5.0*0.0001PA
4. Stagnation tightness: 200
5. Average heat loss coefficient: Ult0.8W(. )
6. Heat preservation: 72 hours
7. Hail resistance: 20-30mm
8. Idle sunning property paramerers: Y=220-260. /KW
9. Avetage heat loss coefficient: Ult=0.6-0.7W(. )
It means the temperature in the water tank is arange from 50 to 95 degree.
It resists 25mm hail and the using life can last 15 years, temperature when exposed to sun without water
Certificate of solar energy.
Have passed CE, ISO9001: 2000, CCC and have got several patent certificates
Thickness: Inner tank: 2mm
Outer tank: 0.6mm
Frame: 2.75mm
Insulation: 55-65mm
|
Material |
Evacuated tube |
High borosilicate glass, with aluminum absorption layer of magnetron sputtering |
|
Inner tank |
SUS 304-2B food-grade stainless steel 360mm |
|
Outer tank |
Color coated galvanized steel 460mm |
|
Bracket |
Galvanized steel with electrostatic plastic-sprayed |
|
Thickness |
Insulation layer |
50mm |
|
Inner tank |
0.4mm |
|
Outer tank |
0.4mm |
|
Bracket |
1.2mm |
|
Accessories |
Fasteners |
Stainless steel screws. |
|
Sealing ring |
Macromolecule silicone rubber |
|
Specification |
Heat preservation |
72 hours |
|
Hail resistance |
20-30mm |
|
Max Water Temperature |
Can reach at least 95 degree |
|
Circulation |
Direct /Open loop (Active) |
|
Heating System |
Thermosyphon (Passive) |
|
Connection Type |
Direct-plug |
|
Absorption Rate |
≥ 0.95± 0.02 |
|
Emission Rate |
≥ 0.95± 0 ≤ 0.20± 0.02 |
|
Vacuum Tightness |
P≤ 5.0*0.0001Pa |
|
Idle sunny property parameres |
Y=220-260. /KW |
|
Total Weight 87KGS |
87KGS |
|
Certifications |
Solar Keymark, SRCC, SGS, CE, ISO9001 |
|
Warranty 5 years |
5 years |
