| Prod Model: |
CNP-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank Material: |
SUS304 or SUS316 |
| Outer Tank Material: |
Color Steel, Stainless Steel |
| Bracket Material: |
Color Steel, Stainless Steel, Aluminuim |
| Outer Tank Color: |
Gray, White, Red etc |
| Color Steel Bracket Color: |
Gray, Black, Blue etc. |
| Side Cover Color: |
Always Same with Bracket |
| Optional 1: |
Built-in Electrical Heater, Controller |
| Optional 2: |
Assistant Tank |
| Optional 3: |
Magnesium Rod |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CCC |
Product Description

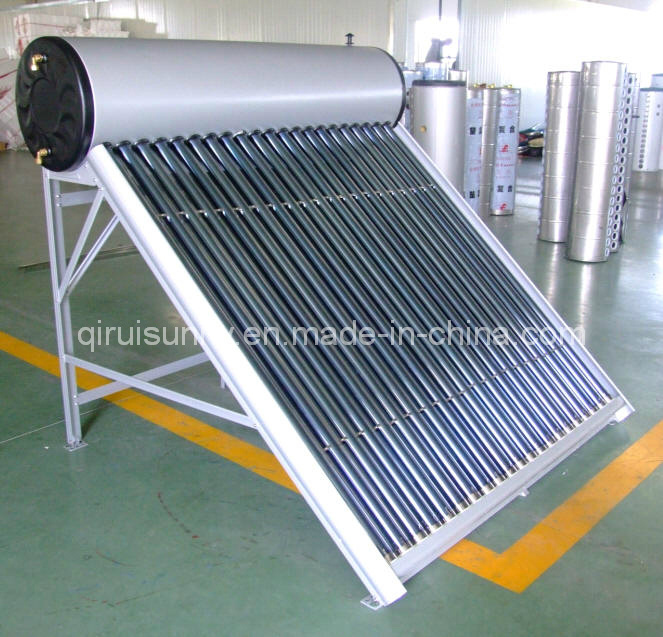

Compact Vacuum Tube Solar Warm Water with CE Certification
The Cheapest Price&Highest Efficiency type solar water heater system
A Home Comfort solar water heater system that utilise the free energy from the sun.1), cheap and reliable hot water solution2), direct heating, the highest efficiency model3, 1% spare parts freely offerd4),CE, SOLAR KEYMARK EN12976 certified solar water heater system5),Factory price6), Factory audited by SGS. 1.Vacuum Tube Solar Water Heater Work Principle: Through a thermo-siphon effect (in which hot water rises), hot water circulates between the collectors and the water tank while there is sun and is stored at the end of the day in an insulated tank.
2.Vacuum Tube Solar Water Heater Features
1) Higher efficiency than Flat plate solar water heater
2) Operated completely automatic if connect with intelligent controller.
3)Simple structure, easy plug-in installation, can be installed both on flat and inclined roof.
4) Hot water every day, with an auxiliary built-in electric heater as back up power.
5) 72 hours heat preservation ensured by one-off molding polyurethane foam with thickness 55mm.
6) Food grade SUS304-2B stainless steel inner tank, meet the mankind healthy bath standard.
7) Eco-friendly and energy saving product.
8) Stable and reliable performance, well wind resistance.
9) Widely used in Europe, North America, Mexico, South Africa market.
10) More than 10 years life time
11) Directly hot water or Pressurized close loop(heat exchanger) solar hot water system

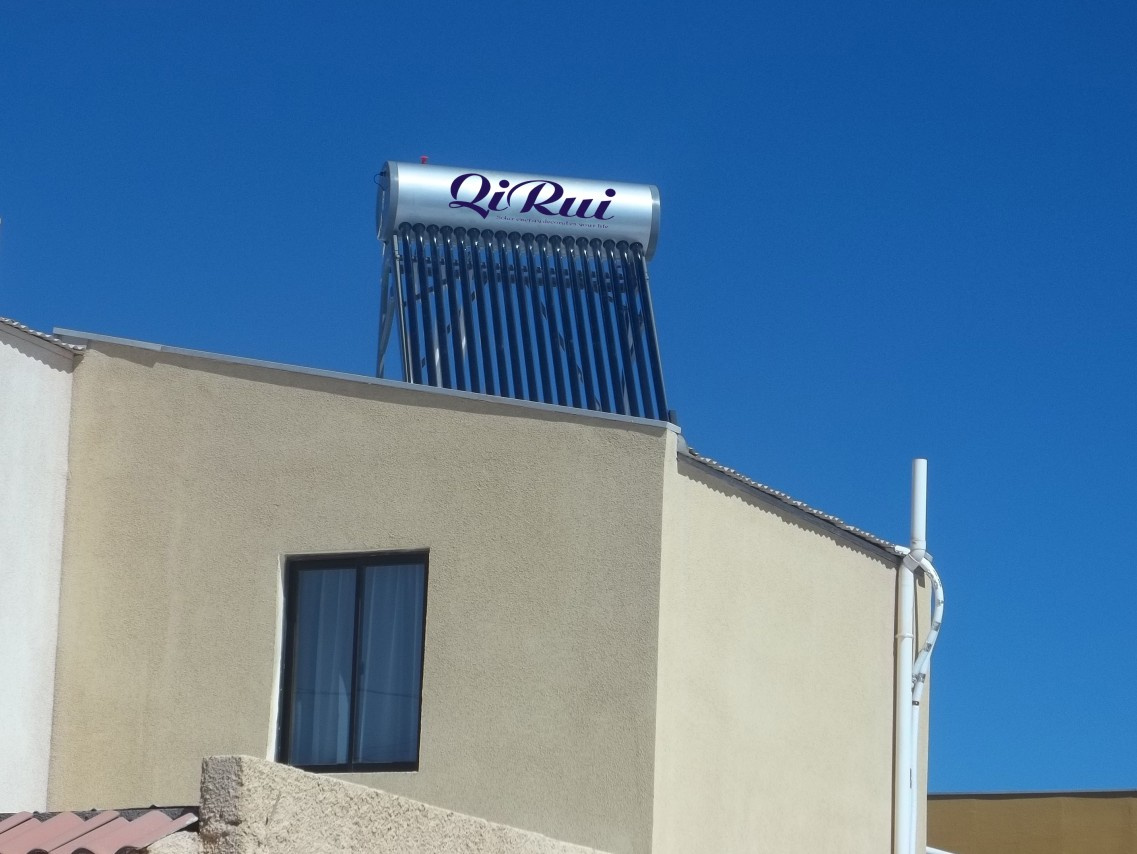

3. Compact Vacuum Tube Solar Water Heater Combined with House

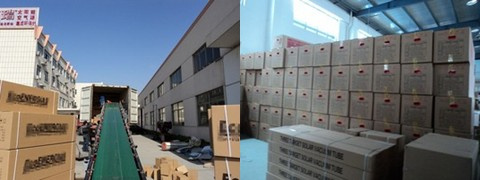

4. Vacuum Tube Solar Water Heater Loading and Package
SOLAR WATER HEATER Package details: poly bag wrapped, Styrofoam underlay, export carton packed.
5. Compact Vacuum Tube Solar Water Heater Product Details(20'GP container, 40'GP container, 40'HQ container)
| Model | Tube Specification | Capacity | Loading quantity |
| 20'GP | 40'GP | 40'HQ |
| (Liter) | (Sets) | (Sets) | (Sets) |
| CNP-58-10 | Φ58mm*1800mm | 100 | 73 | 151 | 178 |
| CNP-58-12 | Φ58mm*1800mm | 120 | 64 | 133 | 155 |
| CNP-58-15 | Φ58mm*1800mm | 150 | 53 | 110 | 130 |
| CNP-58-18 | Φ58mm*1800mm | 180 | 45 | 94 | 110 |
| CNP-58-20 | Φ58mm*1800mm | 200 | 41 | 85 | 100 |
| CNP-58-24 | Φ58mm*1800mm | 240 | 36 | 75 | 88 |
| CNP-58-30 | Φ58mm*1800mm | 300 | 28 | 59 | 70 |
| CNP-58-32 | Φ58mm*1800mm | 320 | 27 | 56 | 66 |
| CNP-58-34 | Φ58mm*1800mm | 340 | 25 | 53 | 62 |
| CNP-58-36 | Φ58mm*1800mm | 360 | 24 | 50 | 59 |
| MATERIAL OF OUTER TANK | 0.4mm galvanized steel/SUS304 stainless steel /SUS304-BA(bright) |
| MATERIAL OF INNER TANK | 0.41mm SUS304-2B or SUS316 stainless steeel |
| TANK INSULATING LAYER | 50mm high-density polyurethane foamed |
| DIAMETER OUTER/INNER TANK | 420/310mm; 460/360mm; 470/360mm; 480/360mm |
| ELECTRICAL HEATER | 1.5KW/2.5KW /3KW, 220v/110v |
| INLET AND OUTLET HOLE | Male 1/2" OR 3/4" |
| MAX WORKING PRESSURE | 0.6 Mpa |
| VACUUM TUBE COATED | AL/AL-ALN/ALN or CU/SS-ALN/ALN |
| THICKNESS OF GLASS TUBE | 1.6mm |
| VACUUM TUBE TIGHTNESS | P≤0.005 pa |
| ABSORPTION | As=0.93-0.96(am1.5) |
| EMISSION RATIO | Ε h=0.04-0.06(80c± 5c) |
| IDLE SUNNING PROPERTY PARAMETERS | Y=220~260m². C/kw |
| AVERAGE HEAT LOSS COEFFICIENT | Ult=0.6~0.7w/(m2. c) |
| BRACKET: | 1.2mm Stainless steel/1.6mm aluminum alloy/1.5mm galvanized steel |
| WELDING: | Automatic argon arc welding |
| FASTENING PIECES: | Stainless steel screw |
| SEAL MATERIAL | Stabilized high temperature silicon |
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
