Solar Thermal Water Heater Project

Name: Solar Thermal Water Heater Project
Brand: ec-portal.com
SKU: 753910275
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Send Inquiry

Showroom Product Company Profile

Prod Model:	FTP-190-58/1800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
500L Each Set:	50 Tubes
Max. Capacity:	>200L
Structure:	Separate Type
Pressure:	Unpressurized
Interior Material:	Stainless Steel
Collector Components:	Glass Vacuum Tube
Composition:	Collector
Certification:	CCC

Product Description

Solar water heater
Swimming pool solar water heater

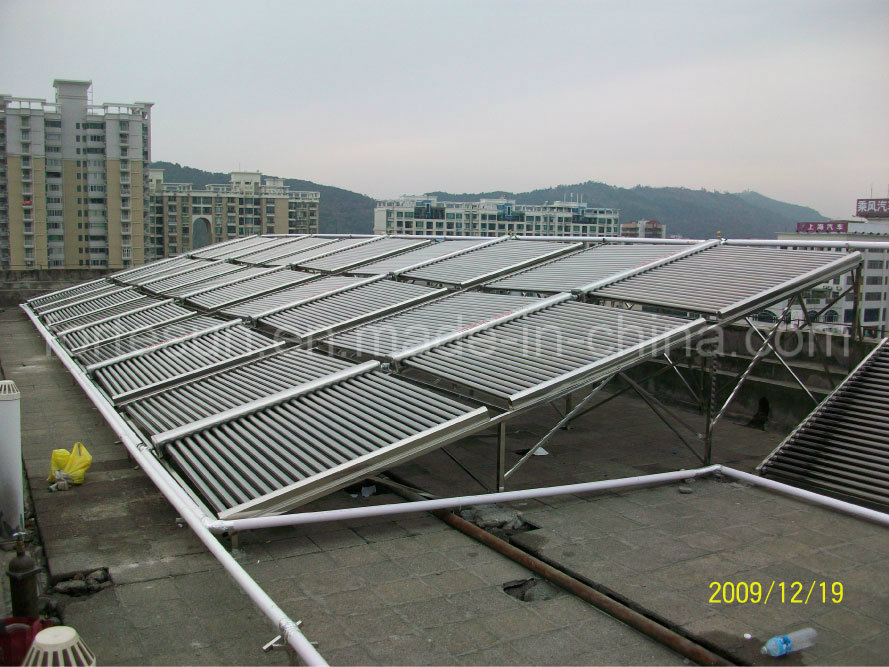

Project solar water heater

Peroject Solar water heater /Swimming pool solar water heater
Main Specification : Central heating, big quantity of tubes for each collectors , from 24 to 60PCS
High efficient: big absorber area insures shortest time of heating
Tubes are collected in smallest area , suitable for project
Big capacity, quick flow rate
With the more serious environment pollution, government lays down a series of restriction policies in accordance with every city because of the traditional boilers' high energy consumption and many emissions polluting environment. Even more, some cities have been seriously forbidden using the boilers. However, so many collective bathrooms, hostels, MID and small hotels, enterprises and institutions need heating water to bathe. The solar concentrative heat water supply system engineering is safe, economic, no-pollution, automatically which is using the sun as the main source of power. Its lifetime may be 15 years and has noticeable benefit of economic, environment, society. Now, it has been used in many companies in some cities.

MODEL Tank capacity
(L) Tube quantity Absorber area
(m2) Loading quantity
20GP/40HQ(set)

FT-170-58/1800-30 250 30 2.44 45/104
FT-170-58/1800-50 500 50 4.06 30/75
FT-170-58/1800-50with 2*250L tanks 500 50 4.06 13/28
FT-170-58/1800-100 with 3*250L tanks 500 100 8.12 8/18
FT-190-58/1800-30 250 30 2.44 45/104
FT-190-58/1800-50 500 50 4.06 30/75
FT-190-58/1800-50 with 2* 250L tanks 500 50 4.06 13/28
FT-190-58/1800-100 with 3*250L tanks 1000 100 8.12 8/18

Model	PackSize(cm) (L×W×H)		Qty.per20'/ 40'Container
FTP-190-47/1500-20	Watergullet	164×21×21	100	230
	Vacuumtube	158×28×29
	Frame	178×13×13
FTP-190-47/1500-24	Watergullet	192×21×21	93	213
	Vacuumtube	158×28×29
	Frame	178×13×13
FTP-190-47/1500-48	Watergullet	192×21×21	66	153
	Vacuumtube	158×28×29*2
	Frame	192×14×19
FTP-190-47/1500-72	Watergullet	2760×21×21	50	115
	Vacuumtube	158×28×29*3
	Frame	2760×14×19

Model	PackSize(cm) (L×W×H)		Qty.per20'/ 40'Container
FTP-190-58/1800-20	WaterTank	183×21×21	81	186
	Vacuumtube	189×34×29
	Frame	205×13×13
FTP-190-58/1800-24	WaterTank	215×21×21	71	163
	Vacuumtube	189×34×29
	Frame	205×13×13
FTP-190-58/1500-30	Water Tank	2652121	60	140
	Vacuum Tube	1893429
	Frame	2601313
FTP-190-58/1800-48	WaterTank	215×21×21*2	40	92
	Vacuumtube	189×34×29
	Frame	212×14×19
FTP-190-58/1800-50	WaterTank	223×21×21*2	38	88
	Vacuumtube	189×34×29
	Frame	223×14×19
FTP-190-58/1800-50with 2*250L tanks	WaterTank	223×21×21*2	38	88
	Vacuumtube	189×34×29
	Frame	223×14×19
FTP-190-58/1800-50 with 3*250L tanks	WaterTank	223×21×21*2	38	88
	Vacuumtube	189×34×29
	Frame	223×14×19

OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
