| Prod Model: |
JJL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame: |
30degree to 60degree |
| Product: |
Solar Hot Water Heater System Solar Collector |
| Inner Tank Material: |
SUS304,SUS316,0.4mm,0.5mm,0.6mm |
| Outer Tank Material: |
Galvanized/Color Steel,Powder Coated,Stainless |
| Accessories For Opition: |
Assistant Tank,Magnesium Rod,Solar Controller |
| Tank Capacity Opition: |
100L,120L,150L,180L,200L,250L,300L,360L |
| Solar Stand/Bracket/Support Material: |
Solar Stand/Bracket/Support Material |
| Application: |
Solar Water Heater,Solar Collector,Solar System |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

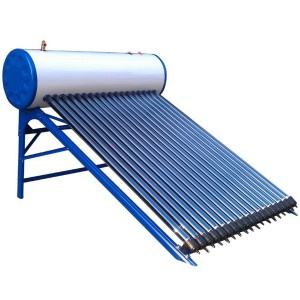

Solar Hot Water Heater System Solar Collector Water Heater
We manufacturer of solar water heater more then 15years in China.
Main products:Solar Water Heaters,Solar,Solar Panel,Solar Water System,
Stainless Steel Solar,Solar Collector,Solar Tank,Pool Heater,Solar System for Home,Hot Water Heater,Heat Pipe Solar Collector,Solar hot water heating system,Solar thermal collector,Pressure solar water heater,Swimming Pool Solar Heater,
Solar Geysers etc.
This non- pressure system water heater relies on a natural Principle.The evacuated solar collector tubes , the temperature of the water in the tubes rise to certain heat
levels, making the water less dense or lighter.
The hot water naturally moves up to the top of collector and through out evacuated
collector tubes converting to the storage tank. The colder water in water tank,
then moves down to the bottom of the collector. This process is continuous thermal processing, and 100% natural in heating water from the sun with evacuated
specially designed vacuum tubes.
By the air vent valve on the top of the storage cylinder and the over flow pipe in the bottom of the thermal insulated tank that maintains open to the air. The hot water will circulate freely with out any type of pressure regulators.
These systems move household water or a heat - transfer fluid through the system without pumps. This kind of passive system has the advantages naturally when producing hot water with out electricity to heat or circulate water. This makes passive systems generally more reliable, easier to maintain, and often inexpensive.
Solar Water Heater Features:
1) Stable and reliable performance and well wind resistance
2) Vacuum heat-collecting tubes at high temperature
3) Dual-purpose brackets for both flat and inclined roof
4) Meeting the demand of well-to-do families
5) Economical goods
Solar Water Heater Model:
| Model | Tube QTY | Tube Size | 20'GP | 40'GP | 40'HQ |
| JCN-C100L | 10 | 58×1800MM | 66 | 138 | 174 |
| JCN-C120L | 12 | 58×1800MM | 55 | 114 | 144 |
| JCN-C150L | 15 | 58×1800MM | 44 | 91 | 115 |
| JCN-C180L | 18 | 58×1800MM | 37 | 78 | 98 |
| JCN-C200L | 20 | 58×1800MM | 35 | 72 | 91 |
| JCN-C240L | 24 | 58×1800MM | 29 | 60 | 76 |
| JCN-C300L | 30 | 58×1800MM | 23 | 49 | 62 |
| JCN-C360L | 36 | 58×1800MM | 20 | 41 | 52 |
Solar Water Heater Specifications:
1.Solar Water Heater Inner tank:SUS304-2B,0.4mm
2.Solar Water Heater Outer tank:Galvanized Steel 0.4mm
3.Vacuum tube:58*1800mm three target
4.Stand:Galvanized Steel 1.5mm
5.Insulation layer:55mm
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
