Prod Model: |
FT-FP-2m*1m |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Pressure 6 Bar: |
Working Pressure 9 Bar |
Blue Titianium Absorber: |
Laser Welding |
Splite Collector: |
Closed Loop |
1 Full PC Of Aluminum: |
Flat Plate |
7 Years Warranty: |
Minimum 15 Years Life |
5 Types Of Absorber: |
Weight 40kgs |
Application: |
Air Conditioning System |
Type: |
Pressurized |
Pipe Material: |
Copper and Aluminum |
Product Description
Flat plate Solar collector(150L, 200L,250L,300L)
Bluetec aluminum or copper absorber collector

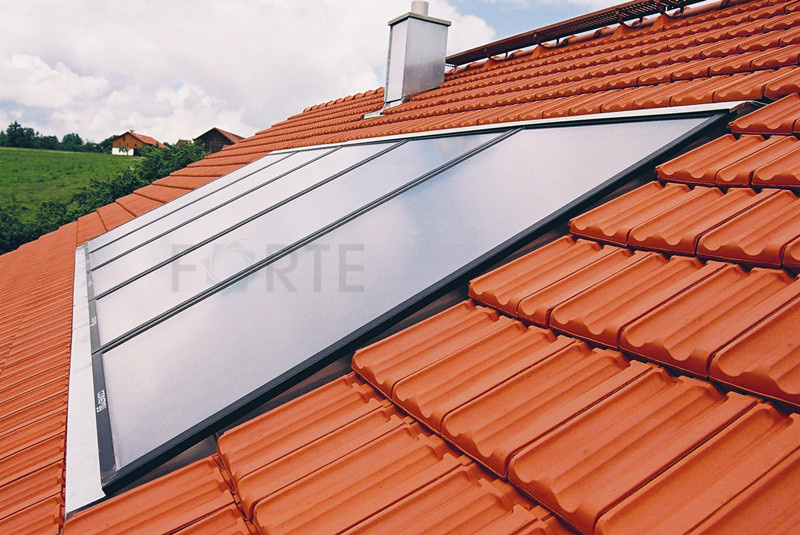

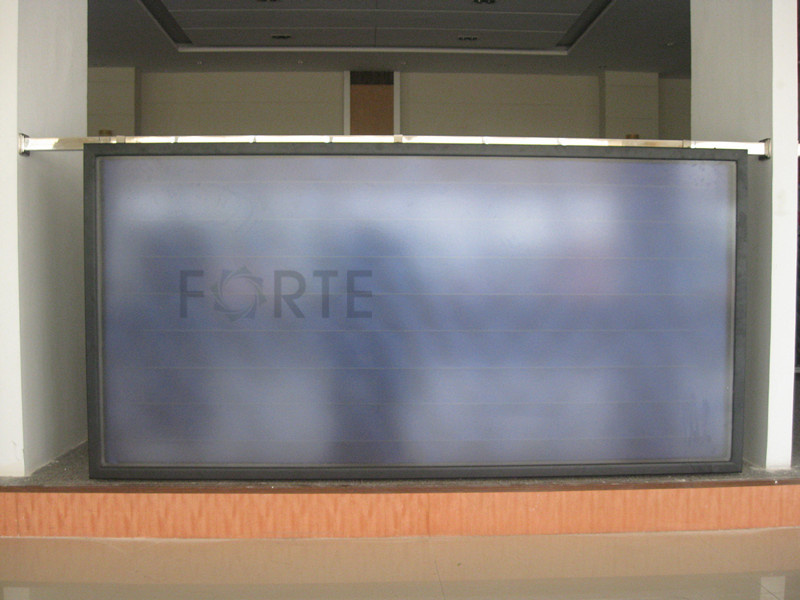

flat plate solar collector
high efficient Flat plate solar collector
laser or ultrasonic welded absorber blue titianium
pressurized flat plate Solar collector-maximum pressure 9 bar
High pressure flat plate solar collector

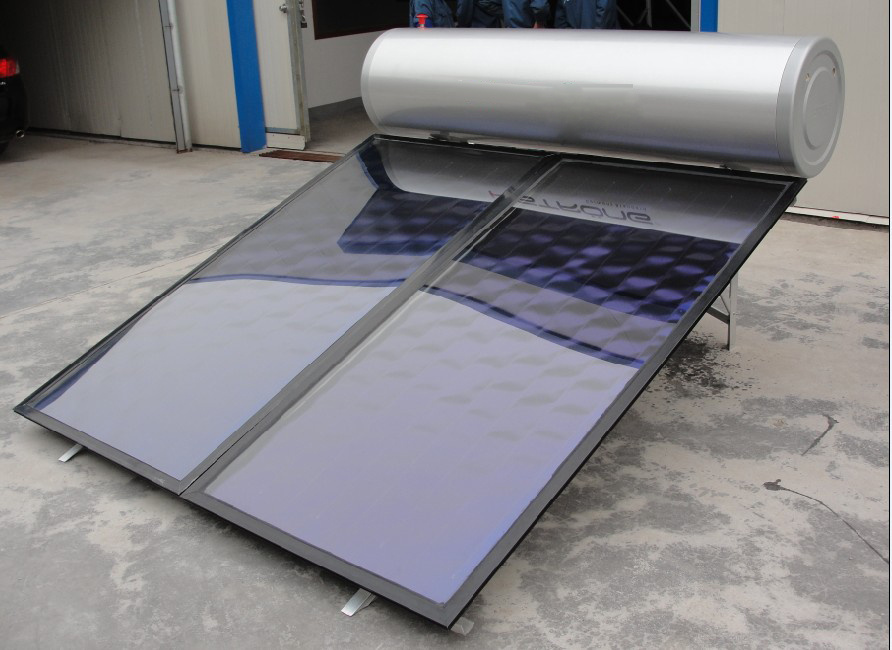

solar hot water heater
flat solar heating system
Splite solar collector solar water heating system
Flat Plate Solar Collector high pressure solar collector |
| Copper and Aluminum combined solar collector | All red copper black Chrome coated collector | All red copper Blue Tec Absorber collctor | Aluminum 1PC black Chrome coated collector | Aluminum 1PC aluminum coated Bluetec collector |
Coating | Anodized treatment | Black Chrome coated | Germany imported Selective coating | Black Chrome coated 1PC | Germany imported |
Construction type | pipe+fin | pipe+plate | pipe +plate | pipe+plate | pipe+plate |
Absorption rate | 0.95± 0.03 | 0.96± 0.03 | 0.96± 0.02 | 0.96± 0.03 | 0.96± 0.02 |
Emmision rate | 0.18± 0.05 | 0.09± 0.05 | 0.05± 0.02 | 0.09± 0.05 | 0.05± 0.02 |
Aluminum fin | 140x 1855 x 0.15 7 | 140x 1850 x 0.15 | 140x 1850 x 0.12 | 1925x 925x 0.3 | 1925x 925x 0.3 |
Header pipe | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 | Φ 25 x 0.5 |
Grid pipe | Φ 10 x 0.5 | Φ 10 x 0.5 7PCS | Φ 10 x 0.5 7PCS | Φ 10x 0.5 7PCS | Φ 10x 0.5 7PCS |
Overall size | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 | 2000 x 1000 x 76 |
Frame thickness | 0.85mm | 0.85mm | 0.85mm | 0.85mm | 0.85mm |
Frame color | Silver white | silver white | silver white | Silver white | silver white |
Gross area | 2m2 | 2m2 | 2m2 | 2m2 | 2m2 |
Absorption area | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 | 1.85m2 |
Seal | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC | Anti-aging PVC |
Cover quantity | 1 | 1 | 1 | 1 | 1 |
cover material | 4mm float glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass | 4mm tempered glass |
transmittance | 89% | 89% | 89% | 89% | 89% |
bottom cover | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate | 0.30mm Zinc coated plate |
Insulation(mm) | bottom 16K*30 fiber glass frame 48K*20 fiber glass | bottom 16K*30 fiber glass frame 48K*20fiber glass | bottom 16K*30fiber glass frame48K*20firber glass | bottom16K*30fiber glass frame 48K*20 fiber glass | bottom 16K*30fiber glass frame48K*20fiber glass |
Maximum pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Weight | 34kg | 35kg | 35kg | 35kg | 35kg |
Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |
