| Prod Model: |
HSP-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
100L 150L 200L 250L 300L 400L 500L |
| Accessories: |
Solar Collector, Upright Water Tank, Work Station |
| Max. Capacity: |
>200L |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
Solar Keymark En12975 |
Product Description

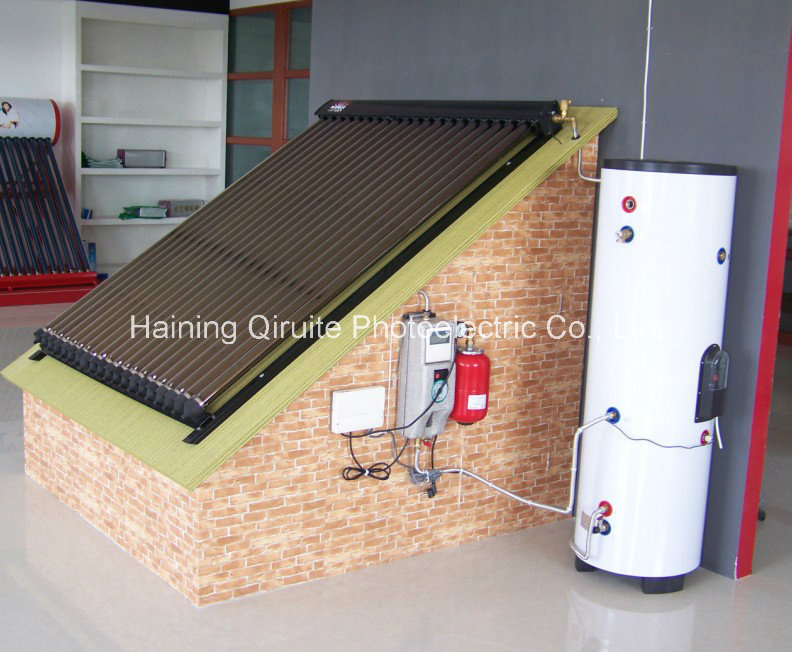

Solar Energy Water Heater System with Solar Keymark Certified
Solar energy water heater Main Parts: Heat Pipe Solar Collector, Upright Water Tank, Work Station(pump and control system)1,Strong hydraulic pressure hot water system2, Keymark, CE certified solar hot water system3,OEM service4,Factory audited by SGSSolar energy water heater Features 1.Strong hydraulic pressure makes your bath more comfortable: pressurized design with strong hydraulic pressure you can have hot water heater when you turn on your tap. The water rushes out with strong hydraulic pressure make your bathe more comfortable.
2. Modularized collector, arbitrary combination: collector consists of efficient heat pipes. Arbitrary combination according to your demand can supply enough hot water any time for your family.
3. Intelligent controlling: competitive and intelligent controlling system more convenient. You can know the temperature of water anytime via controller. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature4. Arbitrary combination with structure of the house: The collector can be put on both tilted roof and flat roof
5. Anti-freeze: No water inside the tubes when it works, and the system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
6. Multifunction: Bathing, washing, domestic heatingSolar Collector of solar Water Heater System1. Manifold: aluminum alloy 2.0mm outer, copper chanel inner 2. Vacuum tube dimensions: 58mm x 1800mm, three target vacuum tube 3, Bracket: 2.0mm aluminum alloyWater Tank of Solar Water Heater SYSTEM: 1. stainless steel 304-2B inner tank, Galvanized steel outer tank.
2. Copper coils(single or two sides): Φ16mm,thickness1.0mm
3. Insulation thickness (mm): 55mm polyurethane Work Station of Solar water heater System: 1.Deluxe Solar Pump Station (Including Wilo Pump, Controller, Temperature Sensor, expansion vessel)System 1.Max. Pressure: 12bar; Operating Pressure: 6 bar100L 150L 200L 250L 300L 400L 500L House Heating System Separated Pressurized Solar Water Heater application

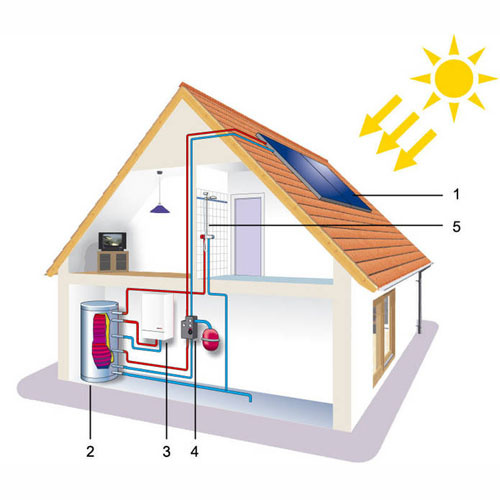

Work Principle of solar water heater system1. The collector absorbs solar energy and transmits it to the water tank through circulation.
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
