| Prod Model: |
MAHJONG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Vteam |
| Place Of Origin: |
Guangdong, China |
| Usage: |
Indoor and Outdoor |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
RoHS |
| IP Rating: |
IP66 |
| Pixel Pitch: |
40mm/55mm/80mm/110mm/160mm |
Product Description
Overview:

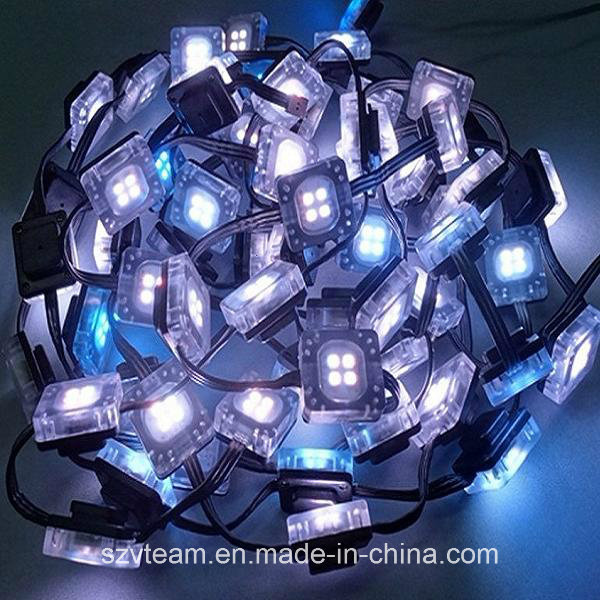

Mahjong is a kind of lightweight soft and flexible LED mesh screen, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc...It is high artistry and creativity that can be free to assemble into various shapes.
Main Features:
1. IP 66, suitable for permanent outdoor or indoor use.
2. The pixel pitch could be customer-made.
3. Rich installation accessories, flexible installation, adapting to different scenarios.
4. High permeability, go through light, air and smoke easily.
5. We could achieve the flexible application of dot, line and face.
6. No worry about the limitation of the application, we could achieve kinds of dysmorphism and test count.
7. It is best choice for the creative design company to achieve easier design and various applications by one product.
Applications:
1. LED video technology integrate with stage design;
2. Ceiling for clubs, hotels, and super malls;
3. Concert's background stage lighting;
4. Architectures decoration;
5. Both for indoor and outdoor.
|
Model |
MJ1 |
MJ3 |
MJ4 |
|
LED type |
RGB 3in1,1 LED |
RGB 3in1, 3 LEDs |
RGB 3in1, 4 LEDs |
|
Brightness |
3 cd/dot |
9 cd/dot |
12 cd/dot |
|
Max.Power Consumption |
0.45 W |
0.72 W |
0.9 W |
|
Max. pixel per string |
80 dots |
64 dots |
64 dots |
|
Pixel Dimensions |
30mm x 26mm x 16mm |
|
Fixed Pixel Pitch |
40mm/55mm / 80mm / 110mm / 160mm |
|
Custom Pixel Pitch |
≥40mm |
|
Viewing angle |
H120° V120° |
|
Color depth |
16 bit/color |
|
Refresh Rate |
≥1000Hz |
|
Gray Scale |
12 bit |
|
Control System |
AV, S-Video, VGA, CVBS, HDMI, DVI |
|
Operating Life |
50,000 hours(to >70% luminous output) |
|
Power supply |
AC110~240V, 50~60Hz,Meanwell |
|
Protection |
IP66 |
|
Work environment |
temperature -30~50°C, humidity 10-90%RH |
|
Certificate |
CE, ROHS, CCC |
|
Weight |
<15 g/dot |
