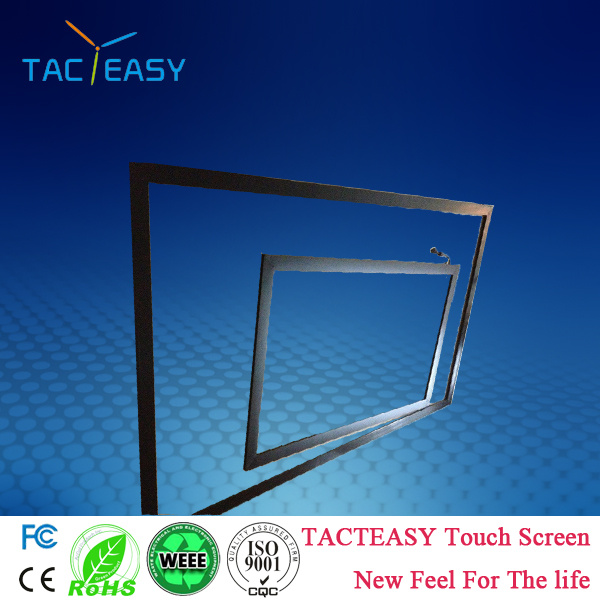

Smoothly Touch Infrared Frame Touch Screen (TT-55)

Smoothly Touch Infrared Frame Touch Screen (TT-55)
Price: US $ 200/Piece
Trade Terms: FOB,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: TT-55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Function: Smart Touch
Material: Aluminum
Certification: CCC

Product Description

Product Description:

Infrared(IR) touch screen operate on the mechanism of infrared LEDs arranged in arrays on two adjacent bezel edges of the PCB with photo sensors placed on the two opposite edges functioning as transmitters and receivers. The LEDs emit infrared rays simultaneously to form a grid of rays across the display. When the user wishes to send a signal through touch, he/she can do so by interrupting the light beams with a physical object. Since every infrared LED is independent, the touch screen is able to achieve positioning by analyzing the decrease in light at the corresponding photo sensors. The signal is then processed by the control circuitry and sent to the PC for the coordinates of the touch event to be displayed on screen or to be utilized by other software for relevant signal operation.
Features

ð Unique multi-touch function, real two point writing.
ð The resolution can reach 8012*8012; Write the small words clearly and truly.
ð Many gesticulation functions, applied widely, make full use of the human hands, which are the oldest and the realest tool.
ð Integrate with voting system, wireless tablet and visualizer. Actualize ideas of the interactive classes in order to make the teachers and students really interact.
ð Integrated SDK makes the second exploitation simpler; Satisfy all variety needs of different customers.
ð The material is exquisite, adopt the aluminium honeycomb as the basal plate, flatter and more reliable. Make sure the longevity can reach 5 years.
ð Nano Coating technology make boards serve dual purpose. Writing smoother with ink pens and wiping without any mark.
ð The outer frames adopt aluminum wiredrawing technology, good texture, and skillful craft.
Parameters
Basic Data Accessories
Boards Material Aluminum Honeycomb Pen and pointer Yes
Induction Type infrared TACTEASY Software CD Yes
Writing Type finger or pen USB Cable Yes
Positioning Accuracy =< 0.2mm User Guide Manual Yes
Touch Preciseness 8192*8192 Wall Mount Brackets Yes
Cursor Speed =>125dots/second stand optional
Transferring Rate 12m/s Hardware Features
Scanning Rate first point 25m/s  consecutive points 8ms Device driver version DL-USB
Consumption Current =<100mA Scanning form Auto start, always scanning
Stand USB Length 6m Version Latest available
Working Environment Direct under the sunlight Data Port USB /wireless RF2.4G/RS232
Dimensions
Model Scale Gross weight Net weight Outline Area (mm) Touch Area (mm)
TE-60 4:3 26kg 16kg 1366*1038 1230*902
TE-72 4:3 32kg 22kg 1612*1058 1476*1066
TE-72W 16:9 33kg 23kg 1776*1038 1640*902
TE-78 4:3 35kg 25kg 1776*1366 1640*1230
TE-78W 16:9 36kg 26kg 1858*1120 1722*984
TE-82 4:3 37kg 27kg 1858*1408 1722*1272
TE-88 4:3 38kg 28kg 1940*1530 1804*1394
TE-88W 16:9 39kg 29kg 2104*1284 1968*1148
TE-108W 16:9 48kg 38kg 2514*1530 2394*1354
Recognized as one of the leaders in the filed of interactive whiteboard, Tacteasy is offering the most competitive products and solutions for education & training, conferencing, business and government. Tacteasy is developing, manufacturing and selling interactive whiteboard, IR touch Frame touch TV/PC all in one.

After years' development, Tacteasy has owned Scientific regulation system, innovative R&D team and effective production lines. with the increasing of presentation tools, our interactive applications, especially the dual-user infrared interactive whiteboards are in demand and in popularity for educators who want to involve their students and worker in learning technology; It is a lover for education in 21st.

Accompany with Tacteasy, to be a Tacteasy, our aim is to meet and exceed the needs for you. This will result in long term and mutual-benefits relationship with clients all over the world.
