| Prod Model: |
HX-P5-SMD-ID |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320mm X 160mm |
| Module Resolution: |
40000dots/Sqm |
| Package Mode: |
SMD3528 |
| Max Power Consumption: |
25W |
| Gross Weight: |
0.21kg |
| Module Thickness: |
17.12mm/29.33mm |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
40,000 dots / m² |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
Product Description
P5 SMD Full Color LED DisplayProducts details1. High brightness which is adjustable to sufficiently meet the needs of various application environments.
2. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
3. Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements
4. All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade in front side to be IP65.
.
5. Display even after long-term use of perfect quality reproduction and enough brightness and white balance.

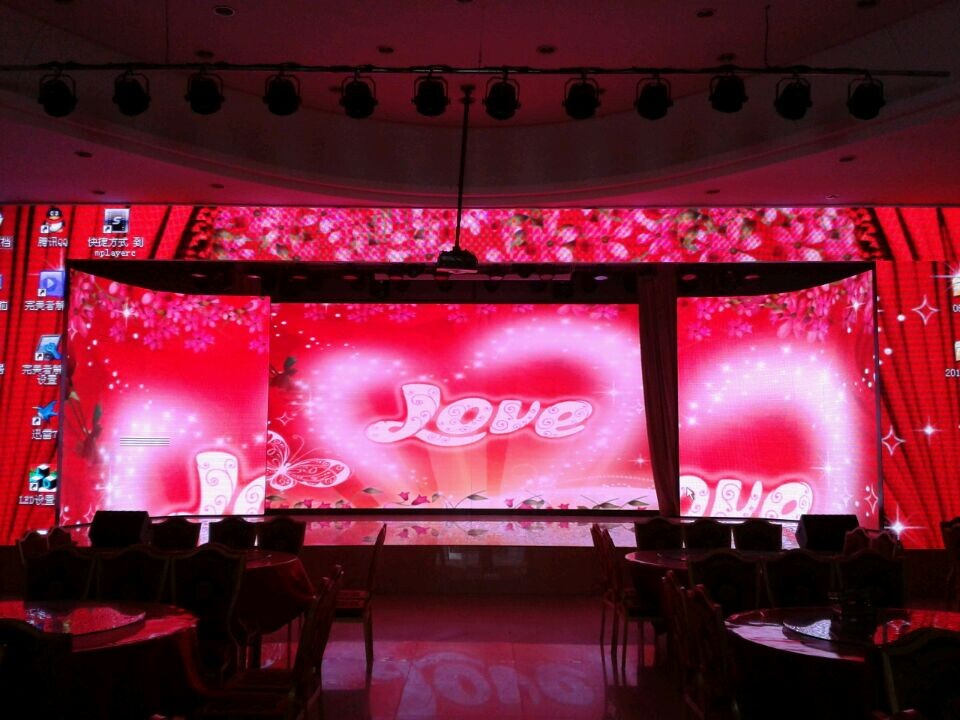

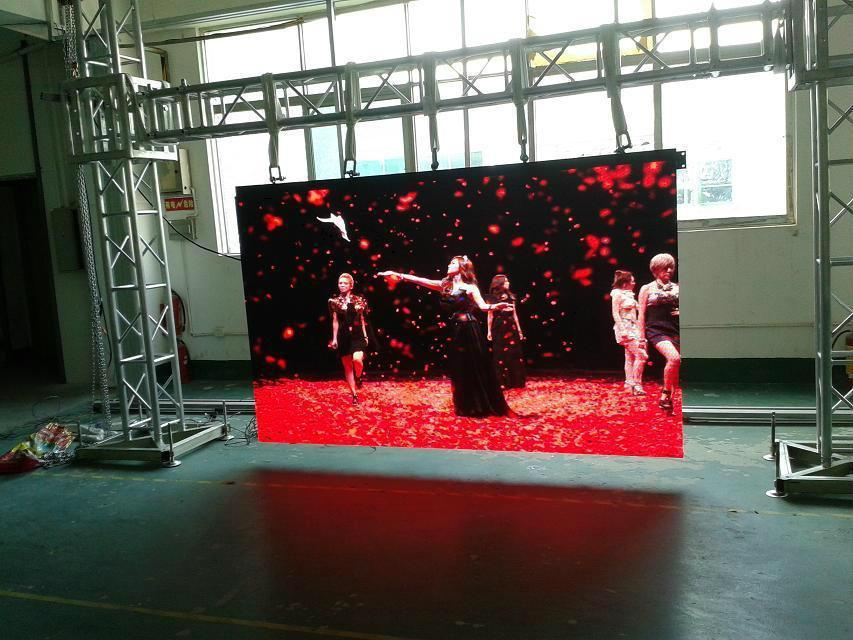

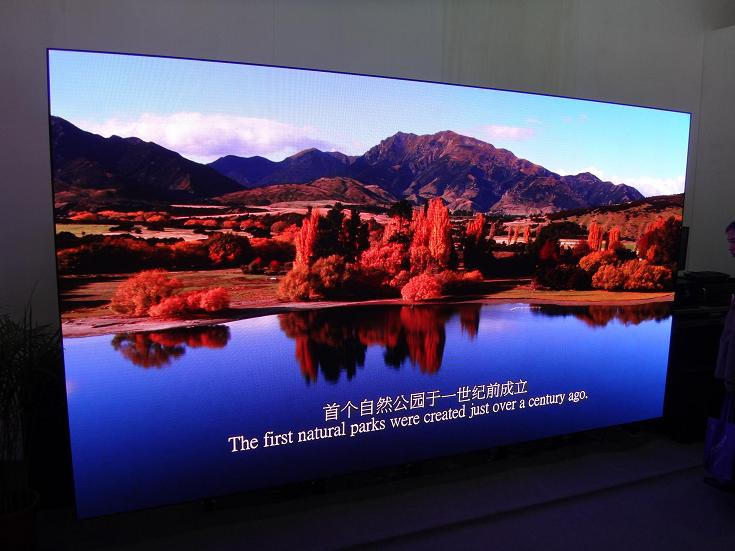

Application and functionSuit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1) Video display for advertisement
2) Live broadcast for news, sport, concert
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
Projects of p5 led module
| No. | Type | Full Color |
| 1 | Pixel Configuration | 1R+1G+1B |
| 2 | LED Type | SMD3528 |
| 3 | Module Resolution | 32pixels(H) ×32 pixels(W) |
| 4 | Module Dimension | 160(H) ×160 mm (W) × 160 mm (L) |
| 5 | Power Consumption(average) | 550w/ m 2 |
| 6 | Power Consumption(max) | 900 w/ m 2 |
| 7 | Density | 40000pixels/m 2 |
| 8 | Brightness | >2500 nits |
| 9 | Color | 16.7 M |
| 10 | Brightness Control | Manual/Auto |
| 11 | Gray Scale Rectification | r rectification |
| 12 | Picture Regulation | Contrast/Chroma regulation/Module brightness regulation |
| 13 | Drive Mode | 1/8 duty |
| 14 | Refresh Rate | 960HZ |
| 15 | Control Mode | Synchronization control |
| 16 | Video Interface | S-Video, VGA, DVI etc. |
| 17 | Life Time | 100,000 hours |
| 18 | Mean Time To Failure | >10,000 hours |
| 19 | Blind LED | None |
| 20 | Working Temperature | -35 °C ~+ 55 °C |
| 21 | Relative Humidity | 10%-95%RH |
| 22 | Display Flatness | The display : ± 1mm Gap between modules : 1mm |
| 23 | Display Information | Text, Video and Picture etc. |
| 24 | Voltage | 220V ± 10% , 380V ± 10% |
| 25 | Communication Distance | < 20km |
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
