| Prod Model: |
UC-U100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Frequency: |
GSM 850/900/1800/1900 MHz |
| Tracking Sensitivity: |
<-162dBm |
| Positioning Accuracy: |
5-10m |
| Emergency Call: |
Support Emergency Call to Guardian |
| Dimension: |
54.5*29*17mm |
| Screen Size,: |
5*16.6mm |
| SIM: |
Support Normal and Micro SIM |
| Antenna: |
Built in GSM and GPS Antenna |
| Mic: |
High Sensitivity Mic |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
Product Description

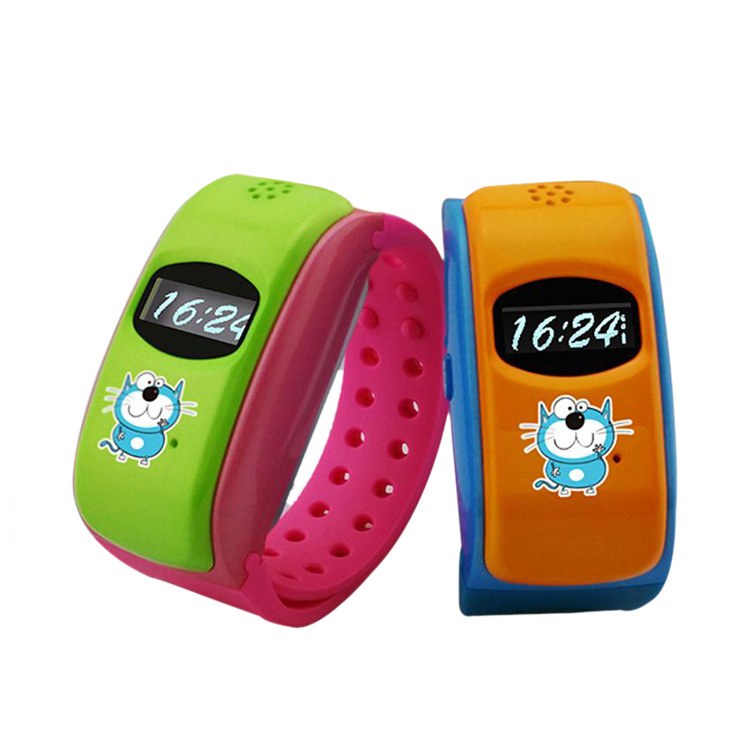

Product Model: U100
GPS
Receiver: L1:1575.42MHz C/A:1.023MHz
Channel number: 56 parallel channels
Tracking sensitivity: <-162dBm
Capture Time: Cold start 35 seconds, Hot start 1 second
Positioning accuracy: 5-10m Open area
Speed precision: 0.3 m/sec
GSM
Frequency: GSM850/900/1800/1900MHz
Emergency call: Support emergency call to guardian
Main parameters
Dimension: 54.5*29*17mm
Watchband: Rose red,Blue
Screen size: 5*16.6mm
Battery: Built in 400mAh polymer battery
SIM: Support normal and micro sim
Power in charge port: Support
Antenna: Built in GSM and GPS antenna
Speaker: No
MIC: High sensitivity MIC
Keyboard lights: No
Button: SOS(switch on/off,SOS,phone call,page up/down
Standby time: 50 hours
Call mode: One-way conversation
Phone book: 4 storage quantity
SMS: No
Ring: No
Multimedia Recording: No
Bracelet Setting
Remote Switch grab theft feature: Support
Remote Password Change: Support
Instruction Set Guardian: Support
Instruction emergency locator: Support
Open GPRS remote ON / OFF: Support
Packing List:
1 x G1000 Kid's Watch
1 x USB Cable
1 x User Manual
1 x Charger
Operation Instruction of the Wristband
1.1Setting Guardians (default password: 1234) and Adding Phone Numbers
Use the short message function to enter "guardians: password, phone number, phone number".
Up to two guardians can be set. After the setting, users will receive control directive sets. The control directives will be valid only when they are sent through the phones of the guardians.
Note:
An anti-theft and alarm message is a message automatically sent by the wristband to the guardians. The phones of the guardians must have the message receiving function.
1.2 Adding Phone Numbers
There are two methods to add phone numbers:
1. Use control directives to add phone numbers. Refer to "Quick Start".
2. Visit the COOMIX platform and choose "Deliver directives" -> "Set SOS phone number" to add phone numbers.
Notes:
l Phone number adding and deleting can be performed through control directive and COOMIX platform only.
l Up to four phone numbers can be added.
l Call can be made through the phone numbers of the guardians and SOS phone numbers. Other phone numbers cannot make call to the wristband.
l The incoming/outgoing call function is a unidirectional call function and it allows guardians to listen to ambient environment in a highly sensitive manner.
2. Silent Monitor
In case of an emergency, a guardian can use his/her phone to remotely switch the wristband to high sensitivity mode so as to listen to onsite environment and understand surroundings a kid is located and people. The wristband will not show any response.
Enabling silent monitor
Refer to "Quick Start" to understand related directives. After the guardian use his/her phone to send a directive to the wristband, the wristband will call back the guardian. Answer the call and the guardian can listen.
Note:
The silent monitor function is not shown in the function menu of the wristband.
3. Setting Anti-theft
After the anti-theft function is enabled, if the wristband is lost or stolen and inserted with a new SIM card, the wristband will automatically send a message to notify guardians.
Note:
The function can be realized only after guardians are set.
To enable the function, refer to "Quick Start".
4. Changing Password
By default, the wristband password is 1234. To change the password, refer to "Quick Start".
Notes:
l Remember and keep the password safe; otherwise, functions that require password authentication cannot be used.
l If the password is forgotten, contact local dealer or manufacturer.
5. Querying position
Enter correct username and password. After the page jumps to a required interface, click "Query position" and the map will mark the real-time position of the kid with the icon
6. Querying roadmap
To trace walk roadmap of the kid, do as follows:
Select a date (e.g. 2012-8-14)
Select a time period (e.g. 6:00:00~22:00:00)
Play roadmap (click "Play" and the wristband starts to play the roadmap the kid walked in that time period)
Fast forward/rewind (click corresponding button to control play progress)
Attachment: Icon description
base station location (LBS)
Notes:
l The satellite location function must be realized in outdoor space. In indoor environment, basement, and low floors of high buildings, the wristband cannot be located due to weak signals.
l Base station location can be realized within the coverage area of GSM signals.
7. Alarming
In an emergency, if a kid presses and holds the SOS button, the wristband will dial the four preset phone numbers one after another. Click "Alarm info." on the map, the location of the kid and the time of alarming will be shown in the form of an icon.
8. Delivering directives
Setting SOS phone numbers
l Click "Regain the latest number" and the system will automatically read the four phone numbers.
l Enter new numbers and click "Submit" to re-set SOS phone numbers.
Note:
Due to technical features, the preceding functions will generate GPRS flow. The area information shown does not have any legal binding or accountability and it is for reference only. The Company does not accept any responsibility or make any promise for deviation or incompleteness of area information.
9.Warning Area
Specify an area. The range of the area is 200~2000 m. If a family member enters or leaves this area, the app will send messages to other family members.
Specify an area. The range of the area is 200~2000 m. If a family member enters or leaves this area, the app will send messages to other family members.
