| Prod Model: |
LE16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collocation: |
MP3 Player with USB Input |
| Max Output Level: |
18dBm(1 kHz,Thd=0.5%) |
| Channel No.: |
2 |
| Mono Input: |
11 K Ohm |
| Stereo Input: |
100 K Ohm |
| Operation Mode: |
Knob Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
RoHS |
| Monitor: |
LED Screen |
| Noise: |
20Hz-20kHz |
| THD: |
<-0.005% |
Product Description

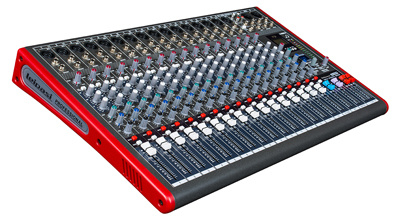

Smart LE16 with LED 16 channels professional audio mixing console LE16 description
(1) Ne0-classical British 3-band equalizer to get a warm soud ,music,highly.Analog mixer,high-quality ultra low noise circuit design,large headroom.
(2) Each channel has two auxiliary transmission:a pre fader for monitoring,a post-fader.
(3) All channels are equiped with peak LED,mute/alt 3-4 function.
(4) 2 subgroups with separate outputs,so that flexible grouping to impove.2 multi-functional stereo aux loopback interface,providing great flexibility.
(5) Balanced main mix with 6.3mm jack and gold-plated XLR connectors,separate contol room ,headphones and stereo tape outputs.
(6) Tape inputs lead to the main mix or contol room/headphone output.Durable 60-mm faders and sealed rotary contols streamlined.
(7) The use of flexible,with no noise,good transient response,low power consumpion characteristics.
(8) Rack mount cargo rack with the supply,flexibility,strong.High-qulity componnents and exceptionally rugged structure,the product durable.
Specification
| Total harmonic distortion | <-0.005% |
| Frequency response | 20hz-20khz+1db/-3db |
| Max output level | 18dbm(1khz,thd=0.5%) |
| s/n ratio | -81db |
| Gain control mono | -51db~0db |
| stereo | -26db~0db |
| Residual output noise | <-83dbu |
| crosstalk | <-79dbu |
| Earphone output power | 260mw(1khz,thd=0.5%,200Ω) |
| EQ lf | 80hz+/-15db |
| mf | 250hz~6khz+/-15db |
| hf | 12khz+/-15db |
| Input&output mic input | 2.4kΩ |
| Mono input | 11kΩ |
| Stereo input | 100kΩ |
| Impedance output | <=75Ω |
| Power consumption | 35w |
| Our Advantage | 1.We are professional audio factory, so we can provide the compitive price to you.
2.we focus on middle and high-end items and ensure every product made by the the superior material. we have strict quality control system to avoid quality problems.
3.There are many types you can choose ,if you have you own designed idea,we also accept the OEM order
4.Little order is availiable |
| The Sample | About the sample, buyer need to charge the sample and freight fee. |
| The Shipping | 1.Express
2.Air shipping
3.Sea shipping |
| The Lead-time | 1.Small order and sample:5-7days
2.Big order:30-45 days |
| Payment | T/T (T/T:30% deposit before producing ,the balance paid before shippment) |

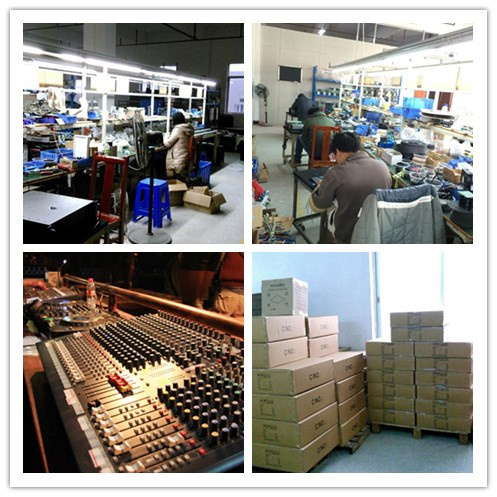

Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
