| Prod Model: |
WG1056IC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Card |
Product Description

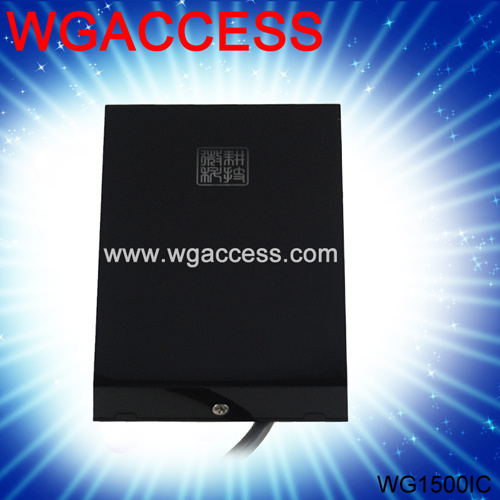

Smart IC Card Reader
Main Features:
Card read distance: Up to 8 cm. Read all 26 bits EM cards.
Interface: 26 bits Wiegand.
Maximum cable distance to cont rolle r: 100m. Type of cable: 8 wires shielded cable, 22 AWG.
Operating Voltage Range: 9 - 16 VDC
Reader consumption: Standby: 85mA, Read: 100mA.
Built-in audible buzzer acknowledging card reading and bicolor LED acknowledging access.
Hidden mounting screws deters vandalism.
|
Smart Card Reader |
|
Type |
WG1056 |
WG1500 |
|
Dimension |
113mm*75mm*16mm |
113mm*75mm*16mm |
|
Color |
Black |
Black |
|
|
Smart Card Reader
with Keypad |
|
Type |
WG1029DH |
WG1029DB |
|
WG1029CH |
WG1029CB |
|
Dimension |
108mm*88mm*26mm |
108mm*88mm*26mm |
1.4-8cm range proximity reader for inside or outside installations,includes leds and buzzer for feed-back signal.
2.WIEGAND Reader offers superb reliability,consistent reading range and low power consumption in a easy to install package.
3.Remarkably cost-effective ,the feature-rich WG1056 and WG1029 are compatible to EM card format. WG1200 compatible to Mifare card format.
4.The Wiegand Readers provides benefits and features rarely found in readers at this price range. The Wiegand is compatible with all WIEGAND controllers.
5.Attractively designed and remarkably compact, the Wiegand reader is the smallest member of the WIEGAND family of readers. Wiegand reader unobtrusive size blends easily with any design, and is weather resistant. |
|
Type |
WG1056 |
WG1500 |
WG1029DB |
WG1029CB |
|
WG1029DH |
WG1029CH |
|
Frequency |
125 Khz |
13.56 MHz |
125 Khz |
13.56 MHz |
|
Read Range |
up to 8 cm |
up to 6 cm |
up to 8 cm |
up to 6 cm |
|
Output Interface |
26 bits Wiegand |
26 bits Wiegand |
26 bits Wiegand |
26 bits Wiegand |
|
Operating Temp Range |
-35°C to 65°C. |
-20°C to 65°C. |
-20°C to 65°C. |
-20°C to 65°C. |
|
Keypad |
- |
- |
Yes |
Yes |
