| Prod Model: |
UX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Form: |
Health Smart Watch |
| Dimensions: |
52.5*38.3*10mm |
| Weight: |
52g |
| Screen Size: |
1.44' |
| Heart Rate: |
Yes |
| G-Sensor: |
Yes |
| Bluetooth: |
Bt4.0 |
| Style: |
Watch |

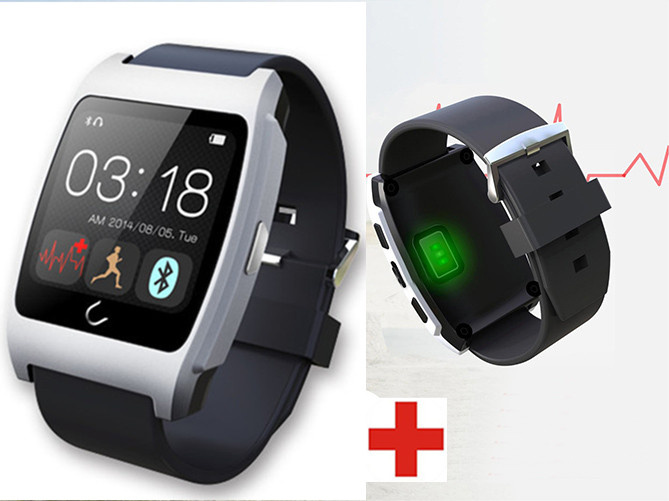

Product Description
Hotpoints:
1.Health Bluetooth Smart Watch, MTK2501,108MHz
2.RAM+ROM:32MB+24MB
3.Bluetooth 4.0, Bluetooth Call: Dial/Phonebook/Call History/Reject Calls
4.Health Function: Heart Rate, Direction Finder,Sleep monitor,Stopwatch,Pedometer
5.Remote Camer Support,Via Bluetooth Remote Control Cell Phone Camer
6.Remote Notifier Sync SMS,Gmail,CNN APP, ZAKER,LINE, Facebook, Instugrate,Facebook Message
QQ,Wechat,360 etc.
Descriptions:
The Product is a Smart Bluetooth Watch Phone SYNC Bluetooth 4.0 with Comprehensive System of a Convenient Lifestyle to Record the Real-time Data Such as Heart Rate(Sensors mounted on the strap,Healthy),Pedometer, Sleep Monitor, Sedentary Reminder When You Walking,Sleeping or Working etc. In the Background,SYNC Smart Phone or Computer Via Bluetooth Wireless.It is Application to Dailylife,Work,Travel,Sleep,Outdoor Avticity with More Informations Bring a Better Life.
System Physical Standard Configuration |
| Type | Details | Descriptions |
Product Form | Product Form | health smart watch |
| Dimensions | 52.5*38.3*10mm |
| Weight | 52g |
| gift box size/gross weight | 135*75*60mm(/52g+144g=196g) |
| gift box size/gross weight | 325*170*165mm |
LCD Panel | Screen Size | 1.44' |
| Screen Resolution | 128*128 |
| Screen Material | TFT |
| Touch Panel | Touch Module | Single+Gesture |
| Battery | Type | polymer battery |
| Capacity | 3.7V/250mAh |
| System hardware configuration |
| Type | Details | Descriptions |
| CPU | Type | MTK2501 |
| Speed | 108MHz |
| RAM | SRAM | 32MB |
| ROM Flash | NOR Flash | 24MB |
| Heart Rate | Built-in | Yes |
| G-sensor | Built-in | Yes |
| Compass | Built-in | Yes |
| Bluetooth | Built-in | BT4.0 |
| Interface Configuration |
| Type | Details | Descriptions |
| Headphone jack | Music output | Support |
| DC connector | Power | Micro USB (5 pin) |
| Keys | Three physical buttons | Confirm/back/power,reset |
| A Light touch key | Confirm/main menu |
| Software Configuration |
| Type | Details | Descriptions |
Software Feature | Operation System | Nucleus |
| Phone Book | 1000 |
| Phone Call | Support (Need earphone) |
| SMS | Support (Need APP) |
| SMS | Support (Need APP) |
| Time Sync. | Support |
| Call History | Support |
| Music Player | Support |
| Set Time/Date | User-defined |
| Alarm | Support five sets |
| Remote Camera | Support |
| Compass | Support |
| Sleep monitor | Support |
| Stopwatch | Support |
| Pedometer | Support |
| Language | Default China and English(Multi language support) |
| Heart rate | Support |
Smart Phone
Information notification | Gmail, CNN APP, ZAKER
LINE, Facebook, Instugrate,Facebook Message
QQ,Wechat,
360 etc |
| Necessary Accessories: Earphone USB data cable |
IHD company (Koshiro) specialize in Smart Wearable & Health Life Product field for several years, with good quality and pretty competitve price, with the professional designs and a big production capacity.
IHD company (Koshiro) is one of the leading manufacturer of electronic products in China. We have our own R&D Dept and have a group of highly experienced, passionate technical personels and have a professional export team which can provide OEM and ODM services and professional export services.
We have our all workshops for design to production, such as moulds making, plastic injection, CNC prototype making, Silk printing, Painting spray, SMT, Hardware making and final mass assembling line, which enable us to provide one-stop OEM & ODM services all in house.
All key parts for our smart watch/activity tracker are imported from other countries, e. g. CPU from NEC Japan and 3D sensor from Bosch Germany.
We warmly welcome you to be our OEM & ODM partner.
