| Prod Model: |
WG606 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
512MB |
| Type: |
SD Card |
| Interface: |
USB |
| Card Slots: |
All in 1 & Multi in 1 |
| Installation: |
External |
Product Description

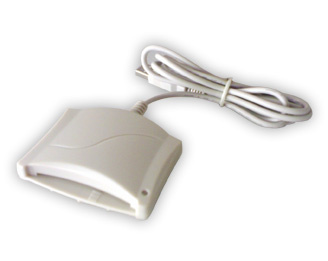

The WG606MF includes RS232 and RS485 connections. It can be used as a whole product, and also as a chip-set module without casing, suitable for integration into any other equipment. It includes an antenna, LEDs and a buzzer. All the Mifare cards can be read and written. The ISO 14443 type A and B cards can alsobe accessed on request. It also can be used for parking-meter, door-control, transportation, oil-control and access control identifications.
Specifications:
1) Frequency: 13.56 MHz
2) Operating range: 0 C to +50 C
3) Storage range: -40 C to +85 C
4) Humidity range: 30 % to 95 % non condensing
5) Size: 30mm (height) x 110mm (width) x 145mm (length)
6) Host interface Serial: RS232 or RS485
7) Power supply voltage: DC5V or 12V
8) Power supply current: <100mA
9) BPS: 9, 600 - 115, 200BPS
10) Support cards MF1S50/70, MF Light, MF PRO, ultralight, SLE44R35, SLE44R31, IS014443 type B
11) Operating distance: Up to 5 cm, typical 2.5 cm
12) OS: Windows 98 / ME / 2000 / NT / XP Sco UNIX, Linux
Zhejiang Wangu Technology Co., Ltd., established in 2001, is mainly specializing in manufacturing smart cards and correlative smart cards business series products. It located at Economic and Technical Development Zone WenZhou in ZheJiang province in China, it has an area over 20000 square meters. It has various certificates which is awarded by national ministries or international organizations. Such as: It passed ISO9001: 2000 certification by TUV in Germany, obtained China national IC card manufacture license, and IC cards manufacturers register certificate from China national IC card registration center and IC cards manufacture license from China Ministry of Construction.
Zhejiang Wangu Technology Co., Ltd has developed at very rapid speed since establishing. Now it is extending to research and develop the diversified products according to the company developing route and it is applying for Group Co., Ltd. Now it owns the following filiales: Zhejiang Wangu Tech., Wangu Car Parts, Wangu Media, Wangu Electronic Equipment Company and Wangu Trade. Wanggu Trade Company has an International trade company. Our products sold worldwide, sold America, Southern Africa, England, Australia, UAE etc.
Zhejiang Wangu Technology Co., Ltd development tenet is to Be innovative with technology, Be prosperous by expanding brand² BhIts promise is Superior quality, Topping service, strict management and favorable price² Its business philosophy is Today's Wangu, Tomorrow world's factory.
