| Prod Model: |
CLA-09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Fashion Colors |
| Weight: |
0.4kg |
| External Panel: |
Easy to Clean |
| Operation: |
Press Type |
| Structure: |
Floor Standing |
| Usage: |
Car |
| Air Volume: |
<50m³/h |
| Type: |
HEPA Filter |
| Certification: |
RoHS |
| Application Area: |
11-20m² |
| Power Source: |
Vehicle Power Supply |
| Operating Principle: |
Active + Passive |
| Purifying Technology: |
HEPA |
| Anion Density: |
3000000pcs/m³ |
Product Description

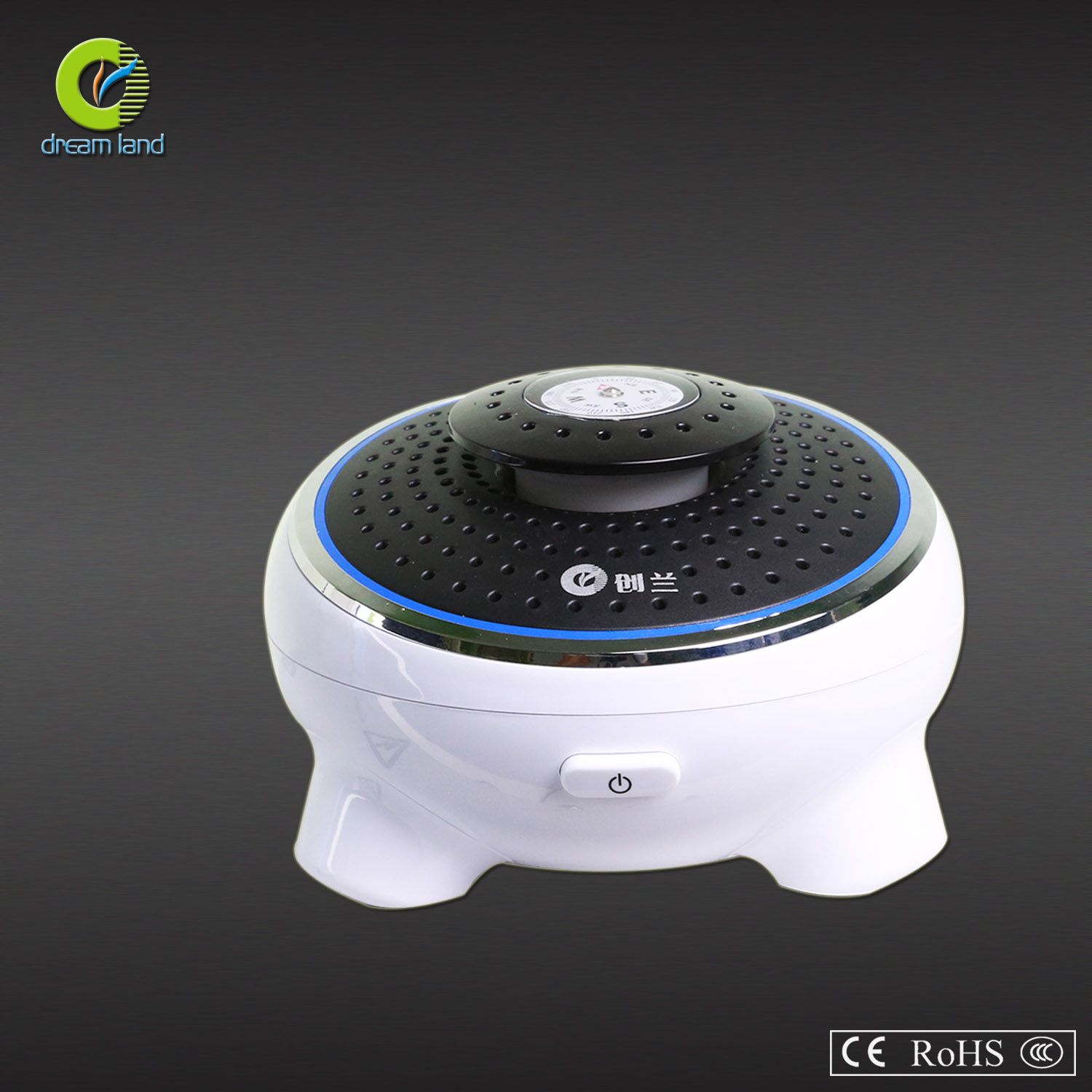

Smaller car air purifier(CLA-09)
Specifications
1. 7 stages filter to clean the air
2. Adjustment of air speed
3. remote controller
4. remove pet odor, pollen
Features:
(1)Anion generator.plasma technology using positive and negative ions to purify air
(2)HEPA filter of high efficiency
(3)UV lamp
(4)Formaldehyde filter
(5)Activated carbon filter-Highly effective
(6)Nano Silver
(7)Air qiality intellignent sensor
(8)Adjustment of air speed
(9)Remote control,time setting
| Model | CLAC-09 |
| color | White |
| voltage | DC12V |
| cord length | / |
| Power consumption | <3W |
| suitable area | 0~10 |
| fan speed | / |
| filters stages | four stages |
| filters | HEPA+Activated carbon+ formaldehyde+ nano silver+negative ion |
| Air Flow Rate | 20m³/h |
| CADR | |
| Noise | 28dB(A) |
| cover material | 121HABS |
| Formaldehyde Decomposition rate | 96% |
| PM2.5 capture | 99% |
| Negative ion | 10 million ions/cc |
| Product size | 120*120*65 |
| Net weight | 0.4kg |
| Gross weight | 0.65kg |
| Children lock | |
| Extra function | |
| Packing Size | 170*130*90mm |
| Loading quantity per 20'/40'/40'HQ | 12672/26496/29808 |
more details:
1, Pre-Filter
Adopting non-woven cotton material
2, Antimicrobial Filter
The 5 microns filter with antimicrobial agent can efficiently kill bacteria in the air with efficiency more than 99%.
3, High efficiency HEPA Filter
The precision of the HEPA filter is 0.01 micron, and it is able to eliminate particles which are larger than 0.01micron with the filtration rate of 99% or more. Dust, bacteria, fungi, viruses, allergens and other small and tiny particles are not able to get through the HEPA filter. It can also remove smoke smell.
4, Cold Catalyst Filter
The product is of non-toxic, non-corrosive and non-inflammable. It works under normal condition and produces only water and carbon dioxide.
5, Cellular-Activated Carton Filter
It has good absorption and dust collection characteristics with more than 98% absorption rate of Benzene, toluene, xylene, formaldehyde, ammonia etc harmful gas.
6, Anion Release
7, Ultraviolet Sterilize Light
8, Humidifier
The unit comes with humidification function. User may turn on the humidification function in a dry weather.
9, Intelligent Odor Sensor System
It can automatically adjust the fan speed according to the air quality
Display: Red, Orange, Green.
Installation instructions:
1.Full in the date of initial use on the label.
2.Open the front panel.
3.Take out the 3 kinds of filter screen, and remove their packing bags.
4.Install filter screen (3 kinds).
5.Install the front panel.
6.Take out the power cord.
