| Prod Model: |
CA4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
White Black |
| Slew Ration: |
20V/U S |
| Damping Factor: |
>400 |
| Type: |
Professional Amplifier |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Conductive Mode: |
AB |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description

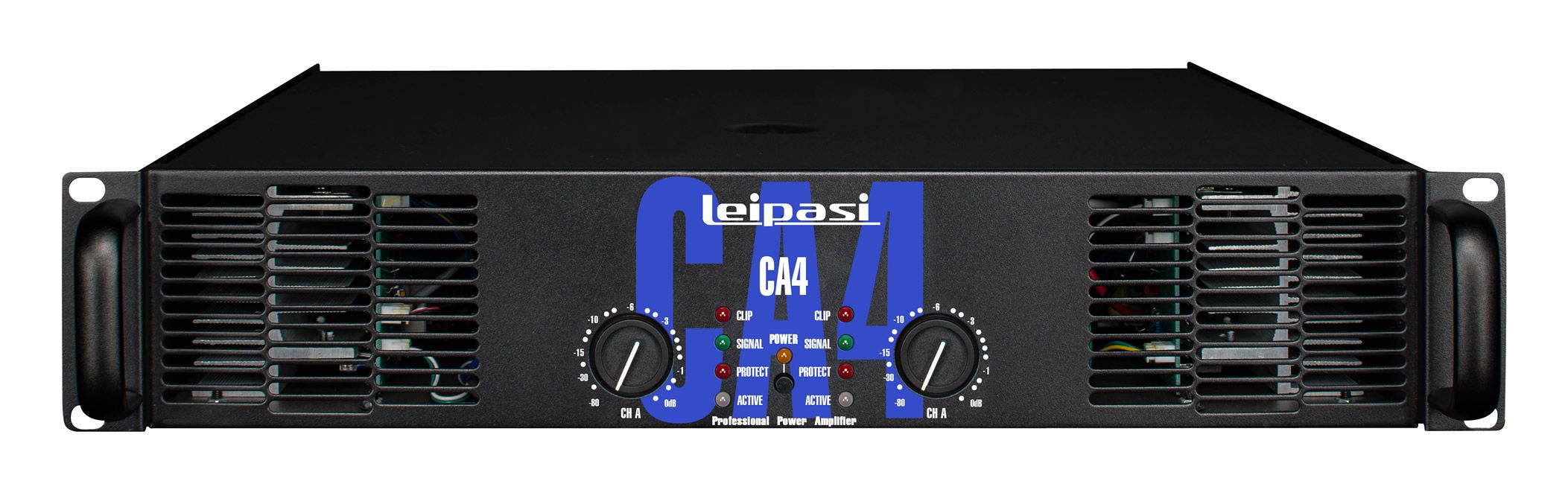

small watt popular power amplifier CA4
Feature
1.It is the power amplifier that use SMD technology
2.Superior materials like Toshiba and pure transformer
3.Mode selector is available for stereo,parallel and bridged-mono operation
Model | CA2 | CA4 | C6 | CA9 |
| Stereo power 8Ω | 2x150W | 2x250W | 2x400W | 2x520W |
| Stereo power 4Ω | 2x225W | 2x375W | 2x600W | 2x780W |
| Stereo power 2Ω | 2x270W | 2x500W | 2x800W | 2x1040W |
| 8Ω BLT | 450W | 750W | 1200W | 1560W |
| 4Ω BLT | 540W | 1000W | 1600W | 2080W |
| Frequency Response | 5-20K+/-0.5dB | |
| THD+N | <0.05%@8Ω 1KHz 1/4Po |
| S/N Ratio | |
| Slew Ration | 20V/u S |
| Damping Factor | >400 |
| Crosstalk | >60dB@8Ω 1 KHz |
| Input Impendance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuit,DC,limit and-softstart,Output relay-zero Current Switch,Intellctual Clip limiter |
| Gross Weight | 21KG | 23KG | 26KG | 27.5KG | |
About us
1. All the products have proceeded aging test before shippment and we guarantee to use our products safety.
2. OEM&ODM order are welcomed, we will try to support you for all kinds of customized requirements.
3. Support imprint your logo on the produts.
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
