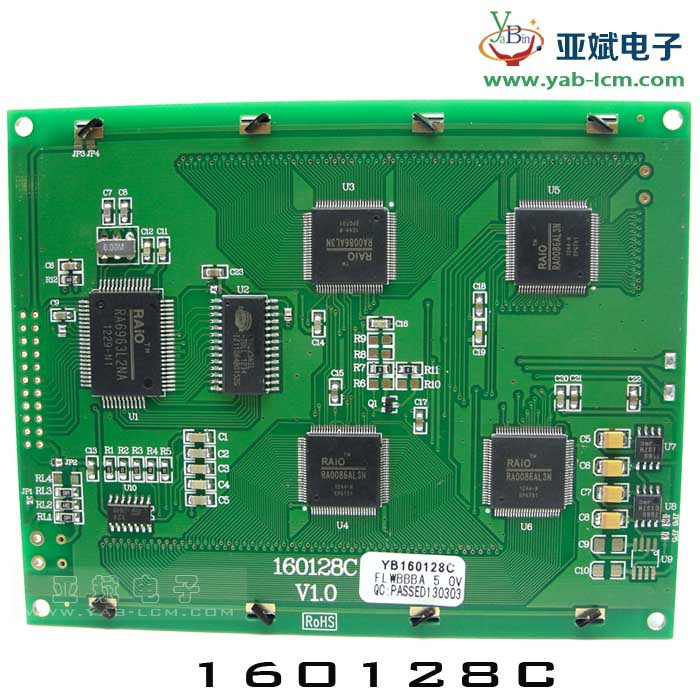

Small Size 160 * 128 LCD Display (3.3V/5V optional)
| Price: |
US $ 21.37-25.08/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
YB160128C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
160X128dots |
| Outline Dimension: |
129*102*17mm |
| Visual Area: |
101*82mm |
| Active Area: |
92.76*74.2mm |
| Diagonal Size: |
5.1 Inch |
| IC Or Equivalent: |
Ra6963c/T6963/Uci6963 or Equivalent |
| Interface: |
6800 8-Bit/8080 8-Bit Parallel |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ): |
3.3V/5V |
| Application: |
Electronic Instruments |
| Aspect Ratio: |
5:4 |
| Feature: |
LED Backlight Display |
| Type: |
STN |
| Widescreen: |
Not Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Screen Size: |
5.1 |
| Optimum Resolution: |
160*128 |
| Interface Type: |
Parallel |
Product Description
1.The product description
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB160128C |
| Display Format | 160X128Dots |
| Outline Dimension | 129*102*17mm |
| Visual Area | 101*82mm |
| Active Area | 92.76*74.2mm |
| Diagonal Size | 5.1 inch |
| Dot (Pixel) Size | 0.54*0.54mm |
| Dot (Pixel) Pitch | 0.59*0.59mm |
| IC Package | SMD |
| IC or Equivalent | RA6963C/T6963/UCi6963 or Equivalent |
| Interface | 6800 8-bit/8080 8-bit Parallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 120mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
2.the interface definition
| ITEM | SYMBOL | LEVEL | FUNCTION |
| 1 | EG | 0V | Frame Ground |
| 2 | VSS | 0v | Power Ground |
| 3 | VDD | 5.0V | Power Supply For Logic |
| 4 | V0 | - | Contrast Adjust |
| 5 | Vout | - | Negative Power output For LCD Driving |
| 6 | /WR | L | Write Sigmal |
| 7 | /RD | L | Read Signal |
| 8 | /CE | L | Chip select signal |
| 9 | C/D | H/L | H: Data L:command |
| 10 | HALT | H/L | H:Normal display L:Stop oscillation of clock |
| 11 | /RST | L | Reset Signal |
| 12~19 | DBO~DB7 | H/L | Data Bus |
| 20 | NC/BLA | - | No Connection/Or used as LED Backlight anode |
| 21 | LEDA/NC | 5.0V | Power Supply For LED Backlight/Or left open |
| 22 | LEDK/NC | 0V |
3.The cost calculation
| 1.Material cost breakdown |
| Product model | YB160128-C | specifications | yellow-green/blue 5V
(standard configuration) |
| Items | price(USD) | Items | price (USD) |
| Print circuit board | 1.31 | electronic element | 1.5 |
| Liquid Crystal Display | 5.41 | Integrate circuit (IC) | 2.2 |
| Iron box | 0.26 | Chip on board assembly
(independent production) | 2.5 |
LED backlight
(independent production) | 1.48 | production cost
(SMT+COB+assembly+packing) | 2.5 |
| Conductive article | 0.14 | material loss | 1.28 |
| cost of total amount | 18.58 |
| 2.Market pricing |
| Minimum quantity (PCS) | Rate of profit(%) | total profit (USD) | Ex price (USD) |
| 1-49(sample) | 35% | 6.50 | 25.08 |
| 50-99(Small batch) | 30% | 5.57 | 24.15 |
| 100-499(Small batch) | 25% | 4.65 | 23.23 |
| 500-999(big batch) | 20% | 3.72 | 22.30 |
| More than 1,000(big batch) | 15% | 2.79 | 21.37 |
If there is disagreement on the above price please contact me with details, thank you! |
4.sphere of application
| 1. Used for temperature humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter. |
| 2. The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie. |
| 3. The massager, treadmill, fat meter. |
| 4. Air conditioning, microwave ovens, remote control. |
| 5. Learning machine, electronic dictionaries, calculators. |
| 6. Nc tanker, industrial computer. |
| 7. Video games, calendar, clock and watch all sorts of instruments and meters, such as financial communications, health care instrument. |
5.Company Profile
| shen zhen yabin demonstrated technical co.ltd is a production enterprise with high and mew technology ,specialized in the development,design,production and sales of the liquid crystal display monitor and module (LCD/LCM) |
| 1. The pen sections of display module series (TN, HTN, mode) |
| 2. The character dot matrix LCD module series |
| 3. The graphic dot matrix display module series (COB, COG, etc) |
| 4. The OLED dot matrix display screen |
| 5. TFT color screen and industrial control screen series |
6. It can customize according to the requirements of your company processing all kinds of liquid crystal display module
|
6.FQA
| A. ask: are you a factory or trading company? |
| Answer: we are a factory |
| B.ask: do you provide product stable? |
| Answer: long-term guarantee continuity of supply. We guarantee that supply long-term supply continuity and never end. Some controllers, integrated circuit may stop production, we will do everything to try to find completely compatible. If the equivalence is unavailable,we will make the new tool and use the most similar IC as a substitute. So you don't have to worry about even if you study for a long time. |
| C.ask: what time can you make delivery? |
| Answer: we can be in 7 to 15 working days according to the size of your order quantity and delivery on schedule. |
| D. ask: what kind of check can provide? |
| Answer: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party. |
| E.ask: what is your warranty period? |
| Answer: shenzhen yabin electronics provides a year of quality assurance,products from the purchase date, unless it is due to the force majeure and human factors. |
