| Prod Model: |
LAIAO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tempreture: |
20c to -40c |
| Type: |
Customer-Made Type |
| Usage: |
Coldroom and Freezer |
| Cooling Method: |
Air Cooled Water Cooled |
| Certification: |
CCC |
| Condition: |
New |
| Temperature: |
-40c to 20c |
| Size: |
10~10000m3, 10m3~100000m3 |
Product Description

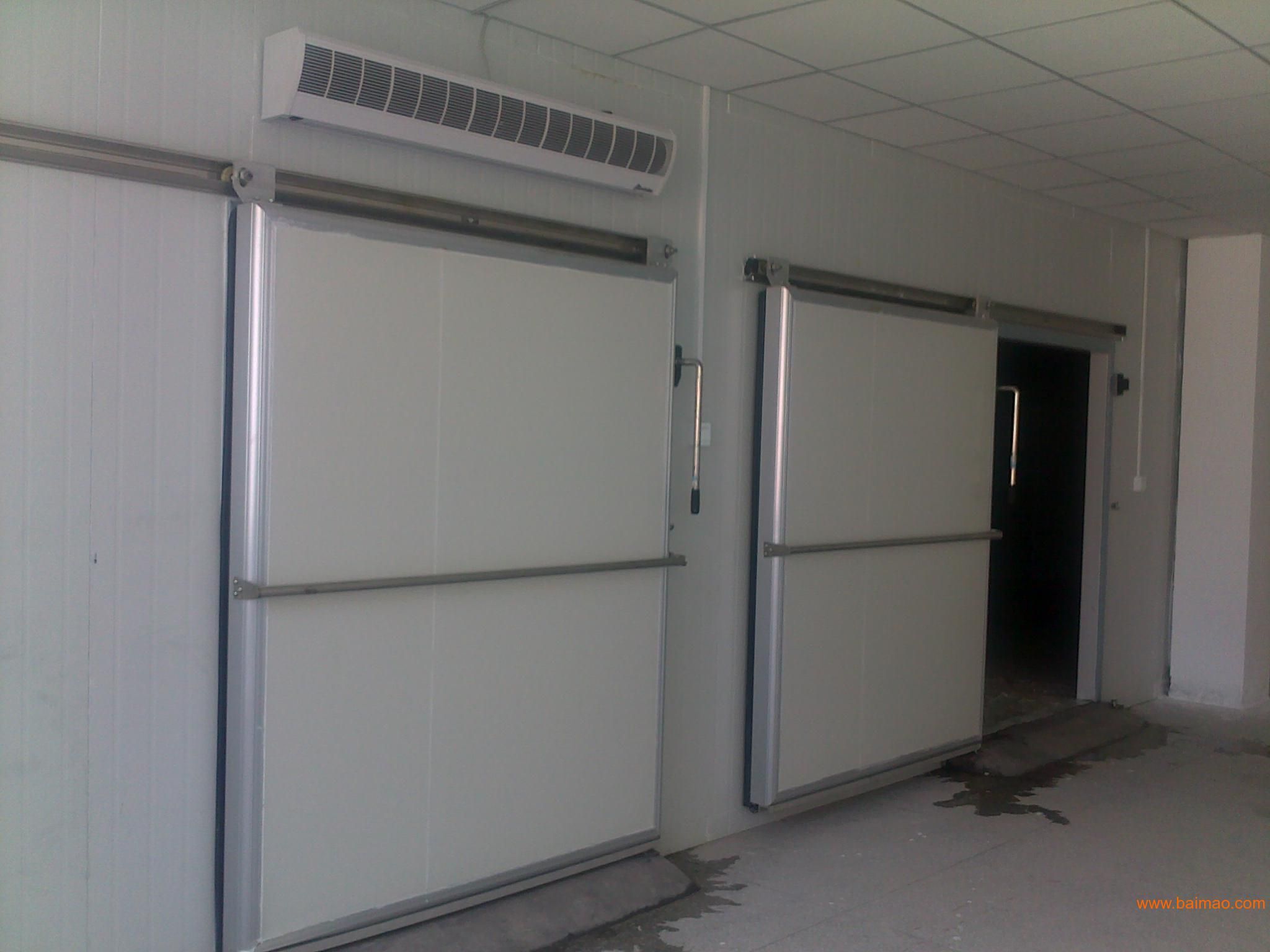

Durable and multi-store cold room storage building.
Detailed Product Description
"Top-10 brands in China"
Bitzer Germany compressor.
Dafoss Denmark controller
ALCO. LG.
Features:
1. Temperature range: -40º C ~ + 20º C are all available
2. Size: Customization
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency.
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5 º C ~ + 10 º C
Freezer storage temperature: -25 º C ~ + 18 º C
Quick-frozen storage temperature: -40 º C ~ + 18 º C
The Constant temperature: Customer's request
Storage of produce: Customer's request
Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
Evaporator: air cooler.
Insulation Panel: PU, EPS
Other accessories: World-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Advantages:
Laiao cold room was honored with "Top-10 brands in China" in 2007.
Laiao is one of the few companies in China which have "First-grade Qualification for Cold Room Installation".
Application fields:Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.
Customized cold storage
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+20degree C, optional |
Purpose of cold room |
fruit,vegetable,flower etc / frozen food, fish,meat ,chicken etc. |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Shanghai Laiao Refrigeration Equipment Co., Ltd. Dated in 2005, is the manufacture which professional in research, development and manufacture of refrigeration equipment, design and construction of cold storage and relevant refrigeration projects, production of thermal insulation materials.
Main Business:
1. Construction of Cold Storage;
2. Installation and adjusting of refrigeration equipment with pipes, etc. Refrigeration Equipment including: All kinds of Screw Type and Piston Type Multi-connected Compressors, Air-cooled Type and Water-cooled Type condensers, Salt water sets and matched power- controlling system. Constructional Products: XPS insulation plates, colored steel sheet, C-shaped steel, light-weight steel structure, profiled steel sheet, profiled plastic strips special for gas-adjusting room, etc.
Advantages:
Laiao cold room was honored with "Top-10 brands in China" in 2007.
Laiao is one of the few companies in China which have "First-grade Qualification for Cold Room Installation".
"Global Top-500" Customers:
KFC, 3M, IKEA, Rohm&Haas
Application fields:
Food industry, chemical industry, pharmaceutical industry, electronic industry and so on.
