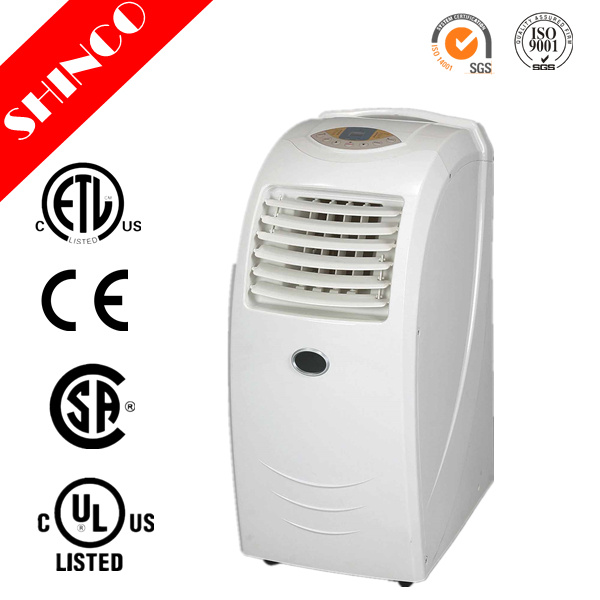

Small Mobile Portable Air Conditioner with UL Approved

Prod Model:	YPC1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Cooling, Heating, Dehumidify, Fan
Ypc/Ypc1-07c(H)-1:	7000BTU/2050W
Ypc/Ypc1-09c(H)-1:	9000BTU/2600W
Ypc/Ypc1-12c(H)-S-1:	12000BTU/3520W
Type:	Portable Air Conditioner
Usage:	Room
Indoor Machine Noise:	>50dB
Certification:	BEB
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New
Capacity:	9000BTU-15000BTU

Product Description

Construction Features
1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Remote control could be put aside in the small compartment.
4.Power cord and plug could be put into the machine after use.

Other Features and Functions
1. Rectangular shape looks handsome and silver-printed housing appears luxury.
2. Reversible LCD, indicating temperature and operation status.
3. Anti-frozen function under cooling.
4. Self-diagnosis function and 24 hour On/Off timer.

Color
silver,white

Loading Quantity
20"/40"GP/40"HQ: 120/248/371

Technical Parameters for European Market
Model		Unit	YPC/C1-07C-1	YPC/C1-07H-1	YPC/C1-09C-1	YPC/C1-09H-1	YPC/C1-10C-1	YPC/C1-10H-1	YPC/C1-11C-S-1	YPC/C1-11H-S-1	YPC/C1-12C-S-1	YPC/C1-12H-S-1	YPC/C1-15C-1	YPC/C1-15H-1	YPC/C1-17C-1	YPC/C1-18C-1
Cooling capacity		Btu/h	7000	7000	9000	9000	10000	10000	11000	11000	12000	12000	15000	15000	17000	18000
		W	2050	2050	2600	2600	2930	2930	3220	3220	3520	3520	4400	4400	4980	5280
Heating capacity		Btu/h	N/A	8000	N/A	10000	N/A	11000	N/A	13000	N/A	13000	N/A	16500	N/A	N/A
		W	N/A	2340	N/A	2930	N/A	3220	N/A	3550	N/A	3870	N/A	4840	N/A	N/A
Power Supply		V~,Hz,Ph	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1
Rated input	Cooling	W	840	840	1050	1050	1150	1150	1400	1400	1400	1400	1950	1950	1850	1950
Rated Current	Cooling	A	3.8	3.8	4.2	4.2	4.3	4.3	6.2	6.2	6.5	6.5	7.3	7.3	7.5	7.8
Rated input	Heating	W	N/A	900	N/A	1000	N/A	1000	N/A	1460	N/A	1460	N/A	1980	N/A	N/A
Rated Current	Heating	A	N/A	4.1	N/A	4.2	N/A	4.3	N/A	6	N/A	6.4	N/A	8.5	N/A	N/A
EER for Cooling(R410A)		Btu/W.h	8.9	8.9	8.9	8.9	8.9	8.9	9.2	9.2	9.2	9.2	9.2	9.2	10	10.5
		W/W	2.62	2.62	2.61	2.61	2.61	2.61	2.61	2.61	2.61	2.61	2.61	2.61	3	3.1
COP for Heating(R410A)		Btu/W.h	N/A	9.6	N/A	9.6	N/A	9.6	N/A	9.6	N/A	9.6	N/A	9.6	N/A	N/A
		W/W	N/A	2.8	N/A	2.8	N/A	2.8	N/A	2.8	N/A	2.8	N/A	2.8	N/A	N/A
Moisture Removal		L/h	0.8	0.8	1	1	1	1	1	1	1.2	1.2	1.4	1.4	1.8	2
Air Circulation		m³/h	360	360	425	425	425	425	450	450	450	450	650	650	650	580
Noise	High	dB(A)	52	52	52	52	52	52	52	52	52	52	56	56	56	56
	Middle	dB(A)	50	50	50	50	50	50	50	50	50	50	54	54	54	54
	Low	dB(A)	48	48	48	48	48	48	48	48	48	48	50	50	52	52
Body Size	W×H×D	mm	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	318×710×528	370×815×595	370×815×595	370×815×595	370×815×595
Package Size	W×H×D	mm	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	383×869×568	441×874×692	441×874×692	441×874×692	441×874×692
Net Weight/Gross Weiht		kg	27/30	28/31	30/33	31/34	30/33	31/34	30/33	31/34	30/33	31/34	44/47	44/47	44/47	44/47
Appliation Area		m2	10~15	10~15	15~20	15~20	25~25	20~25	20~25	20~25	20~25	20~25	25~30	25~30	25~30	25~30
Loading Quantity		Set/40"HQ	368	368	368	368	368	368	368	368	368	368	261	261	261	261
		Set/40"GP	248	248	248	248	248	248	248	248	248	248	172	172	172	172
		Set/20"	120	120	120	120	120	120	120	120	120	120	84	84	84	84
Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice.
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.

Technical Parameters for North American Market
Model		Unit	YPC/C1-06C-1	YPC/C1-07C-1	YPC/C1-07H-1	YPC/C1-09C-1	YPC/C1-09H-1	YPC/C1-12C-S1	YPC/C1-12H-S1
Cooling capacity		Btu/h	6000	7000	7000	9000	9000	12000	12000
		W	1760	2050	2050	2640	2640	3520	3520
Heating capacity		Btu/h	N/A	N/A	8000	N/A	10000	N/A	3870
		W	N/A	N/A	2250	N/A	2930	N/A	3870
Power Supply		V~,Hz,Ph	110~120,60	110~120,60	110~120,60	110~120,60	110~120,60	110~120,60	110~120,60
Rated input	Cooling	W	780	870	870	9.1	1150	1400	1400
Rated Current	Cooling	A	7.1	8.1	8.1	N/A	9.1	11.5	11.5
Rated input	Heating	W	N/A	N/A	840	N/A	1100	N/A	1350
Rated Current	Heating	A	N/A	N/A	7.3	8.9	9	N/A	11.7
EER for Cooling(R410A)		Btu/W.h	8.9	8.9	8.9	2.61	8.9	8.9	8.9
		W/W	2.61	2.61	2.61	N/A	2.61	2.61	2.61
COP for Heating(R410A)		Btu/W.h	N/A	N/A	9.6	N/A	9.6	N/A	9.6
		W/W	N/A	N/A	2.8	1	2.8	N/A	2.8
Moisture Removal		L/h	0.6	0.8	0.8	400	1	1.3	1.3
Air Circulation		m³/h	400	380	380	56	400	425	425
Noise	High	dB(A)	56	56	56	54	56	56	56
	Middle	dB(A)	54	54	54	52	54	54	54
	Low	dB(A)	52	52	52	318×710×528	52	50	50
Body Size	W×H×D	mm	318×710×528	318×710×528	318×710×528	383×869×568	318×710×528	318×710×528	318×710×528
Package Size	W×H×D	mm	383×869×568	383×869×568	383×869×568	30/33	383×869×568	383×869×568	383×869×568
Net Weight/Gross Weiht		kg	27/30	27/30	28/31	18~25	31/34	30/33	31/34
Appliation Area		m2	10~15	10~15	15~20	368	18~25	18~25	18~25
Loading Quantity		Set/40"HQ	368	368	368	248	368	368	368
		Set/40"GP	248	248	248	120	248	248	248
		Set/20"	120	120	120	240	120	120	120
Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice.
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.
