| Prod Model: |
CKXRS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

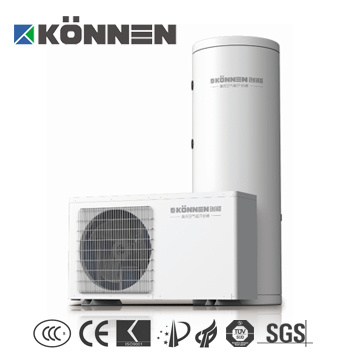

Small Heat Pump Water Heater |
| Refrigerant: |
R410A |
| Maxi Outlet Hot Water Temperature: |
60 Celsius Degree |
| Expansion: |
Electrical Expansion Valve |
| Certificate: |
CE Certificate |
| Rated Heating Capacity: |
5kw |
| Type: |
Air Source Heat Pump |
| Heat Source: |
Air-source |
| Certification: |
ISO9001 |
| Work Environment: |
Common Heat Pump |
| Heat Temperature: |
50-70??C |
| Application: |
Villa Family |
Product Description
small heat pump water heater
Heat Pump, Air Source Heat Pump, Air to Water Heat Pump, Home Use Heat Pump, Commercial Use Heat Pump, Water Source Heat Pump, Water to Water Heat Pump, Ground Source Heat Pump, Geothermal Heat Pump, Domestic Use Heat Pump, Home Use Heat Pump, EVI Heat Pump, Made In China, EVI System Air Source Heat Pump
|
Home use heat pump |
|
Modle |
CKXRS-3.5IH |
CKXRS-5.0IH |
CKXRS-7.0IH |
CKXRS-9.0IH |
|
Rated Heating output(kw) |
3.5 |
5 |
7 |
9 |
|
Rated produce hot water capacity(L/H) |
75 |
107 |
150 |
193 |
|
Rated outlet hot water temperature |
55 |
|
Maxi outlet hot water temperature |
60 |
|
Electrical equipment parameter |
rated power(kw) |
0.9 |
1.24 |
1.71 |
2.26 |
|
rated current(A) |
4.1 |
5.6 |
7.8 |
10.3 |
|
maxi power(kw) |
1.25 |
1.58 |
2.25 |
2.72 |
|
maxi current(A) |
5.7 |
7.2 |
10.3 |
12.4 |
|
Noise DB(A) |
≤ 50 |
≤ 53 |
|
Weight(kg) |
40 |
60 |
67 |
72 |
|
Refrigerant(g) |
800 |
1100 |
1300 |
1600 |
|
Unit dimensions(mm) |
950x360x560 |
1010x360x630 |
|
Power |
220V~/50HZ |
|
Water tank |
150L/200L/300L/500L |
|
Pipe size(mm) |
2xDN15 |
2xDN20 |
|
Suitable environment temperature |
-15~45 |
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
