| Prod Model: |
Slx14/Wh93 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
Headset Wirelss |
| Frequency Response: |
45Hz-15kHz |
| Bodypacck: |
Slx1 Bodypack Transmitter |
| Receiver: |
Slx4 Receiver |
| Operating Range: |
100m |
| Thd: |
0.5% |
| Voltage: |
AC110-120V /AC220-240V |
| Battary: |
2 AA |
| Power: |
12-18V |
| Style: |
Headset Microphone |
| Application: |
Measurement |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
Product Description

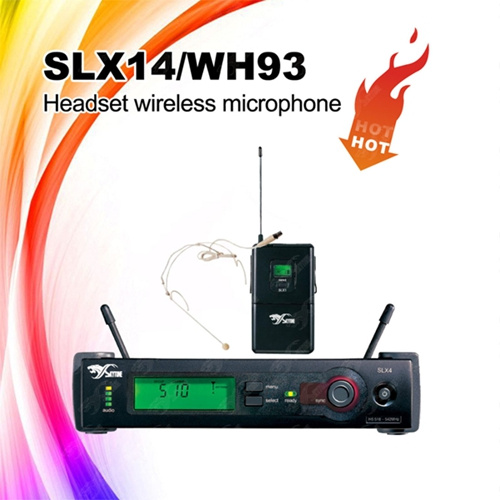

Slx14/Wh93 Headset Micophone, UHF Cordless/Wireless Microphone
headset mics
wireless mics
cordless microphone
WH93 Series Subminiature Condenser headworn Microphones
SLX1 Bodypack Transmitter
SLX4 Diversity Receiver
SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and patented Audio Reference Companding.
SYSTEM FEATURES
--Auto Frequency Selection
Locates a clear channel instantly
--Auto Transmitter Setup
Infrared link automatically synchronizes the transmitter and receiver
RECEIVER FEATURES
--Detachable 1/4 wave antennas
--Backlit LCD
--Rack-mount hardware included
--1/4" and XLR audio outputs
BODYPACK TRANSMITTER FEATURES
--Bodypack works with headworn, lavalier and instrument microphones and cables
--Timed backlit LCD
--Frequency and power lockout
| SLX14/WL93 Specification |
|
| Working Range | 100M |
| Audio frequency Response | 45-15000Hz |
| THD | <0.5% , typical |
| Dynamic Range | >100dB |
| Operating Temperature Range | -18ºC to +50ºC |
| SLX1 Specification |
|
| Audio input level | mic: -10dBV max
0dB:+10dBV max
-10dB:+20dBV max |
| Gain adjustment Range | 30dB |
| Input Impedance | 1MΩ |
| RF output Power | 10-30mW |
| Dimensions | 108mmx64mmx19mm |
| weight | 81g |
| Housing | galvanized steel |
| Power requirements | 2"AA" size |
| Baattery life | up to 8 hours |
| SLX4 Specification |
|
| Dimensions | 42mmx197mmx134mm |
| weight | 816g |
| Housing | galvanized steel |
| Sensitivity | -105dBm for 12dB SINAD, typical |
| Power requirements | 12-18V DC 150mA |
| Configuration | Impedance balanced |
| Max audio output Level | XLR connector:-13dBV(into600Ω)load
6.35mm(1/4")(into 3kΩ)load |
| Impedance | XLR connector:200Ω
6.35mm(1/4"):1kΩ |
| Image Rejection | >70dB, typical |
| WH93 Specification |
|
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 20,000 Hz |
| Polar Pattern | Omnidirectional, uniform with frequency |
| lmpedance | 3000 ohms |
| Output Level | Open Circuit Voltage: -38 dBV/Pa* (13 mV) *1 Pascal = 94 dB SPL
|
