| Prod Model: |
12V20AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Brand: |
Topsh |
Product Description

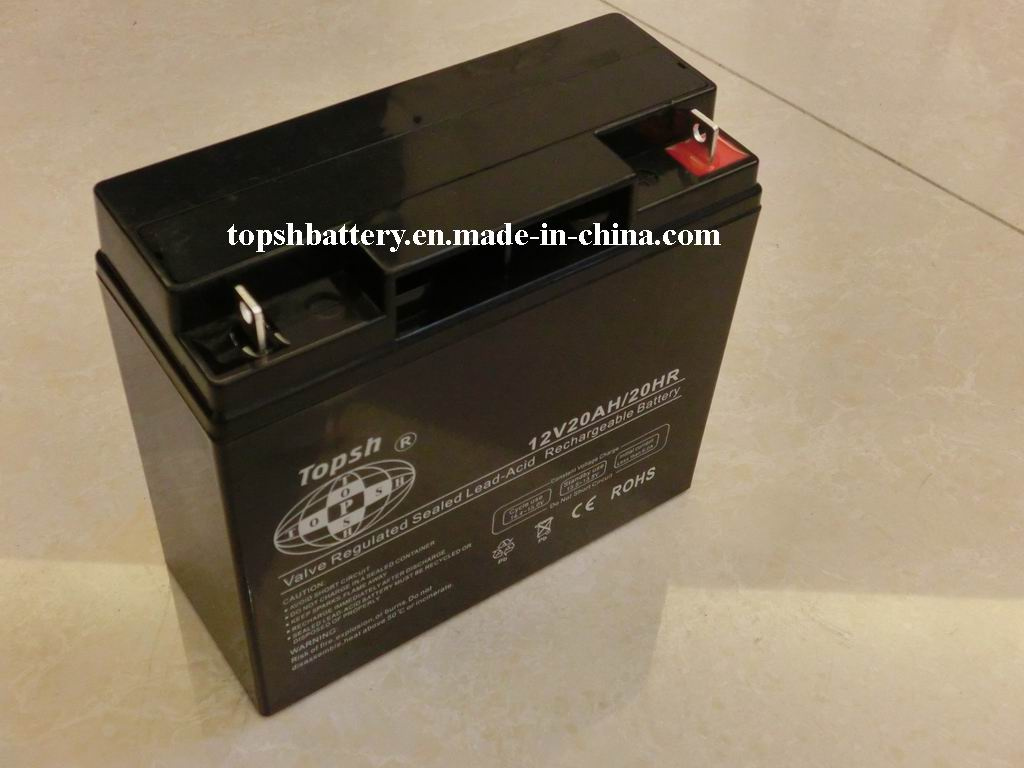

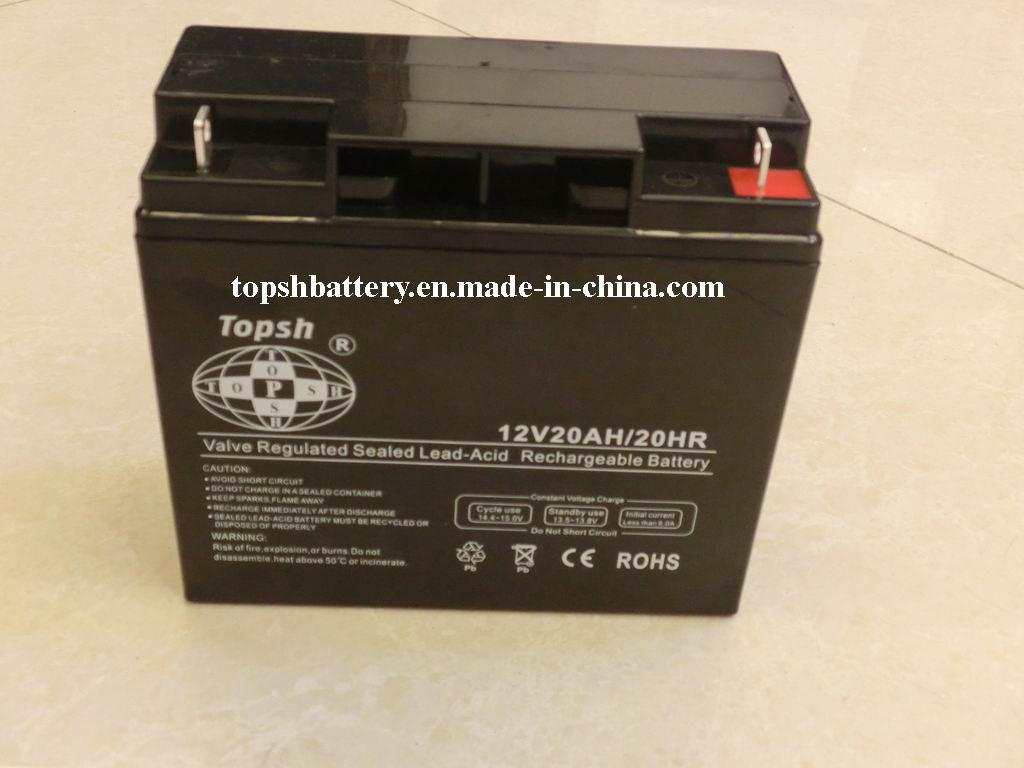

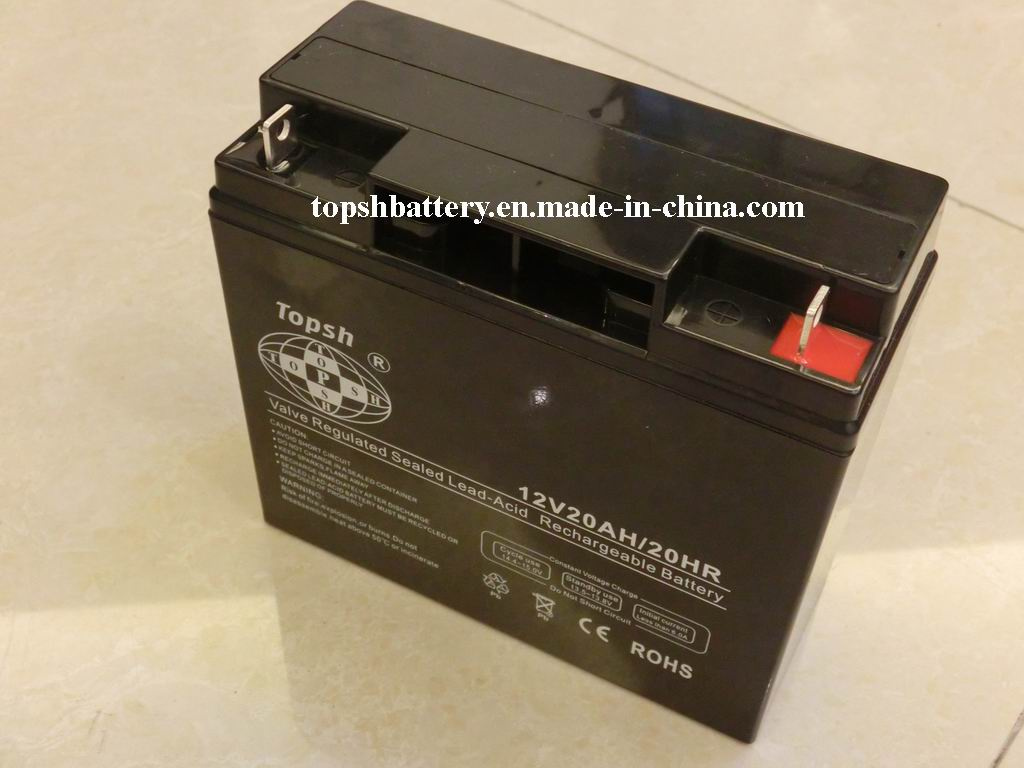

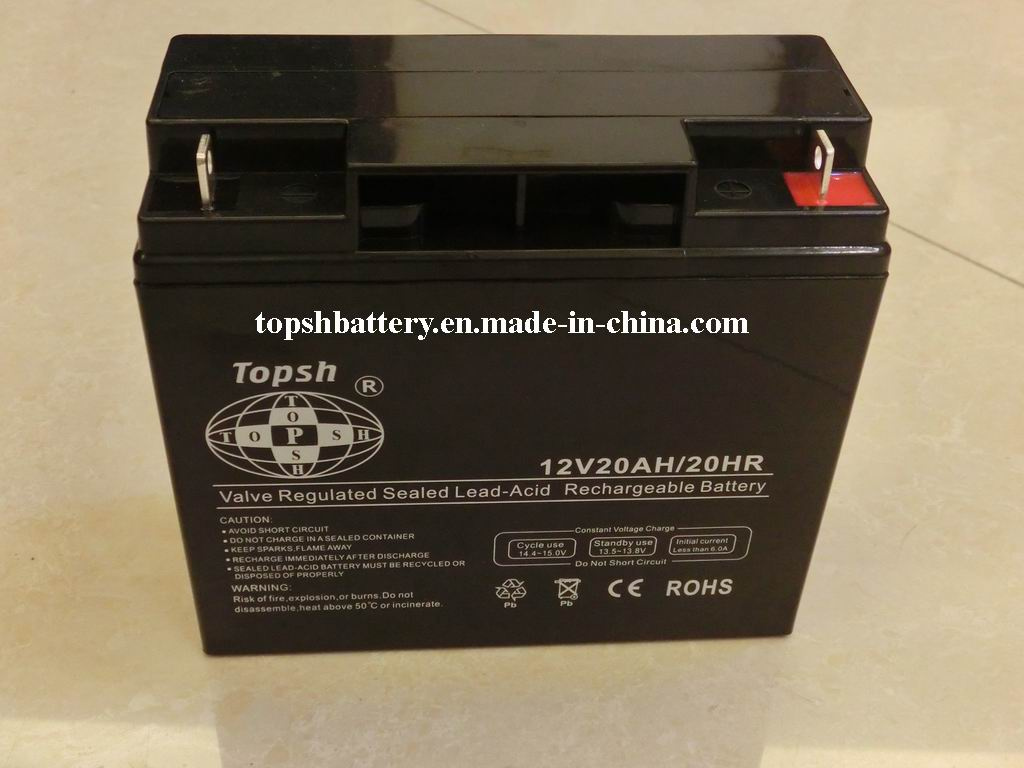

SLA battery description:
Model: 12V 20AH (NT12-20Y)
Dimension: 181(L)*77(W)*167(H)*167(TH)mm
Weight: 5.35kg
Norminal Voltage: 12V
Rated Capacity: 20AH
Terminal Type: Bolt
Package: 4 pcs/box
Applications
Remote Switching
Control equipments
Communication systems
Portable Lights
Alarm systems Power tools
Medical equipments
Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS)and stand-by power for computers
Characteristics
Nominal Voltage | 12V |
Nominal Capacity (20 hour rate) | 20Ah |
Capacity 25°C(77°F) | 20 hour rate (1A) | 20Ah |
10 hour rate (1.9A) | 19.0Ah |
5 hour rate (3.2A) | 16.0Ah |
1 hour rate (13A) | 13.0Ah |
Internal Resistance | Full Charged Battery 25°C(77°F) | ≤20mΩ |
Cyclic Life | 50%(C20) Depth of discharge | 600Times |
Float Life | 25°C(77°F) Float charge at 13.8V | About 3 Years |
Capacity affected by Temperature (20 hour ) | 40°C (104°F) | 102% |
25°C (77°F) | 100% |
0°C (32°F) | 85% |
-15°C (5°F) | 65% |
Self-Discharge 25°C(77°F) | Capacity after 3 month storage | 90% |
Capacity after 6 month storage | 80% |
Capacity after 12 month storage | 62% |
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 6.0A Voltage 14.6-15.0V |
Float | Voltage 13.5-13.8V |
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
