| Prod Model: |
CM8008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Receiver Number: |
One |
| Mic Number: |
Eight |
| Model No: |
Cm8008 |
| Frequency Range: |
UHF500-900MHz |
| Frequency Stability: |
+/- 0.001% |
| Dynamic Range: |
> 100dB |
| Frequency Response: |
40Hz-20kHz |
| Style: |
Gooseneck Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
Product Description

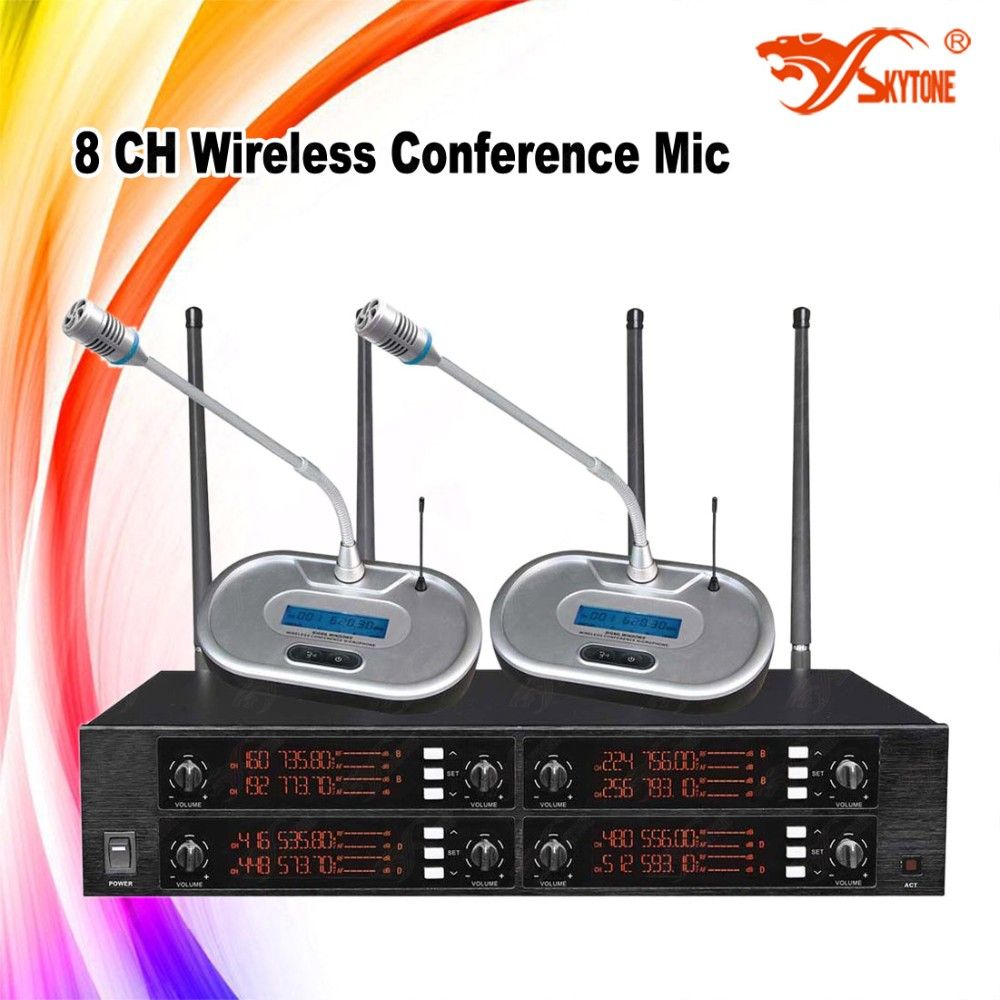

Skytone audio 8CH UHF wireless conference microphone system
Wireless Conference Microphone system
UHF wireless microphone
Professinal wireless microphone
cordless mic
cordless microphone for conference room
Overview:
Skytone CM8008 microphone is a professional conference wireless microphone, with 2 receivers and 8 microphones, it's the first optional for conference room.
Features:
1.UHF frequency range, away from outside interference
2.Adjustable frequency for multiple users according to interval design to ensure that multiple devices can be used at the same time.
3.Multi-level and high performance SAW filter with excellent anti-interference ability
4.They are equipped with LCD screens, which display the specific data during working.
5.Professional audio output: XLR balanced output and 6.3 unbalanced output
6.Automatic mute and shock-elimination circuit to eliminate the impact of power on & off and other noise.
7.Reliable Surface Mount Technology (SMT) production
Specifications:
8 channel wireless conference microphone Specification |
|
| Working frequency | UHF 500MHz-900MHz |
| Modulation Mode | FM |
| Channel spacing | 500KHz |
| frequency stability | ±0.001% |
| Dynamic range | >100dB |
| Maximum deviation | ±30KHz |
| Frequency response | 40Hz-20KHz |
| Integrated S / N | >105dB |
| Integrated T.H.D | <0.5% @1khz |
| Working distance | 100M |
| Working Temperture | -10ºC-50ºC |
| Receiver Specification |
|
| Oscillation mode | PLL integrated control |
| Working frequency | UHF 500MHz-900MHz |
| frequency stability | ±0.001% |
| Maximum deviation | ±30KHz |
| Modulation Mode | FM |
| Integrated S / N | >105dB |
| Integrated T.H.D | <0.5% @1khz |
| Sensitivity | 1.2/UV@S/N=12dB |
| Power supply | DC 12V~17V |
| Audio output | Independence 0-400mV Hybrid 0-300mV |
| Power | 6W |
| Mic speacification |
|
| Battery | DC 4.5V(1.5V AA x 3) |
| Power consumption | 100mA |
| Carrier frequency | UHF500~900MHz |
| frequency stability | ±25kHz |
| Integrated S / N | >105dB |
| Adjacent channel interference ratio | >80dB |
| Dynamic range | >100dB |
| Cartridge type | condenser |
| Frequency response | 40Hz-20KHz |
| Mic sensitivity | -47±3dB@1kHz |
| Oscillation mode | PLL integrated control |
| RF output power | 10MW |
Application:
Especially used for conference room.
