| Prod Model: |
700D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Type: |
TFT LCD Screen/Long Life, LED Backlight |
| Resolution: |
800X480 |
| Storage: |
Support TF Card 32g Max |
| Brightness: |
450CD/M2 |
| Contrast: |
500:1 |
| Size: |
180mmx120mmx23mm |
| View Angle: |
140/120degree( Horizontal/Vertical) |
| Power Consumption: |
<8W |
| Working Voltage: |
DV7-12V |
| Screen Size: |
≤17" |
| Application: |
Outdoor |
| Aspect Ratio: |
16:9 |
| Feature: |
With Remote Control |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
5ms |
| 3D: |
Not 3D |
| Interface Type: |
AV |
| Optimum Resolution: |
800X600 |
Product Description

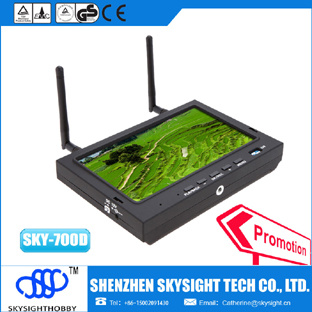

SKY-700D FPV 5.8G 7 Inch LCD 32CH Diversity receiver and wireless display
Features :
Brightness : 450cd/m2
Contrast: 500:1
Viewing Angle: 140¡ã/120¡ã(H/V)
Screen: 7 inch TFT LCD Screen/long life, LED backlight
Resolution: PAL(720¡Á576),NTSC(720¡Á480)
Dynamic image: MP4, mono audio channel
Storage: RAM(around 128MB),Mini SD(TF) Card (up to 32GB)
AV output: mono audio channel,video output
AV input: mono audio channel,video input
Working Voltage: DV 6-36V(center positive) or 2s to 6S Li-battery
Size: 180 x 125 x 35mm
Antenna Connection: SMA Jack (center hole)
Language: English,Chinese,German,French
Menu List: Loop Record/Date Stamp/Memory Info/Format/Language/Date/Time/Default/Beep/TV Standard/Battery Type/LCD Brightness/LCD Full Screen/Version
specification:
1. Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
2. Not affect by 2.4GHz R/C Radios
3. Small, light weight, durable
4. No Blue Screen, Black Screen, Flash Screen
5. Folding sunshade
6. 2 DC port
7. Support 2S to 6S Battery
8. USB port for connecting to PC or upgrade
9. 4 Bands and total 32 Channels
Package included:
1 x SKY-700D Monitor
1 x sunshade
1 x antenna
1 x cable set
