Prod Model: |
WVT-SCT-22 |
Markets: |
North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
Size: |
22inch |
Touch Points: |
Single Touch Point |
Available Sizes: |
6.4inch - 22inch |
Interfaces: |
USB / RS232 |
Respond Time: |
Less Than 10ms |
Waterproof: |
IP65 |
Surface Hardness: |
Over 7 Mohs |
Operation System: |
Windows, Mac, Linux |
Certifications: |
CE, RoHS |
Warranty: |
3 Free Years |
Product Description
Specifications

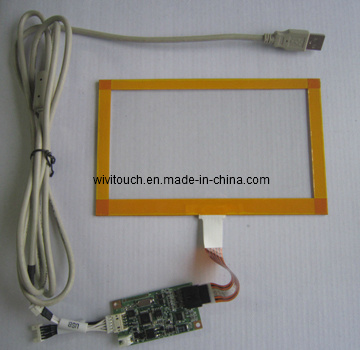

Surface Capacitive Touch Screen
1. Availabte Size: 6.4"-22"
2. Life Time: More than 50 millions
3. Warranty: 3years
Surface Capacitive Touch Screen
1. Availabte Size: 6.4"-22" 2. Life Time: More than 50 millions 3. Warranty: 3years
Features
High quality materials from Japan.
Integrated production process and management
Scratch-proof, clear, Steady, larger size, durability and favorable life
IP65 waterproof
Available Size
|
6.4"-24"
|
Input Method
|
Finger and capacitive touch pen
|
Thickness
|
1.8mm~2.8mm (Custom thicknesses available)
|
Touch Activation Force
|
55-85 g
|
Surface Hardness
|
≥7 Mohs
|
Chattering Time
|
≤ 10 ms
|
Linearity
|
≤ 1.5%
|
Operational voltage
|
5V,12V DC
|
Communication
|
USB, Seria
|
Surface Finish
|
Anti-glare/Non-glare
|
Operating Temperature
|
-30°C to 80°Cfor the touch screen
|
Storage Temperature
|
-40°C to 90°C(up to 90%RH from 0°C to +35°C)
|
Supported Operating Systems
|
MS-DOS, Windows 95/98/2000, CE/ME/2000NT, OS/2,XP,Linux
|
Cleaning Water
|
isopropyl, alcohol, and non-abrasive cleaners
NEMA Rating NEMA 4,12,and IP65
|
Chemical Resistance
|
solvents, acids, and household chemicals in accordance with ASTM-D-1308-02el and ASTM-F-1598
|
Touch Life
|
250 million touches in a single location
|
Warranty
|
3years
|
Transmittance
|
90%±2%
|
