| Prod Model: |
ST-300W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
St-300W |
| Power: |
300W |
| Input: |
110V or 220V Can Be Exchanged |
| Output: |
220V or 110V |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description

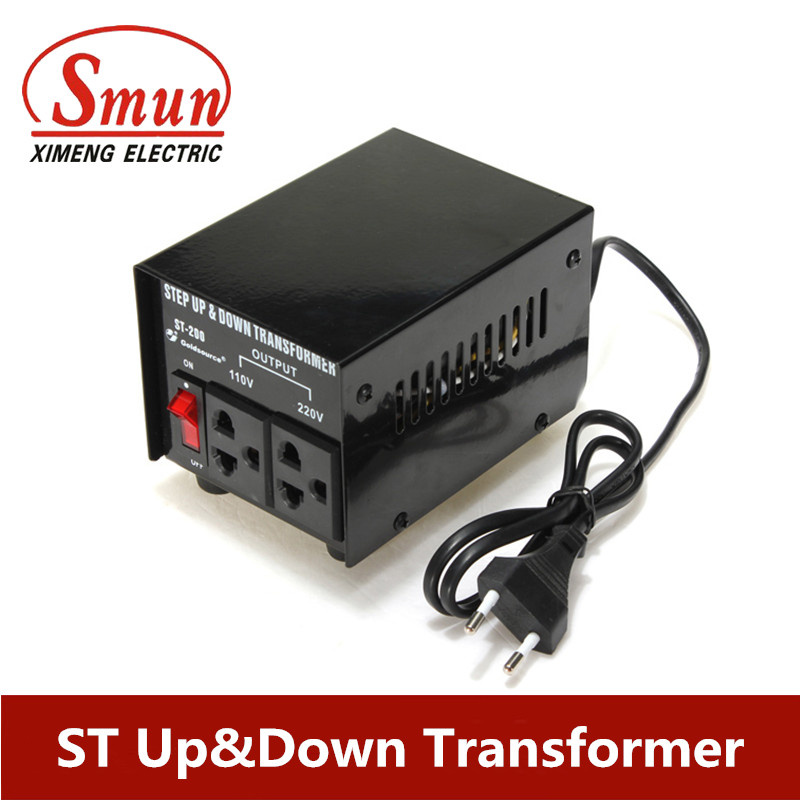

ST /TC type step up & down transformer / toroidal transformer/220v power transformer is specially designed for such electronic equipment whose rated AC voltage different from that of the local net voltage. They are safe for use within the rated voltage range.
1. Feature
This series step-up & step-down transformer is an AC voltage converting device.
Using it is to convert the multi-kind net voltages into a general output voltage
under which all the electronic units are
safe for use within the rated power range.
2. Main Technical Data
Phase no.: Single-phase
Input voltage: AC110V or 200V or 220V or 240V
Output voltage: AC110V & 220V.
With fuse protector or with over current protector
Main features: 1. Heavy duty suitable for continuous use.
2. Terminal connection or plug & socket connection.
3. Various types of plug & socket, US, European, Schuko, VDE, UK, Asian, Australian, or as request.
4. Output up to 3 sockets.
5. Input voltage range: 110V/117V/120V/220V/230V/240V
6. Output voltage range: 220V/230V/240V/110V/117V/120V
7. Typical capacity: 100/200/300/500/800/1000/1500/2000/3000/5000/8000/10000VA, or customized
8. Frequency: 50/60HZ
9. Protection : fuse protector or over current protector.
10.Input voltage can be changed according to the user.
Suitable for Water Dispenser, Printer Rice Cooker, Fan, Fax Machine, Air Machine, Computer
| Type | Rated Power | Input & Output | Pcs/CTN |
| ST-100 | 100W | 110VAC <==> 220VAC | 12 |
| ST-200 | 200W | 110VAC <==> 220VAC | 12 |
| ST-300 | 300W | 110VAC <==> 220VAC | 8 |
| ST-500 | 500W | 110VAC <==> 220VAC | 6 |
| ST-750 | 750W | 110VAC <==> 220VAC | 4 |
| ST-1000 | 1000W | 110VAC <==> 220VAC | 1 |
| ST-1500 | 1500W | 110VAC <==> 220VAC | 1 |
| ST-2000 | 2000W | 110VAC <==> 220VAC | 1 |
| ST-3000 | 3000W | 110VAC <==> 220VAC | 1 |
| ST-4000 | 4000W | 110VAC <==> 220VAC | 1 |
| ST-5000 | 5000W | 110VAC <==> 220VAC | 1 |
| ST-10000 | 10000W | 110VAC <==> 220VAC | 1 |
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
