| Prod Model: |
SU209 |
| Host Operating Voltage: |
DC - 12V-14V2a |
| Working Current: |
600mAh |
| Power: |
5W |
| Receiving Sensitivity: |
-105dBm |
| Audio Output Voltage: |
1V |
| Receiving Effective Distance: |
60 Meters Straight Accessible |
| Audio Response: |
UHF600MHz-840MHz |
| Frequency Stability: |
+ - 0.001% |
| WiFi Channels: |
60 |
| Function Display: |
LED DOT-Matrix Screen |
| Type: |
Voice Conferencing System |
| Video: |
Without Video |
| Composition: |
Loudspeaker |
| Communication: |
Wireless |
| Pointing Feature: |
Hypercardioid |
| Color: |
Black |
Product Description

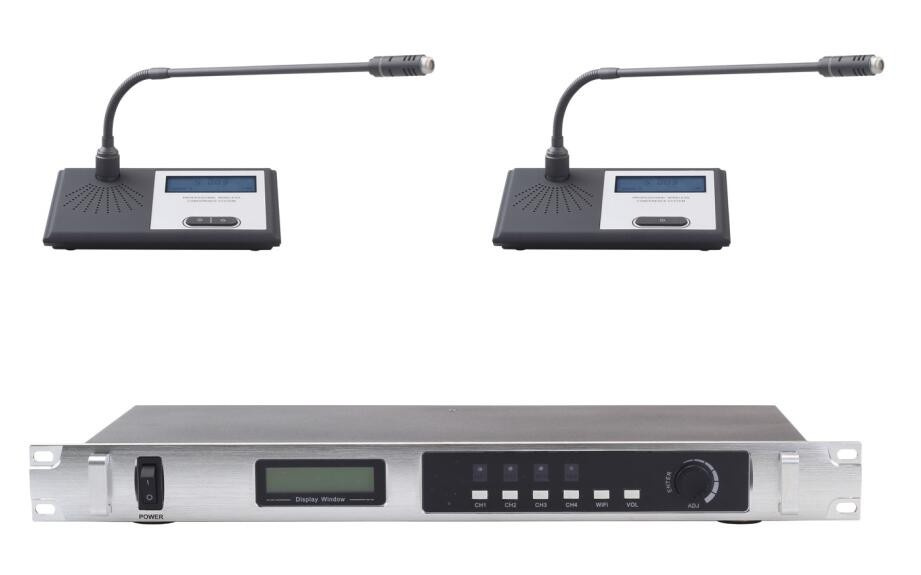

SINGDEN UHF wireless conference microphone SU209Support 1-99 microphones, support FIFO (rotation mode)
Product Description:
1. Engineering installation is easy, simple and convenient; mainly no need to debug while 99 people in the meeting room/ studio.
2. Function operation is extremely simple, one-button into the operation.
3. Frequency automatic tracking lock function, conference units turn on to use.
4. Built 60 WIFI communication channels, without interference each other while multi-machine use simultaneously.
5. Built-in 520 speaking channels, completely avoid interference.
6. Built-in moderate howling suppression function, can reduce the howling significantly.
7. Built-in superior sweep algorithm to scan the environment, select the frequency without interference automaticlly.
8. Built-in superior encryption communication algorithms, elimination of a communication error or malfunction completely.
9. Built-in battery monitoring function, microphone unit display the battery level at real time.
10. Built-chairman priority function, one button to turn off all speaking delegate units.
11. The intelligent speaking right control. Support 4 people speaking simultaneously, supports up to 99 people FIFO(first-in-first-out).
12. The conference main unit has self-closing function. Microphone units will be automatically shut down when the conference main unit powered off more than 30 seconds.
13. All-wireless transmission and control network. Just plug in the main unit power supply and audio output to the amplifier.
14. The handheld microphone and desktop microphone can be mixed in the system.
15. Anti-mobile phone electromagnetic interference

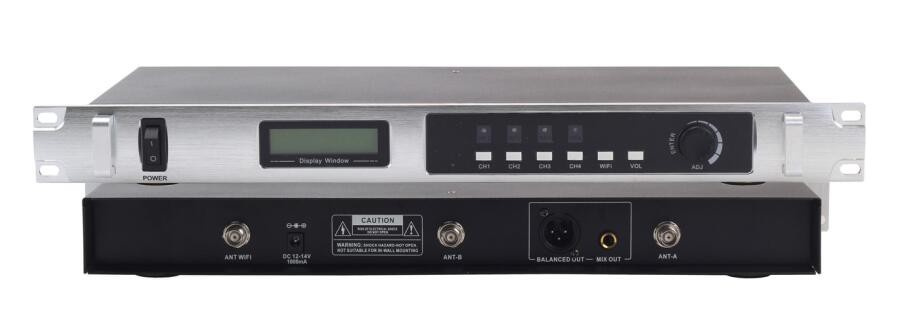

Main unit parameters:| Host Operating Voltage | DC - 12V-14V2A |
| Working Current | 600mAh |
| Power | 5W |
| Receiving sensitivity | -105dBM |
| Audio Output voltage | 1V |
| Receiving effective distance | 60 meters straight Accessible |
| Audio Response | 50HZ-15KHZ |
| Carrier Frequency | UHF600MHz-840MHz |
| Frequency stability | + - 0.001% |
| WiFi channels | 60 |
| Function Display | LED dot-matrix screen |
| SNR S / N | > 85dB |
| Distortion THD | <0.01% |
| Dimensions (LxWxD) | 480mmX44mmX230mm |
| Weight | 2.0KG |

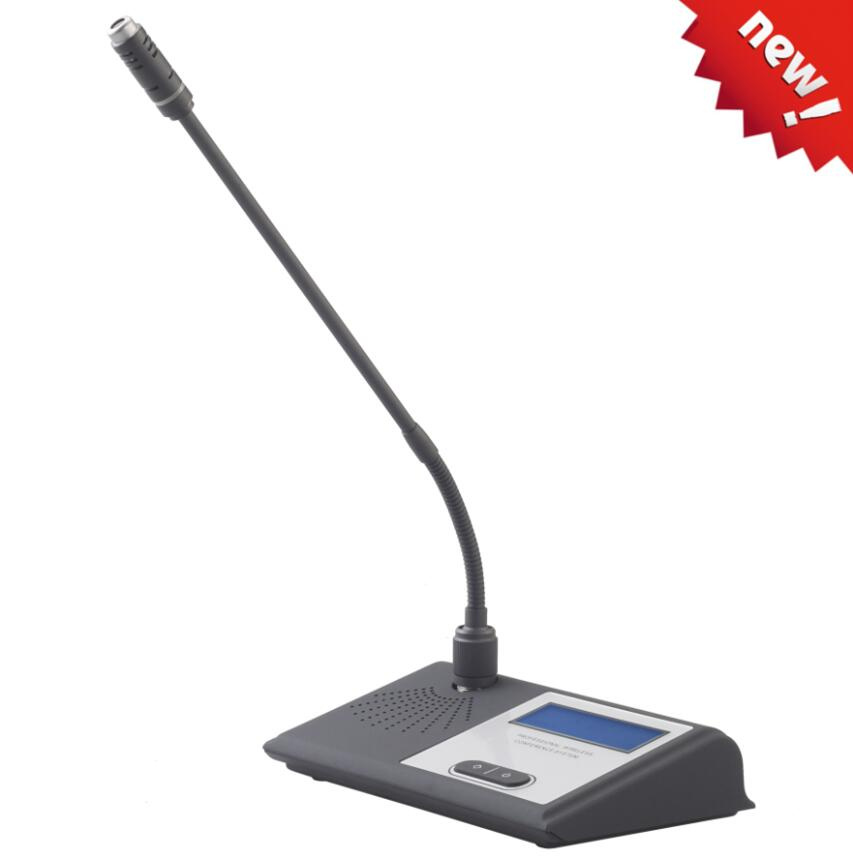

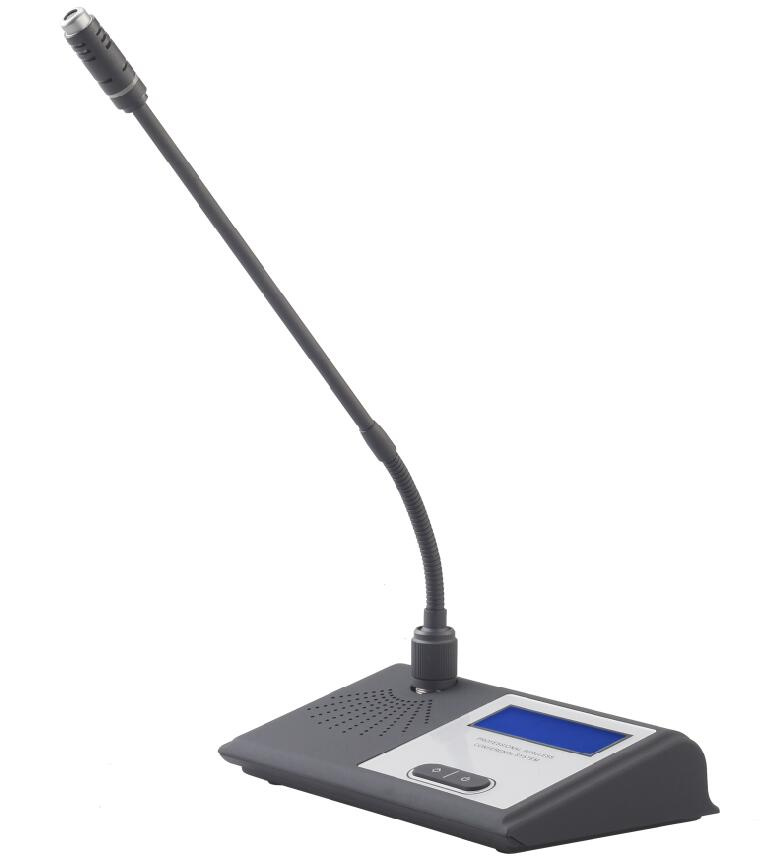

Microphone parameters:| Adjacent channel interference suppression | > 60dB |
| Microphone core directivity | cardioid |
| Pickup Sensitivity | > 20dBM (1V) |
| Transmit power | > + 10dBM (10MW) |
| Microphone Power | 120mAh |
| UHF frequency range | 612MHZ-692MHZ 715MHZ --- 785MHZ optional multi-band |
Packaging & Shipping| Price term | EWX price or FOB price |
| Certificate | CE ,ROHS , TUV , ISO4043 |
| Shipping method | By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order,
and we can book space and get you the earliest date of delivery by sea if bulk order
If there is any unhappy occations with the shipping, we will try our best to solve it with
the shipping agent and ask for compensation. |
| Payment terms | By T/T, Western Union , Paypal , Escrow Payment. |
| Sample time | 3-5 working days |
| Production time | 5 working day depend on the quantity |
| packing | 1. each microphone in bubble bag, then in export carton, to save freight cost;
2. each microphone in bubble bag, then in inner box, then in export carton. |
| Warranty | 36 MONTHS |
| After sells service | If there is the problem with the product, firstly you need send the picture or the video
to us, then let us make sure what's problem about the product, if the problem can use
the part to solve ,we will offer you the replacement for free Within 1 year. |
FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don't worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
7.Q: What is your delivery time?
3-7 work days Company Information
1. About us
As the leadrunner in Chinese conference system industry, SINGDEN is global provider of complete conference system solutions ,including conference discussion system, voting system, simultaneous interpretation system, attendance registration system, and multimedia control system and conference management software.
SINGDEN prides itself on its independent innovation strategy and product differentiation strategy ever since its inception, with independent intellectual property rights for its wide range of products. The company has obtained a number of patented technologies including utility model patents and patent. And successfully applied for high-tech enterprises in Guangdong Province.
2. Why Choose us
1.10 years experienced, service to international conferences in 40 countries,
2.11 Patents, CE & ROHS certificated,
3.one hour reach Guangzhou airport,
4.keep good quality and competitive for global valued customers.
5.main products cover conference system, simultaneous interpretation system and gooseneck microphones.
6.Small MOQ.
7.OEM/ODM Accepted.
3. Certifications
Through our long term effort, we have created our own brand and reputation. In the spirit of "costumer first, quality first", we are seeking on to be famous in the world of conference system supply.
Contact us:
Telephone:86-0757-81810859
Mobile Phone:86-13727354363
Fax:86-0757-88554279
Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html
Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html

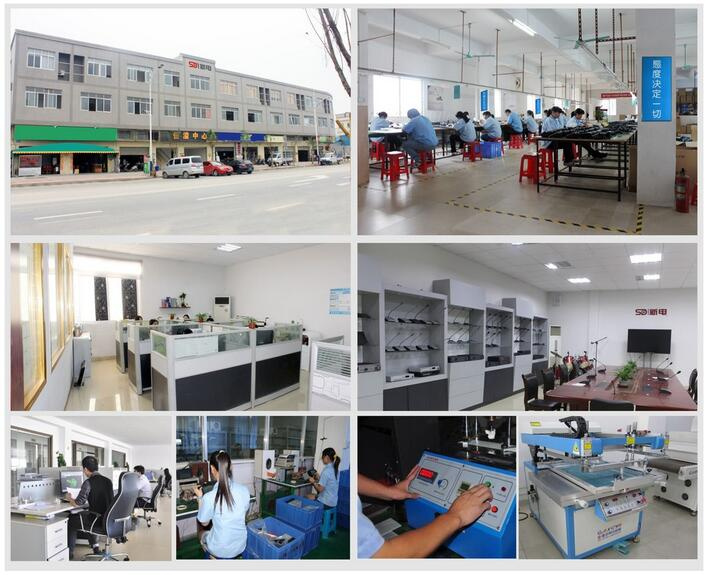

Foshan Singden Technology Co., Ltd. Established in 2003, provides completes conference system solutions of advanced electronics conferences and congress products to the global meeting industry on a permanent or rental supply basis, The factory has a number of professional, high quality and unique and innovative talents.
