| Prod Model: |
SE528VC |
| Display Dimension: |
80*30(mm) |
| Pick Up Range: |
0-500mm |
| Frequency Response: |
40Hz-19kHz |
| Sensitivity: |
-38dB±3dB |
| Snr: |
-80dB |
| Nonlinear Distortion: |
<0.3%(1kHz) |
| Power: |
AC24V |
| Length: |
385m |
| Weight: |
0.75kg |
| Temperature: |
-20oc - 50oc |
| Type: |
Video Conferencing System |
| Video: |
Video |
| Composition: |
Loudspeaker |
| Communication: |
Wireless |
| Color: |
Black |
Product Description

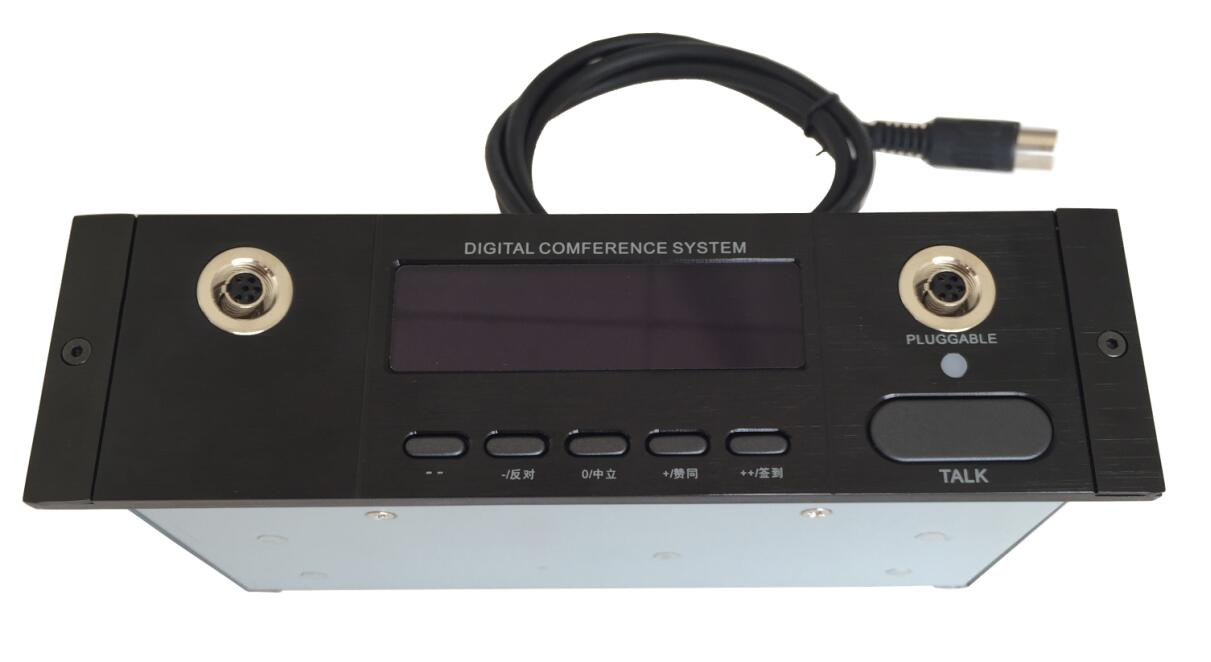

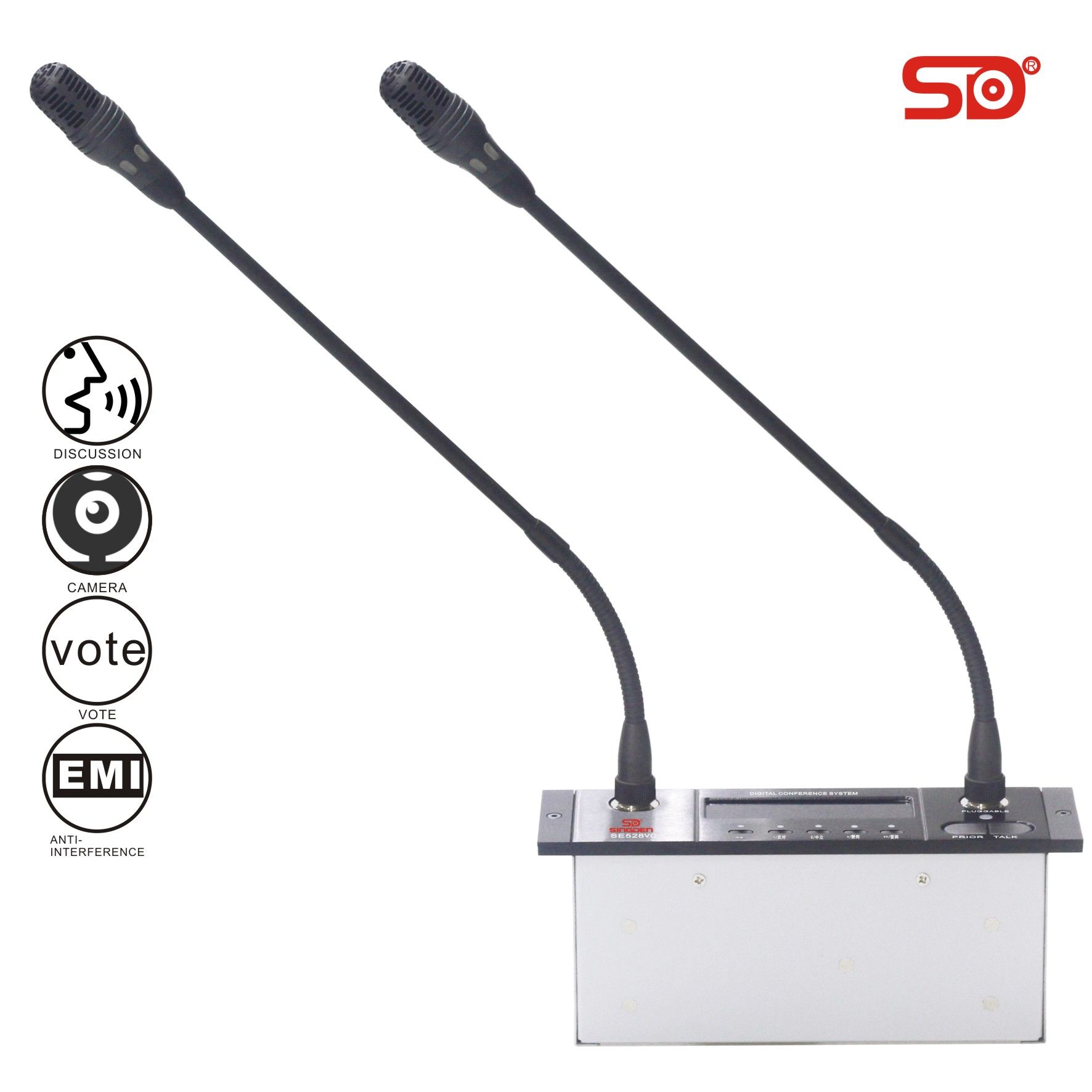

SINGDEN embedded conference system for discussion and voting SE528VC
DESCRIPTION:
SE528VC/SE528VD series are the professional conference microphones which research and development by SINGDEN. Its unique voice frequency circuit, have ability to deal with high sound pressure, fullbalanced design and unique masking techniques can anticellphone and other RF interference in long distance transmitting. 80*30mm LED display placed on microphone panel can display various state and information of microphone timely. Excellent sound performance, high reliability, advanced digital technology fully combining with audio technology, suitable for all kinds of conferences.
VOTING CONFERENCE SYSTEM:
Support to voting function, the microphone can be voted in multiform by 3-5 keys when use with PC software, such as subject vote, democratic appraisal, election, etc.

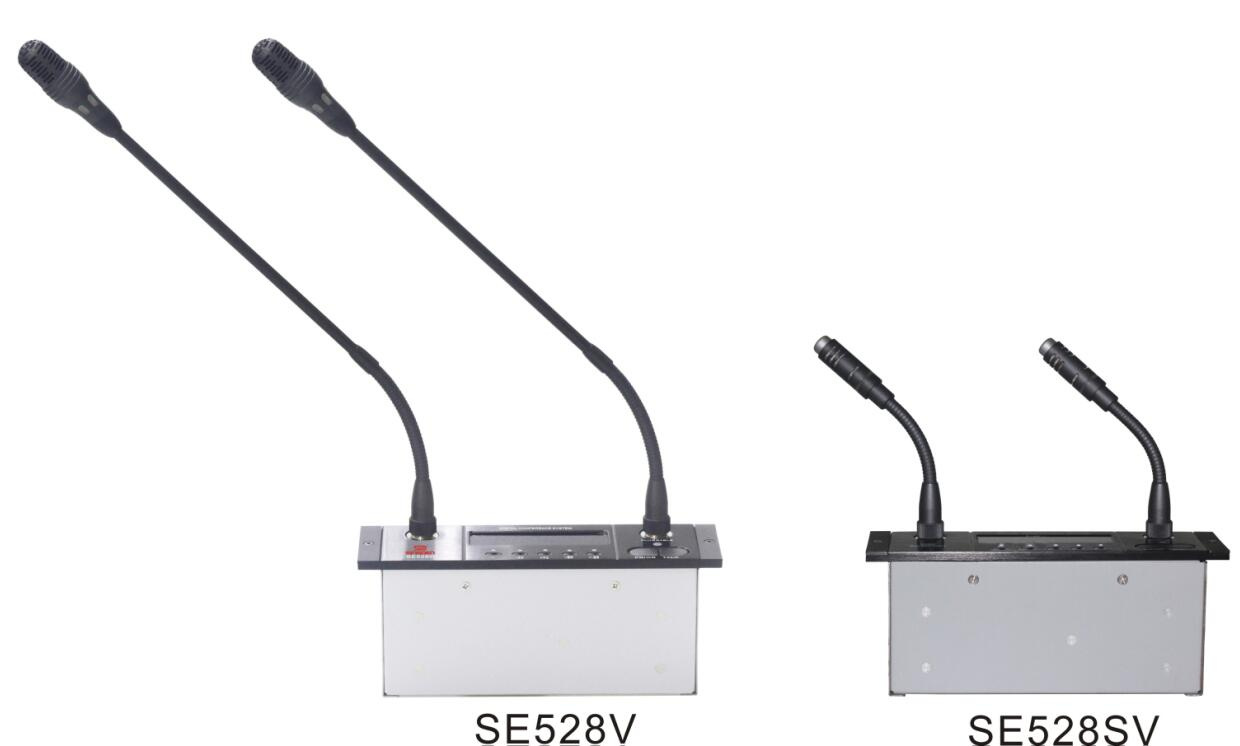

Use this series of microphone, can achieve to conference register, speaking, voting and automatic video tracking function; discussion unit with builtin loudspeaker, headphone jack and volume control knob, participants can listen in conference speaking from builtin loudspeaker or headphone, and adjust the voice volume by control knob. Any 1to6 microphones out of Chairman and VIP can speak at the same time, multiple VIP units can be set by software; black and silver color for choose. TWO STYLE FOR YOU CHOOSE:
FEATURES:
- Fixed pluggable with locking Mi rod design
- High sensitivity, effective pick-up range up to 50CM
- Red mist indicator light design, indicate speaking state
- Support multiple Chairman Microphones in the system
- VIP microphone can be set by software, make operation more flexible, meet higher
- requirement (need to use with software simultaneously)
- Good sound performance under long distance transmission
- "Liner hand-in-hand" connection, system connected more convenient and reliable
- Highly resistant to mobile phone interference
- Chairman Unit have priority function button, can override all speaking delegate units
- Can be voted in multiform by 3-5 keys when use with PC software
- Support software, connect with other central control devices through "232" connector,
- achieve to centralized control.
- Microphone with an 80*30mm LED display, can display a variety of microphones information,
- and operation instruction.
- Unique innovative self-detection function, use with software the device can complete the self-
- inspection automatically, make the preparation work before meeting easier and the meeting
- going more reliable.
TECHNICAL PARAMETERS :
Display Dimension | 80*30(mm) |
Pick up range: | 0-500mm |
Frequency response | 40Hz-19KHz |
Sensitivity | -38dB±3dB |
SNR | -80dB |
Nonlinear distortion | <0.3%(1KHz) |
Power | AC24V |
Length | 385m |
Weight | 0.75Kg |
Temperature | -20ºC - 50ºC |
Dimension | 200*123*53mm |
Q&A
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don't worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
7.Q: What is your delivery time?
3-7 work days
Contact us:
Telephone:86-0757-81810859
Mobile Phone:86-13727354363
Fax:86-0757-88554279
Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html
Foshan Singden Technology Co., Ltd. Established in 2003, provides completes conference system solutions of advanced electronics conferences and congress products to the global meeting industry on a permanent or rental supply basis, The factory has a number of professional, high quality and unique and innovative talents.
We believe that we can offer all our customers the best products and services, after years of development, we has several sets of audio test equipment, with a standard (1*1*1m) no residual sound box. Independent of the sample making equipment, a complete design and production capabilities, support a variety of customer needs, OEM / ODM. In 2012, first to introduce product testing system, product aging test, and vibration test, overvoltage, to ensure the quality of the product. SINGDEN will provide complete system solutions for the global meeting industry always.
As the lead-runner in Chinese conference system industry, SINGDEN is global provider of complete conference system solutions, including conference discussion system, voting system, simultaneous interpretation system, attendance registration system, and multimedia control system and conference management software.
SINGDEN prides itself on its independent innovation strategy and product differentiation strategy ever since its inception, with independent intellectual property rights for its wide range of products. The company has obtained a number of patented technologies including utility model patents and patent. And successfully applied for high-tech enterprises in Guangdong Province.
After years of development, the accumulation of many years of OEM / ODM experience, "SD" trademark officially registered in 2012, as a unified trademark of the company's global sales, the latest technology for product jointly developed a whole new generation of digital conference system, a formal join the ISO 9001: 2008 international quality system certification, some products have passed CCC, CE and FCC, SINGDEN ships to more than dozens of countries, and has completed thousands of important projects worldwide, with diversified portfolio of endusers including governments, parliaments, convention centers, courthouses, military forces, hotels, schools, hospitals, churches and corporations.
