| Prod Model: |
SM500 |
| Screen Size: |
10.1-Inch HD LED Screen |
| Pickup Distance: |
0-500mm |
| Frequency Response: |
40Hz-19kHz |
| Sensitivity: |
-38 Plus or Minus 3dB |
| Snr: |
-80dB |
| Nonlinear Distortion: |
<0.3%(1kHz) |
| Power: |
AC24V |
| Length: |
275mm |
| Weight: |
1.5kg |
| Operating Temperature: |
-20-50 Celsius System |
| Type: |
Video Conferencing System |
| Video: |
Video |
| Composition: |
Loudspeaker |
| Communication: |
Wired |
| Pointing Feature: |
Hypercardioid |
| Color: |
Silver |
Product Description

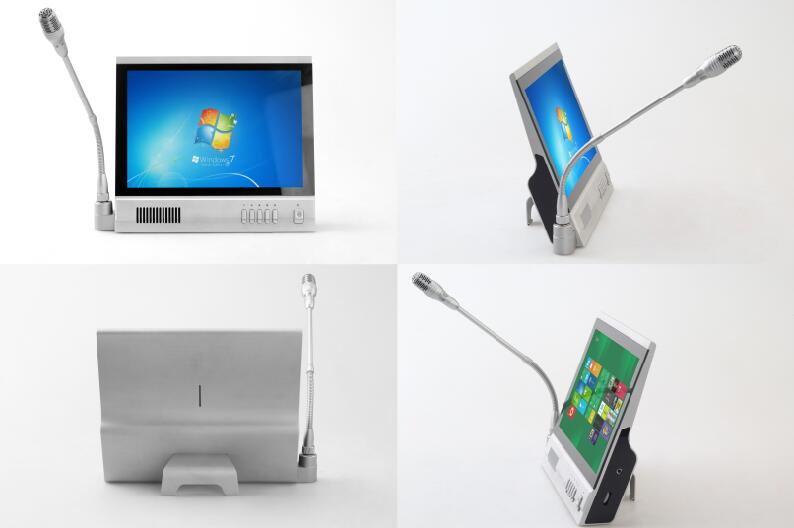

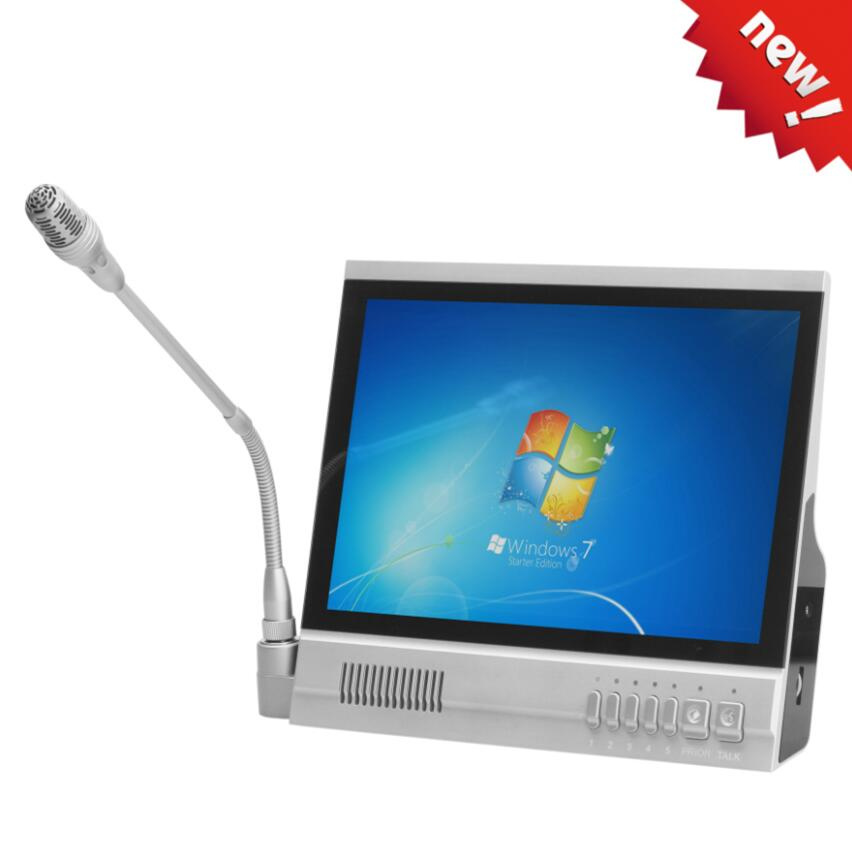

SINGDEN high-class conference microphone with big LED screen (SM500)
System Description
SINGDEN SM500 is a new concept conference microphone, adopted with the 10.1-inch high-definition display, not only the traditional microphone of discussion, sign-in, voting, video tracking, but also can display a variety video, image and text information from the local or remote system
SINGDEN SM500 microphone can fit in any condition of conference, and the conference room design also no need to keep out the position of projector, ensure the conference room layout more simple.
SINGDEN SM500 microphone is particularly suitable for large meeting places, participants can be viewed directly through the screen of the microphone, no need to view from distant projection , ensure the participants clearer view, each person can be better participated in the meeting
SINGDEN SM500 microphone is more compact, can be used on the podium, will not hide the participants, so that conferencing camera work easier. More concise and microphone integrates all function display of the call. When use it in teleconferencing, the communication, text and video information make the meeting more clearer, direct, and face to face communication.
The installation of SINGDEN SM500 microphone also is easier, all CAT6 network cables, stable and reliable.

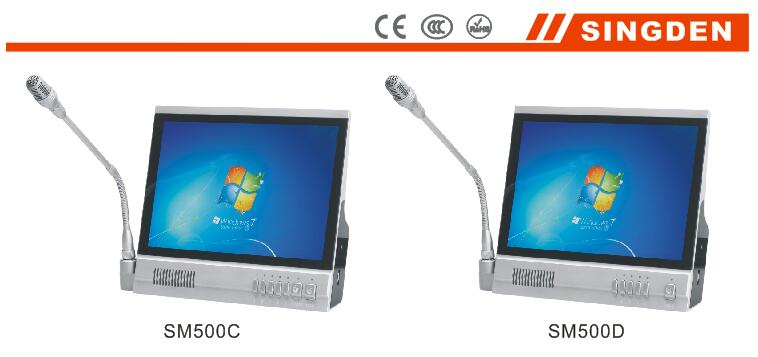

Microphone unit SM500C/SM500D
Product Description
SINGDEN SM500 conference microphone unit enables sign-in, discussion, voting and automatic video tracking function; the microphone with built-in speaker, headphone jack and volume control switch, participants can use the built-in speakers or headphones to listen to conference speakers and volume can be adjusted; any 1-6 microphone except the Chairman and VIP can be open in the same time; multiple VIP unit can be set up by software; microphone in black and silver colors for customers to choose.
Built-in card reader, can support simultaneous interpretation.
Product Features:
•Fixed Mi rod design.
•High sensitivity design, effective pick-up range up to 50CM
•Red mist indicator light design, indicate speaking state
•Support multiple Chairman Microphones active simultaneously
• VIP microphone can be set by software, make operation more flexible, to meet high demand (need to use with the software)
• Built-in 2W hi-fi speaker
• Equipped with 3.5mm headphone jack
• Voting function, can support the 3-5 key vote with PC software
• long-distance transmission will not have any bad effect on sound quality.
• " Hand in Hand" network cable, system connecting more easier and reliable
• Highly resistant to mobile phone interference
•Chairman Unit have priority function button, can override all speaking delegate units
• Can be centralized control when connect central control deviceby 232 port
• Adopted with a 10.1-inch IPS HD display, can display a variety of high-definition video, image and text.
• Unique innovative self-detection function, use with software the device can complete the self-inspection automatically, make the preparation before work before meeting easier and the meeting going more reliable.
Technical Parameters
Screen size | 10.1-inch HD LED screen |
Pickup distance | 0-500mm |
Frequency Response | 40Hz-19KHz |
Sensitivity | -38dB±3dB |
SNR | -80dB |
Nonlinear distortion | <0.3%(1KHz) |
Power | AC24V |
Length | 275MM |
Weight | 1.5Kg |
Operating temperature | -20ºC-50ºC |
Packaging & Shipping
Price term | EWX price or FOB price |
Certificate | CE ,ROHS , TUV , ISO4043 |
Shipping method | By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order, and we can book space and get you the earliest date of delivery by sea if bulk order If there is any unhappy occations with the shipping, we will try our best to solve it with the shipping agent and ask for compensation. |
Payment terms | By T/T, Western Union , Paypal , Escrow Payment. |
Sample time | 3-5 working days |
Production time | 5 working day depend on the quantity |
packing | 1. each microphone in bubble bag, then in export carton, to save freight cost; 2. each microphone in bubble bag, then in inner box, then in export carton. |
Warranty | 36 MONTHS |
After sells service | If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year. |
FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don't worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
7.Q: What is your delivery time?
3-7 work days
Contact us:
Telephone:86-0757-81810859
Mobile Phone:86-13727354363
Fax:86-0757-88554279
Address:Wufansha industrial park,Nanhai district,Foshan,China
Web: http://www.singden.com/en/index.html

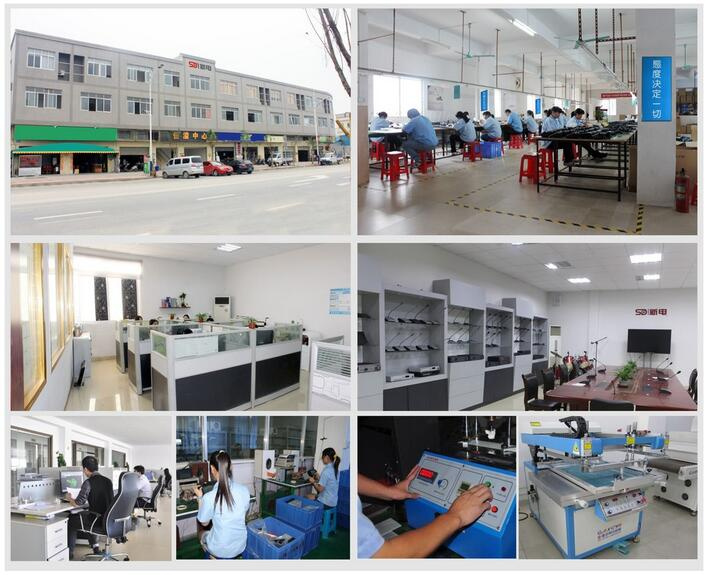

Foshan Singden Technology Co., Ltd. Established in 2003, provides completes conference system solutions of advanced electronics conferences and congress products to the global meeting industry on a permanent or rental supply basis, The factory has a number of professional, high quality and unique and innovative talents.
