| Prod Model: |
SE528 |
| Display Dimension: |
80*30(mm) |
| Pick up Range: |
0-500mm |
| Frequency Response: |
40Hz-19kHz |
| Sensitivity: |
-38dB±3dB |
| Snr: |
-80dB |
| Nonlinear Distortion: |
<0.3%(1kHz) |
| Power: |
AC24V |
| Length: |
385mm |
| Temperature: |
-20ºC - 50ºC |
| Type: |
Voice Conferencing System |
| Video: |
Video |
| Composition: |
Loudspeaker |
| Communication: |
Wireless |
| Pointing Feature: |
Omni-Directional |
| Color: |
Black |
Product Description

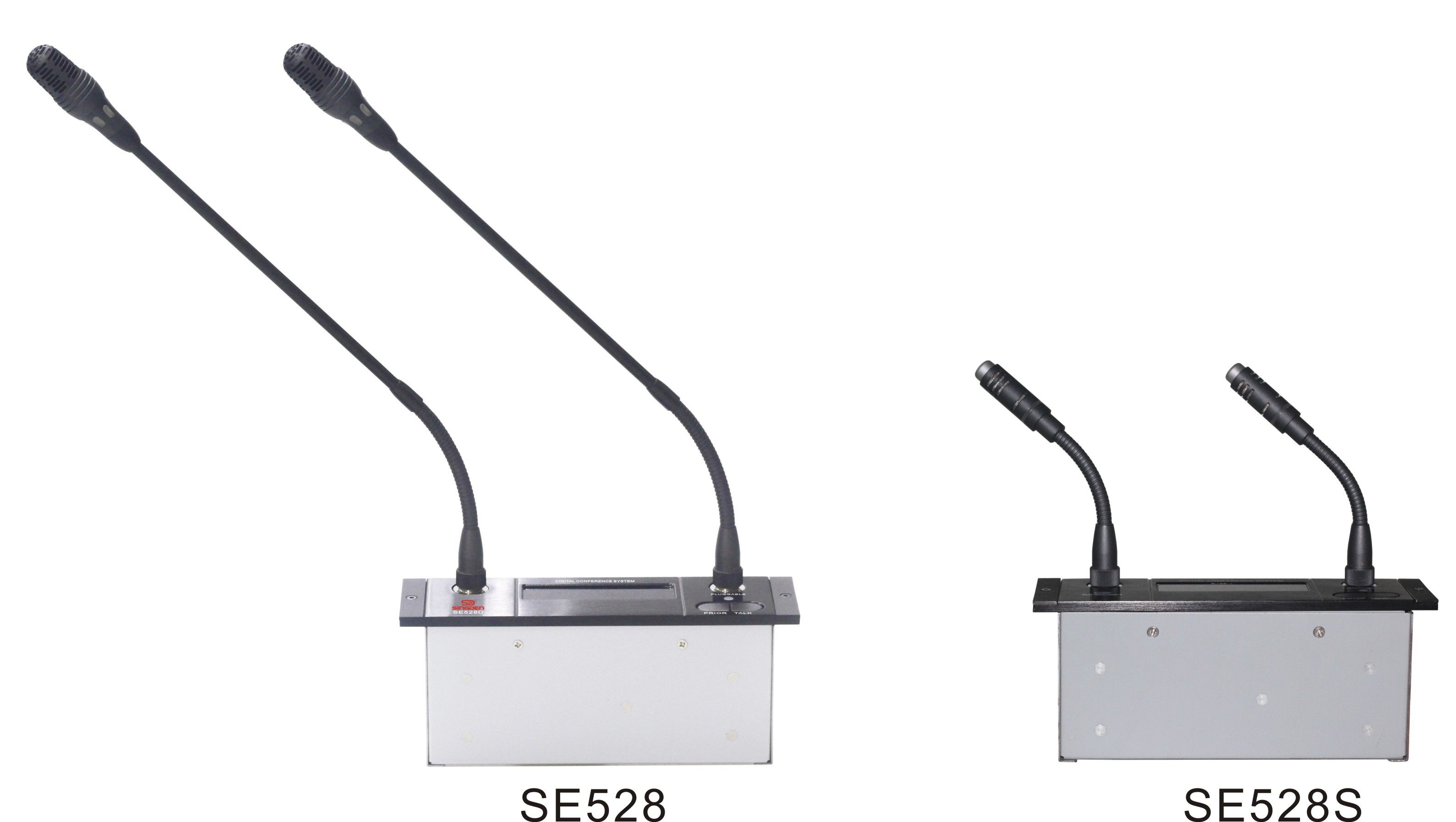

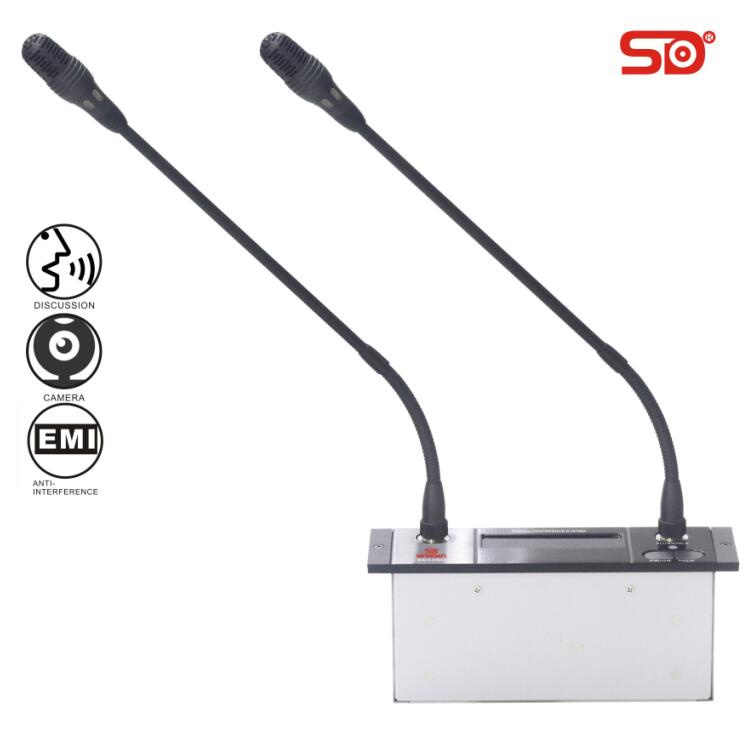

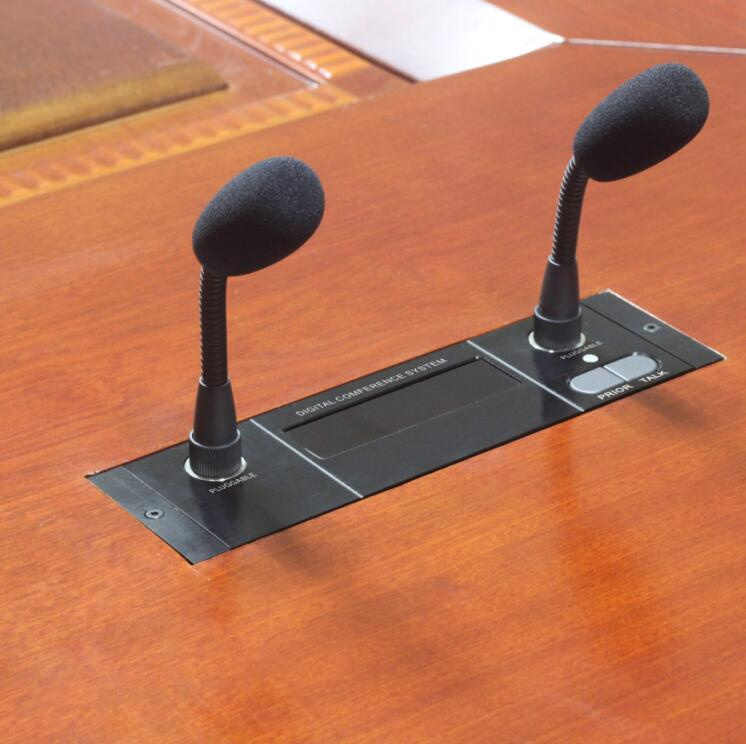

Embedded conference microphone with two microphone rod SE528C SINGDEN
DESCRIPTION:SE528C/SE528D series are the professional conference microphones which research and development by SINGDEN. Its unique voice frequency circuit, have ability to deal with high sound pressure, fullbalanced design and unique masking techniques can anticellphone and other RF interference in long distance transmitting. 80*30mm LED display placed on microphone panel can display various state and information of microphone timely. Excellent sound performance, high reliability, advanced digital technology fully combining with audio technology, suitable for all kinds of conferences.
FEATURES:Fixed pluggable with locking Mi rod design
High sensitivity, effective pick-up range up to 50CM
Red mist indicator light design, indicate speaking state
Support multiple Chairman Microphones in the system
VIP microphone can be set by software, make operation more flexible, meet higher
requirement (need to use with software simultaneously)
Good sound performance under long distance transmission
"Liner hand-in-hand" connection, system connected more convenient and reliable
Highly resistant to mobile phone interference
Chairman Unit have priority function button, can override all speaking delegate units
Can be voted in multiform by 3-5 keys when use with PC software
Support software, connect with other central control devices through "232" connector,
achieve to centralized control.

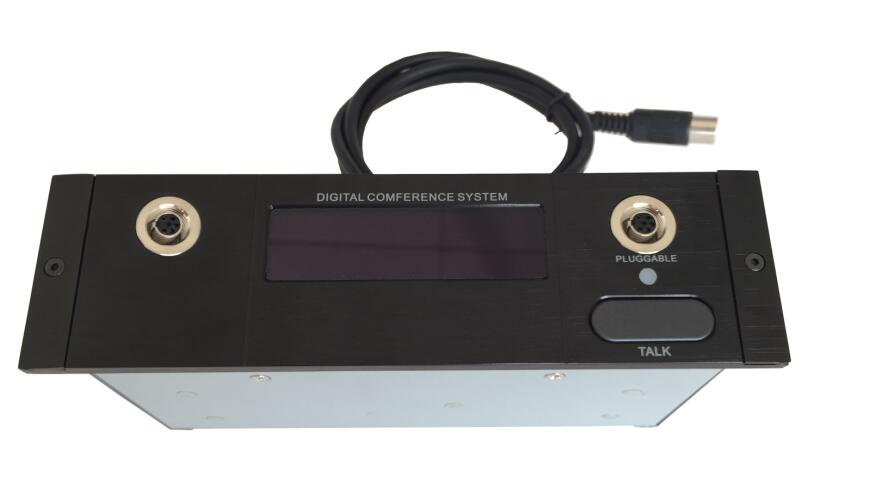

Microphone with an 80*30mm LED display, can display a variety of microphones information,
and operation instruction.
Unique innovative self-detection function, use with software the device can complete the self-
inspection automatically, make the preparation work before meeting easier and the meeting
going more reliable.
TECHNICAL PARAMETERS :
Display Dimension |
80*30(mm) |
Pick up range: |
0-500mm |
Frequency response |
40Hz-19KHz |
Sensitivity |
-38dB±3dB |
SNR |
-80dB |
Nonlinear distortion |
<0.3%(1KHz) |
Power |
AC24V |
Length |
385mm |
Weight |
0.75Kg |
Temperature |
-20ºC - 50ºC |
Dimension |
200*123*53mm |
two size for choose
Q&A1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have the CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don't worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
6.Q: What is your delivery time?
3-7 work days
