| Prod Model: |
YTD |
| Table Dimension: |
400*600mm |
| Inching Size: |
±10mm |
| Max Printing Size: |
400*600mm |
| Scraper Angle: |
0-45° |
| Printing Speed: |
800PCS/Hour |
| Air Pressure: |
0.4-0.6MPa |
| Machine Dimension: |
1000*9500*1700mm |
| Weight: |
240kg |
| Max Screen Frame: |
600*800mm |
| Power: |
220V 50-60MHz 50W |
| Type: |
Vertical Screen Printing Machine |
| Style: |
Screen-process Printing Press |
| Structure: |
Single-revolution printing press |
| Color & Page: |
Single-Colour Printing Press |
| Print Interface: |
USB2.0 |
| System Supported: |
Windowsxp32 |
Product Description

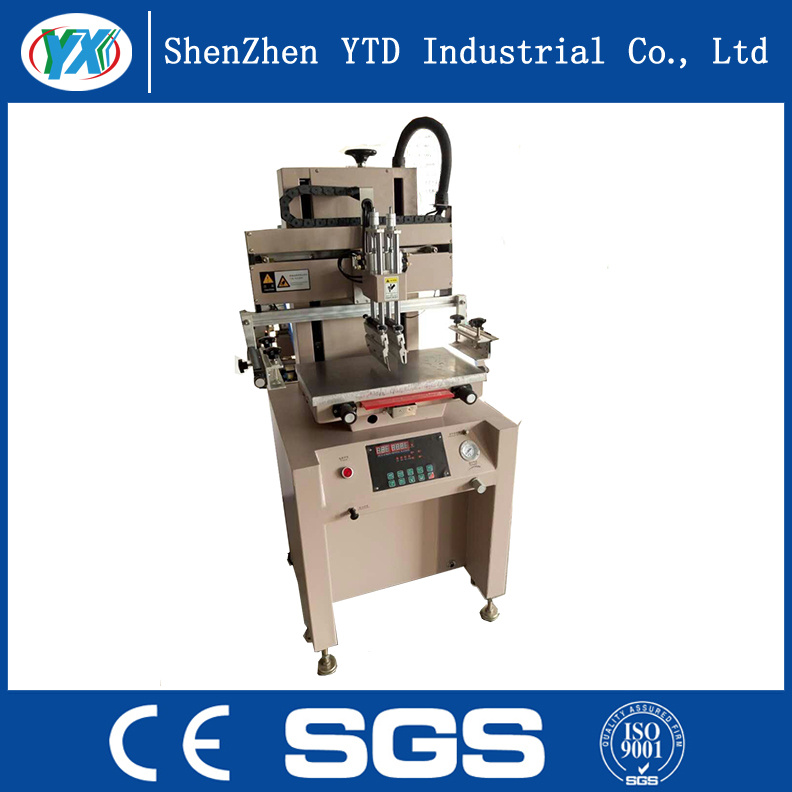

Silk Screen Printing Machine for Mobile Phone Screen Protector
Application:
PCB, Silicon, Textile, PET, Plastic Key, Cardboard, Nameplate, IC board, Trademark, Mobile phone lens, Glass, LCD Display board, PVC, Paper, etc.
Parameters:
| Table Dimension | 400*600mm |
| Max Printing Size | 400*600mm |
| Max Screen Frame | 600*800mm |
| Accuracy | ±0.2mm |
| Scraper angle | 0-45° |
| Power | 220V 50-60MHZ 50W |
| Air Pressure | 0.4-0.6MPA |
| Machine Dimension | 1000*950*1700mm |
| Weight | 240KG |
| Printing Speed | 800pcs/hour |
Features:
1. Printer head adopts Taiwan motor and HIWIN screw liner guide , it is of high precision and high stability.

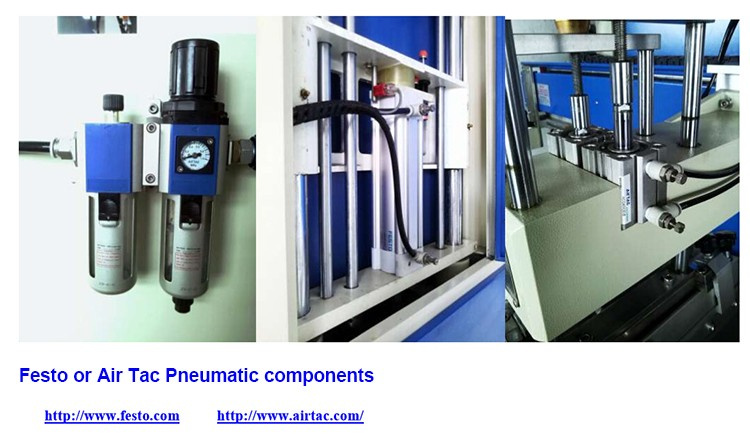

2. Use AirTac pneumatic components.
3. Tool rest adopts HIWIN double guide rail, performance is stable.
4. Longitudinal movement adopts short lifting model to lift tool in short distance, thus reduce movement time.
5. Turn plate adopts Taiwan high precision divider, turn plate precision is ±0.1mm.
6. Stable printing, low vibration, high precision, accurate overprinting.
7. Three models, manual operation, semi-automatic operation, full-automatic operation, printing time can be digital controlled.
Performance:
1. Omron PLC control system and Taiwan Shilin transducer Compiling program together, Taiwan Yangming proximity switch.
2. Different Printing circulation, different visible printing technology for option.
3. High intensity steel body, cast platform, metal dusting surface.
4. Two cylinder lifting structure, high precision and performance.
5. Scraper equipped with constant pressure device to ensure stable pressure while printing.
6. Scraper angle is adjustable.
7. High precision fine tuning worktable, equipped with self-lock device. Precision up to 0.1mm.
8. Screen frame can be adjusted front and back, right and left.
9. Printing head can be raised, convenient to install and uninstall screen plate.
10. High precision and extreme hardness working table, even suction holes, strong vacuum adsorption, ensure precise multi color overprinting.
11. Working table equipped with scramming device prevent from hurting hands.
Packaging: Wood Case
What can YTD do for you?
YTD provide strong technology support for building screen protector plant.
YTD can provide you a whole production line for tempered glass screen protector and solutions as per your capacity.
YTD is your professinal consultant, you could consult us about materials, technology, production scheme, etc.
After-Sales Service
1. Free technical support, machine installment, machine operation and trouble shooting method.
2. Control system upgrade, motherboard upgrade, and related functions upgrade.
3. Supply free spare parts during warranty period.
4. One year warranty, except for artificial damage and wear parts.
5. 24 hours telephone technical support.
About us:
Shenzhen YTD Industrial Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine.
We can supply complete tempered glass screen protector production line, such as glass cutting machine, polishing machine, engraving machine, tempering furnace and coating machine, etc.
We can send engineers overseas to install machines and train workers to help you build your plant.
Tell us what you need, machines, raw materials, technology, solutions, good after sales service?
Come to us, we have a professional team with rich experience to help you.
Quality policy: quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.
Excellent products, credibility first, win-win cooperation----- YTD will always be your most sincere partner.
FAQ
1. What is your lead time?
3 to 4 weeks
2. What is your payment term?
Negotiable.
3. How long is your guarantee?
Usually a year
4. Can I visit your factory?
We welcome you to visit our factory and we will pick you up from Airport in Shenzhen
5. What is the customs duty.
It depends on your local customs policy, we can write either pratical amount or lesser amount on the invoive as per your request to help you reduce payment of customs duty.
